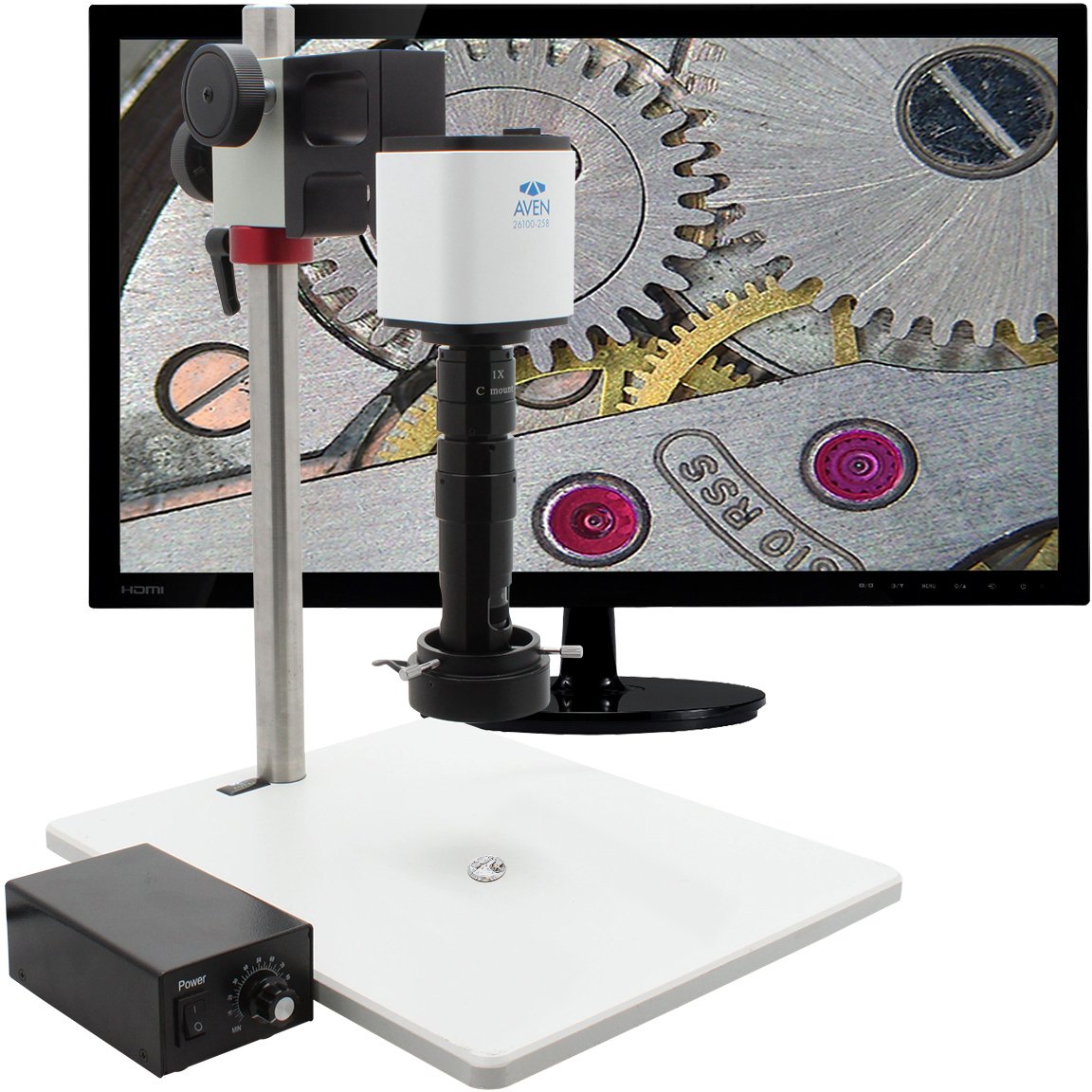

Aven Tools 26700-109-PRO – Digital Microscope Mighty Cam Pro with Standard Stand

• 57.6x – 384x (28.8x – 192x when using the 0.5x objective lens)
• Sharp 1080p Full HD image
• Capture high resolution image/video files directly to the included SD card, with no need for an external recording device.
• USB Output connects Mighty Cam ES to your PC
• Advanced software included

High definition 1080P inspection system with a 22″ monitor offering superb image quality at 60 frames per second. Magnification range: 28.8x – 384x. You can operate this system with or without a PC. Without a PC camera connects directly to the included HDMI monitor. View and record images using the included on screen tools. Images & videos can be saved to the included SD card. Connect the camera to a PC to utilize more advance features in the included software. The included LED ring light allows you to illuminate the object to get the sharpest and greatest detail.

Magnification range: 57.6x – 384x (28.8x – 192x when using the 0.5x objective lens)

Field of view: 16mm – 1.8mm at a 3″ working distance

The advanced sensor technology of the Mighty Cam Pro provides instant focus making routine inspection faster and easier. The user can choose from continuous auto-focus, one-click auto focus or manual focus. By clicking any area of interest on the screen the camera will automatically focus within a fraction of a second without manually adjusting the lens or focus block

NO COMPUTER REQUIRED

The Mighty ES is designed to be an advanced camera while also being user friendly and convenient. The HDMI mode provides features that typically require operators to connect their camera to a computer.

• Save image/video files directly to an SD card
• Calibrate and execute accurate on-screen measurements
• Write on-screen notes and save them as image files
• Use different measurement units including inches, mm, cm, and more
• Line and shape measurement tools
• Angle measurement
• Grid overlays
• Image review
• And More

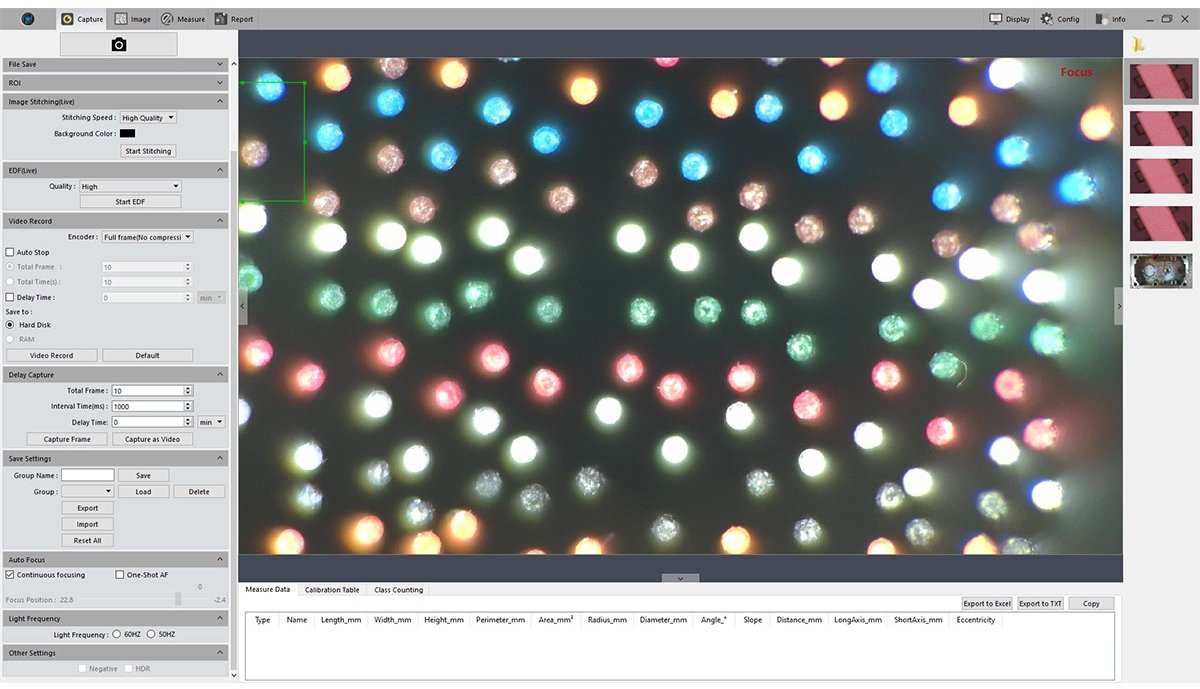

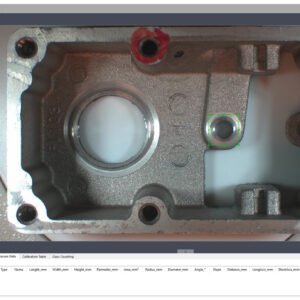

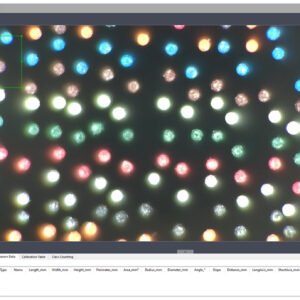

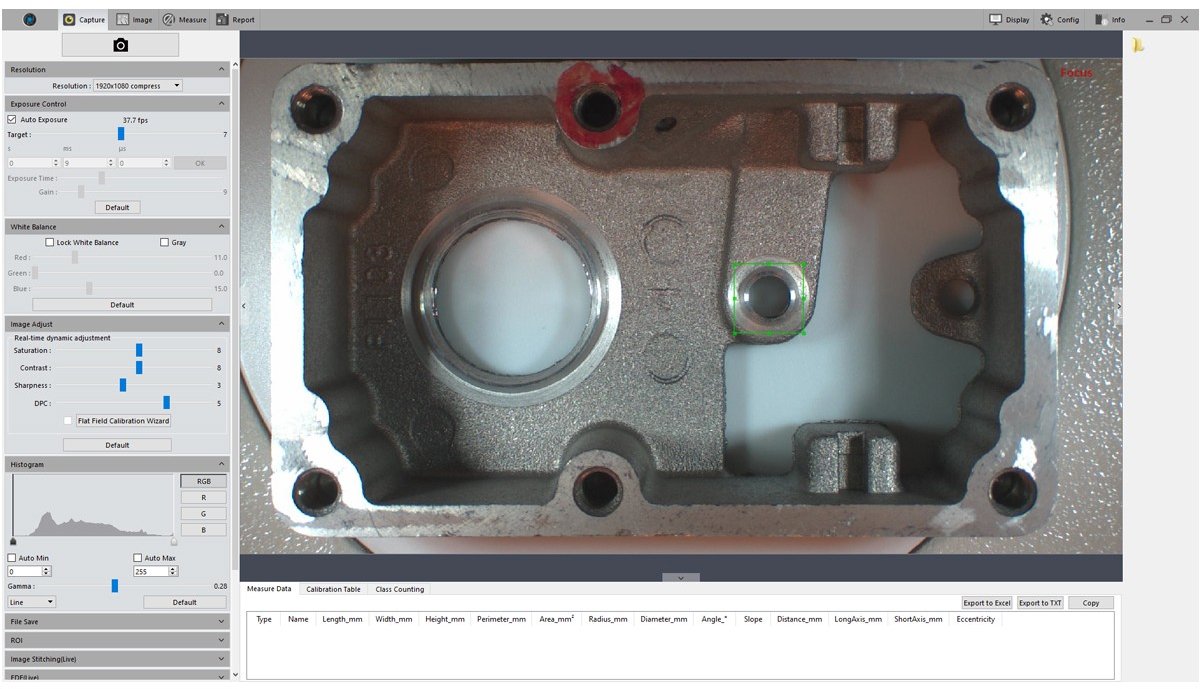

The Mighty Cam ES also features a USB output for computer connectivity. The included software package features advanced capabilities exclusive to USB mode

Photo Stitching Mode – create large panoramic images by “stitching” them together.  The advance software detects and continuously builds an image as an object is moved beneath the camera’s lens.  For best results, it is recommended that operators use a gliding stage when using this mode. 

Depth of Field Detection – Create images where the entire object is in focus

Image Capture – Save high-resolution image/video files to your PC

Measurement Tools – Calibrate and execute accurate measurements with a large selection of line, shape, angle, and grid tools.

Aven’s Micro Lens System produces crisp and clear images that are distortion free and void of chromatic aberration. This lens system comes with detents which allows you to calibrate the lens for measurement repeatability. Comes standard with 1x C mount coupler and 1x objective lens. Total magnification is 0.6x to 4.0x, Field of View is 6 x 8mm at low magnification and 0.8 x 1.2mm at high magnification. Working Distance is 82mm. Additional couplers and objective lenses are available to help you configure a lens system to meet your application. See optical specification chart for more details.

This heavy duty stand is perfect for applications where horizontal extension is limited. Large base 279 x 330 x 12.7mm to accommodate a large variety of parts. Vertical post will accept focus mount SCW-PA to which bodies SSZ, SPZ series, DSZ series and NSW series can be mounted. Post diameter is 25mm.

• Aluminum powder coated base
• All metal construction
• UNC bolt and safety clamp included

Compact source of LED lighting with a fully adjustable high resolution dimmer that provides uniformity and shadow free illumination. Consists of 96 LED lights that do not heat or flicker. Adapter may be required to mount a micro video lens. Opening 50mm with 3 thumb screws for mounting

FEATURES

• 96 High Intensity LED Lights
• Continuous Brightness Control
• Flicker Free
• No color change with temperature
• Energy saving

• 1080p Full HD Imaging at 60 FPS
• USB output connects to PC
• On-screen measurement tools for use in HDMI mode
• Advanced imaging/measurement software included
• Instant auto focus
• Enhances productivity – eliminates eye strain and body fatigue
• Save high resolution image/video files directly to SD card

APPLICATIONS

• Precision assembly applications

  Quality control

  Production applications

  Electrical inspection

  Medical device inspection

  Aerospace

  Educational applications

  Research and Development
