Aven Tools 26700-118 – Macro Vue Eidos Video Inspection System With Gliding Boom Stand

• Improve inspection quality, reduce eye strain and fatigue
• Space-saving standard stand with focus mount
• Top-mounted adjustable Mighty Cam Eidos integrated 2M Camera / 11.6″; Monitor
• Wide range zoom lens with adjustable iris, zoom and focus
• 1080p color camera, 60 FPS with integrated software / USB image capture

Aven’s Macro Vue Eidos is a stand-alone inspection system offering a magnification range of 7x to 70x on a 11.6″ Ultra Sharp Monitor Reduce neck fatigue and eye strain while increasing productivity. Includes:

Mighy Cam Eidos camera 11.6″ integrated HD monitor and 5M inspection camera

Ultra-Glide Boom Stand

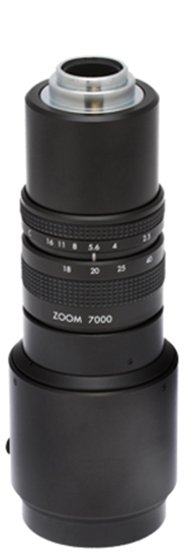

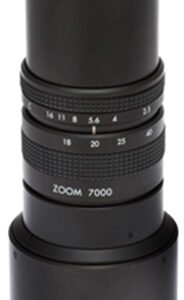

Macro-Zoom Lens

LED ring light with 60 LEDs

E-Arm Focus Mount

7x to 70x magnification at a 6 inch working distance

Field of View: 70.1mm – 7.3mm(D) 56.4mm – 5.9mm(H) 42.4mm – 4.4mm(V)

Wireless mouse for on-screen menu access

Built-in measurement software – no computer required

Wide zoom range for general inspection and analysis. For optical data, review the Magnification Tables. 7x to 70x magnification

ELIMINATES BODY FATIGUE AND EYE STRAIN

Aven’s Mighty Cam Eidos 5 mega-pixel camera with a built in 11.6-inch screen can be attached to a trinocular microscope or video lens with a C or CS mount. The camera features a 5M Sony sensor that provides stunning high-quality images for you to view on the built in 11.6” HD monitor. This eliminates the eye strain and body fatigue associated with frequent optical microscope use.

NO COMPUTER REQUIRED

Save high-resolution image and video files directly to USB storage, with no need for a PC for image processing.

The monitor is can be tilted to the ideal angle for optimal viewing.

The Eidos features an HDMI output designed to connect to an external monitor. This allows operators to view live images on the built-in monitor, as well as an external monitor

The included computational imaging software provides users with more functions such as:

• Callibration editor
• Radius measurement
• 2 point circle
• 3 point circle
• Crosshair
• Line measurement tool
• Center distance
• Concentric circle tool
• Annotation tool
• Screen shot tool

• All-in-one, compact system
• 1080p Full HD Imaging at 60 FPS
• HDMI Output for additional monitor viewing
• Built-in measurement software – No PC required
• Enhances productivity – eliminates eye strain and body fatigue
• Long working distance
• 11.6″ built-in HD monitor
• Save high resolution image/video files directly to USB Storage card
• 1080p Full HD Output
• Monitor can be tilted to the optimal viewing angle

APPLICATIONS

• Precision assembly applications

• Quality control
• Production applications
• Electrical inspection
• Medical device inspection
• Aerospace
• Educational applications
• Research and Development
