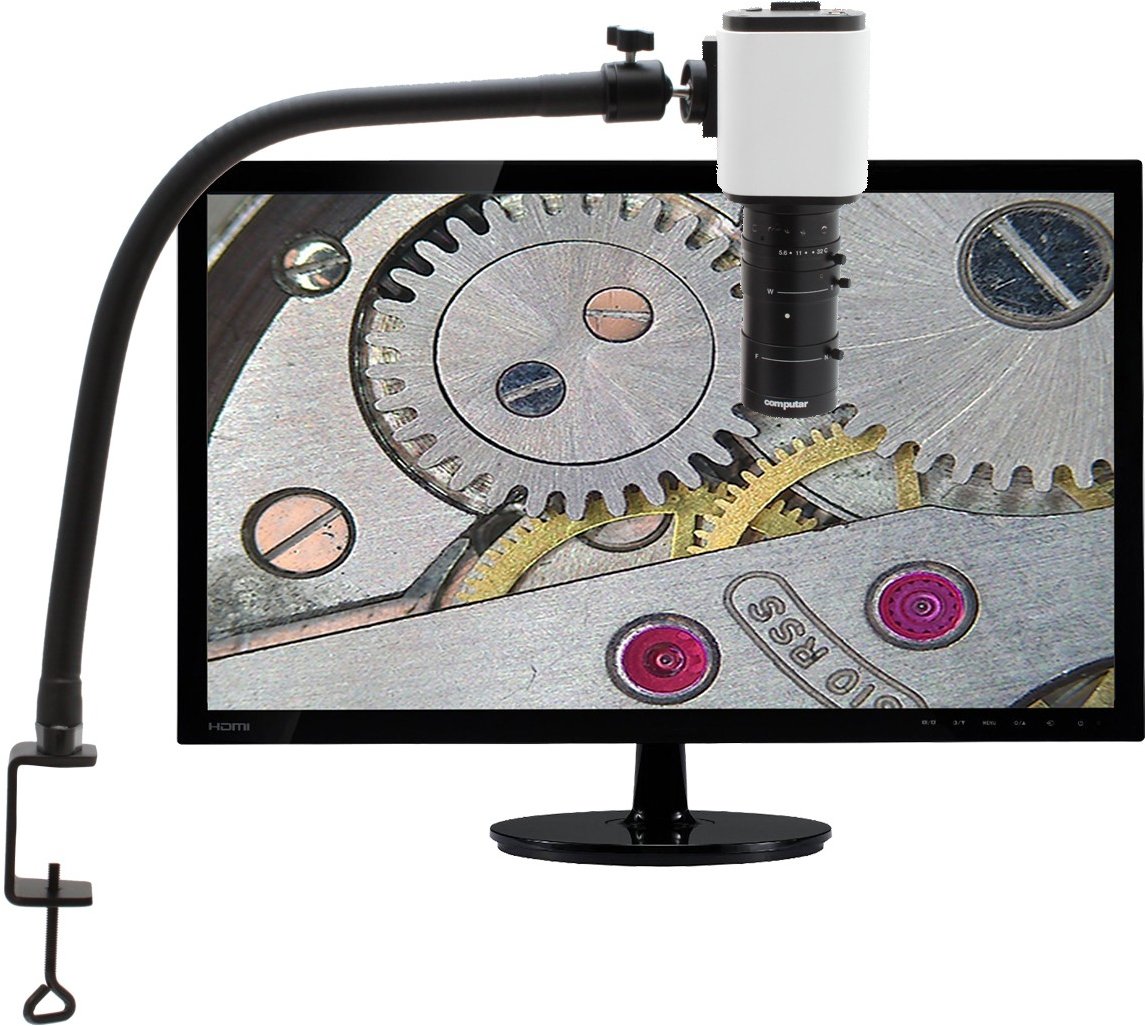

Aven Tools 26700-121-PRO – Digital Microscope Mighty Cam Pro AutoFlex with Flex Stand

• Superior optics: 7x-70x magnification at a 6 inch working distance
• Achieve instant auto focus – no need to adjust the focus of the lens
• Ultimate flexibility: 18 inch flexible arm with a 360 ball joint provides limitless positioning options
• Crystal clear viewing: 22 inch 1080p monitor
• No computer required for image processing

High definition 1080P auto focus inspection system with a 22″ monitor offering superb image quality at 60 frames per second. Working distance 6″ with magnification range of 7x-70x. You can operate this system with or without a PC. Without a PC camera connects directly to the included HDMI monitor. View and record images and perform measurements using the included on screen tools. Images & videos can be saved to the included SD card. Connect the camera to a PC to utilize more advance features in the included software. The included LED ring light allows you to illuminate the object to get the sharpest and greatest detail.

AN UNPRECEDENTED HIGH-SPEED FOCUSING EXPERIENCE

The heart of this system is our Mighty Cam Pro auto focus camera. It offers both continuous and single-shot auto focus modes helping you increase your productivity. The camera also supports mouse wheel control for fine tuning. Data transfer up to 60 frames per second enables users to get clear images with ease.

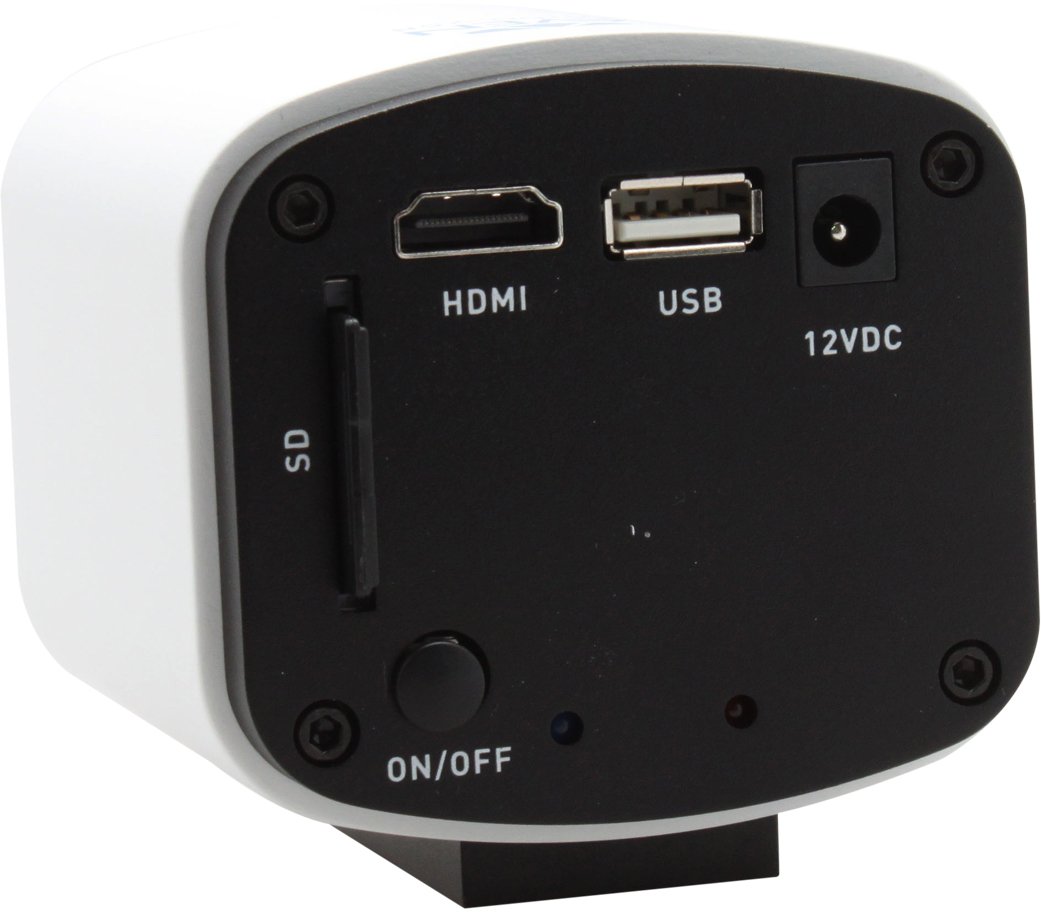

The Mighty Cam Pro features dual outputs – USB and HDMI – for use with a PC or an HD monitor

Camera’s color processing is capable of a new level of precision producing extremely high color definition

NO PC REQUIRED

Built in on screen tools provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and much more. Three different length units of millimeter, centimeter and micrometer are provided to meet various measurement requirements in different applications. Simple calibration tool is also included.

FEATURES

The included computational imaging software provides users with more functions such as:

• Auto focus fine tuning
• Intelligent capture and processing
• Efficient measurement and attribute editing
• Reporting

Utilizing the Mosaic software package, operators can generate large panoramic images. Simply glide an object under the camera and the advanced software will stitch together images into one larger image.

The Mighty Cam Pro can change the depth of field without adjusting the optics. Simply click on the part of the image you want to focus on and the camera will bring that sector into focus.

The macro lens included with this system offers unsurpassed clarity and parfocal zoom capabilities. Provides manual adjustment of focal length, iris and focus. Lens has a C-mount and working distance of 6″ to 18″

18″ Flexible Arm Stands are a hassle-free addition to your inspection system. The arm easily bends and stays put in any position. Tilt, rotate, and position as needed.

Compact source of LED lighting with a fully adjustable high resolution dimmer that provides uniformity and shadow free illumination. Consists of 96 LED lights that do not heat or flicker. Adapter may be required to mount a micro video lens. Opening 50mm with 3 thumb screws for mounting

FEATURES

• 96 High Intensity LED Lights
• Continuous Brightness Control
• Flicker Free
• No color change with temperature
• Energy saving

Rotate and tilt the camera to the ideal position. Inspect from nearly any angle.

Enhance your inspection process with this optional add-on.

This tilt table is ideal for finding the right angle to inspect from. The table plate is covered with an ESD-Safe material that prevents static damage to the object you are inspecting and also keeps it in place. Includes a metal height adjustment base.

• 1080p Full HD Imaging at 60 FPS
• USB output connects to PC
• Built-in measurement software – No PC required
• Advanced measurement software included for computer connectivity
• Achieve instant auto focus
• Enhances productivity – eliminates eye strain and body fatigue
• Long working distance
• 22″ HD Monitor Included
• Save high resolution image/video files directly to SD card
• 1080p Full HD Output
• Includes a ball joint mount for 360 degree camera rotation.

APPLICATIONS

• Precision assembly applications

• Quality control
• Production applications
• Electrical inspection
• Medical device inspection
• Aerospace
• Educational applications
• Research and Development
