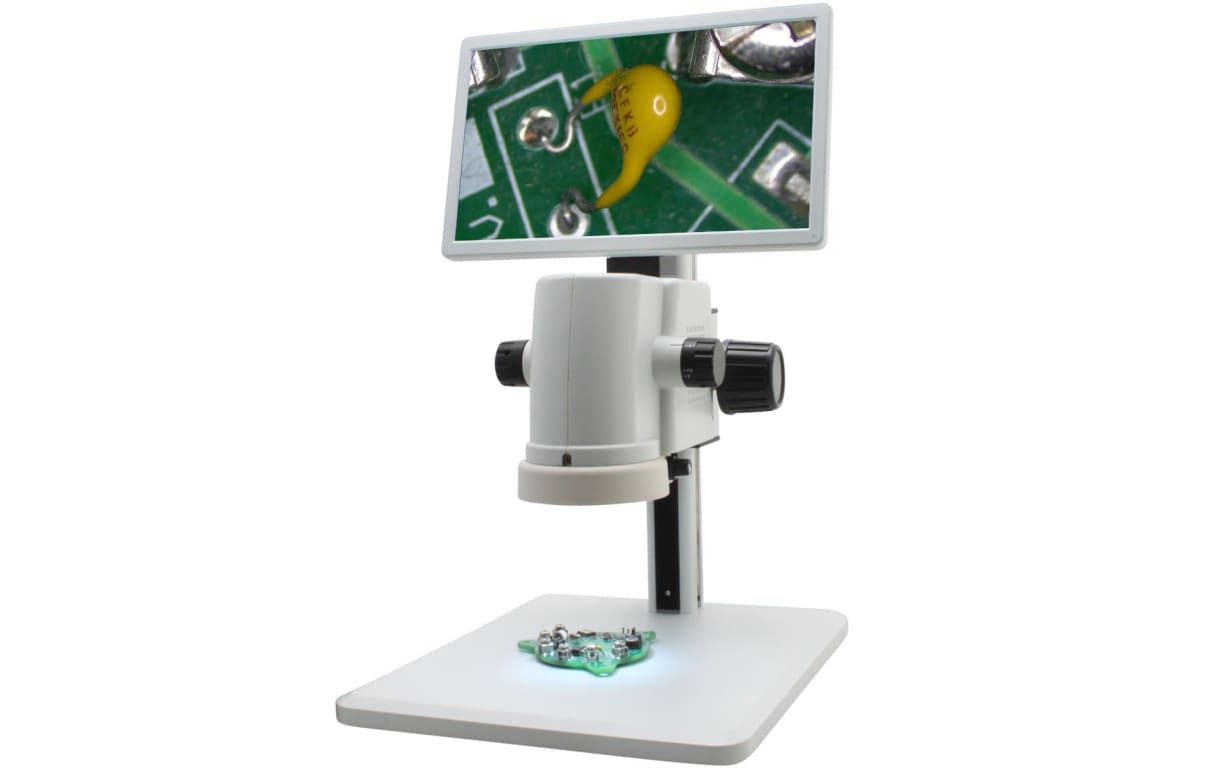

Aven Tools 26700-140 – MicroVue Digital Microscope with Built-In HD Monitor (17x – 110x)

• Built-in 11.6″ monitor for ergonomic viewing
• 17x-110x magnification on the built-in monitor (with optional lenses)
• HDMI output for external monitor viewing
• Built-in measurement capabilities
• Save image/video files to USB storage device

Aven’s MicroVue™ Digital Microscope is an all-in-one inspection system.The MicroVue™ offers a magnification range of 17x – 110x on it’s built- in 11.6″ monitor and 8.6x to 221x with optional lenses

8.6X TO 221X MAGNIFICATION RANGE WITH OPTIONAL LENSES

The MicroVue has all the features required for digital inspection. View live images, capture high resolution images and video files, make text annotations, make accurate measurements with the built in software, and more – all done without the need for an external PC

Inspecting objects on the built in monitor offers an ergonomic inspection process, significantly reducing the eye strain and body fatigue often associated with frequent optical microscope use.

LARGE MAGNIFICATION RANGE

MicroVue™ offers a magnification range of 17x – 110x on its built- in 11.6″ monitor without use of the optional lenses.

Using the 0.5x lens the magnification range can be changed to 8.6x to 55x with the 0.5x lens and 34x to 220x with the 2x lens

OPTIONAL OBJECTIVE LENSES (SOLD SEPARATELY)

• The 2.0x and 0.5x lenses are available to enhance the versatility of the MicroVue™.
• The 0.5x lens is designed to increase working distance, as well as increase the field of view on the screen for additional viewing area.
• The 2.0x lens increases the magnification range to 34.4x-221x.
• These lenses easily attach to the standard MicroVue lens.

BUILT-IN HD MONITOR

The built-in HD Monitor provides crystal-clear 1080p full HD resolution at 60FPS. This monitor is placed at eye-level at the top of the stand, ideal for ergonomic inspection

MONITOR TILT

The monitor is can be tilted to the ideal angle for optimal viewing.

HDMI OUTPUT

The MicroVue features an HDMI output designed to connect to an external monitor. This allows operators to view live images on the built-in monitor, as well as on an external monitor.

USB IMAGE CAPTURE – NO PC REQUIRED

Capture high resolution image/video files directly to a USB storage device with no need for a computer to process the image compression.

BUILT-IN MEASUREMENT TOOLS

The included computational imaging software provides users with more functions such as:

• Calibration editor
• Radius measurement
• 2 point circle
• 3 point circle
• Crosshair
• Line measurement tool
• Center distance
• Concentric circle tool
• Annotation tool
• Screen shot tool

CLICK-STOP-ZOOM

The zoom adjustment knobs are designed with a click-stop feature with indicators to help operators determine an accurate magnification.

BUILT-IN LED RING LIGHT

The built-in LED ring light provides ultra-bright illumination with no need for an external light source. Easily adjust the brightness with the built-in turn dial.

BENEFITS

• Compact All-in-one system
• 8x-221 magnification – 11.6″ monitor (with optional lenses)
• 1080p Full HD Imaging at 60 FPS
• HDMI Output for additional monitor viewing
• Built-in measurement software – No PC required
• Enhances productivity – eliminates eye strain and body fatigue
• Long working distance
• 11.6″ built-in HD monitor
• Save high resolution image/video files directly to USB Storage card
• 1080p Full HD Output
• Monitor can be tilted to the optimal viewing angle

APPLICATIONS

• Precision assembly applications
• Quality control
• Production applications
• Electrical inspection
• Medical device inspection
• Aerospace
• Educational applications
• Research and Development

OPTIONAL FOCUS MOUNT (SOLD SEPARATELY)

The MicroVue Focus Mount is designed to be used with boom stands and articulating arm stands, ideal for scanning over objects. Customize your MicroVue system in the “Build Your System” tab.

OPTIONAL TILT TABLE (SOLD SEPARATELY)

Enhance your inspection process with this optional add-on.

This tilt table is ideal for finding the right angle to inspect from. The table plate is covered with an ESD-Safe material that prevents static damage to the object you are inspecting and also keeps it in place. Includes a metal height adjustment base.
