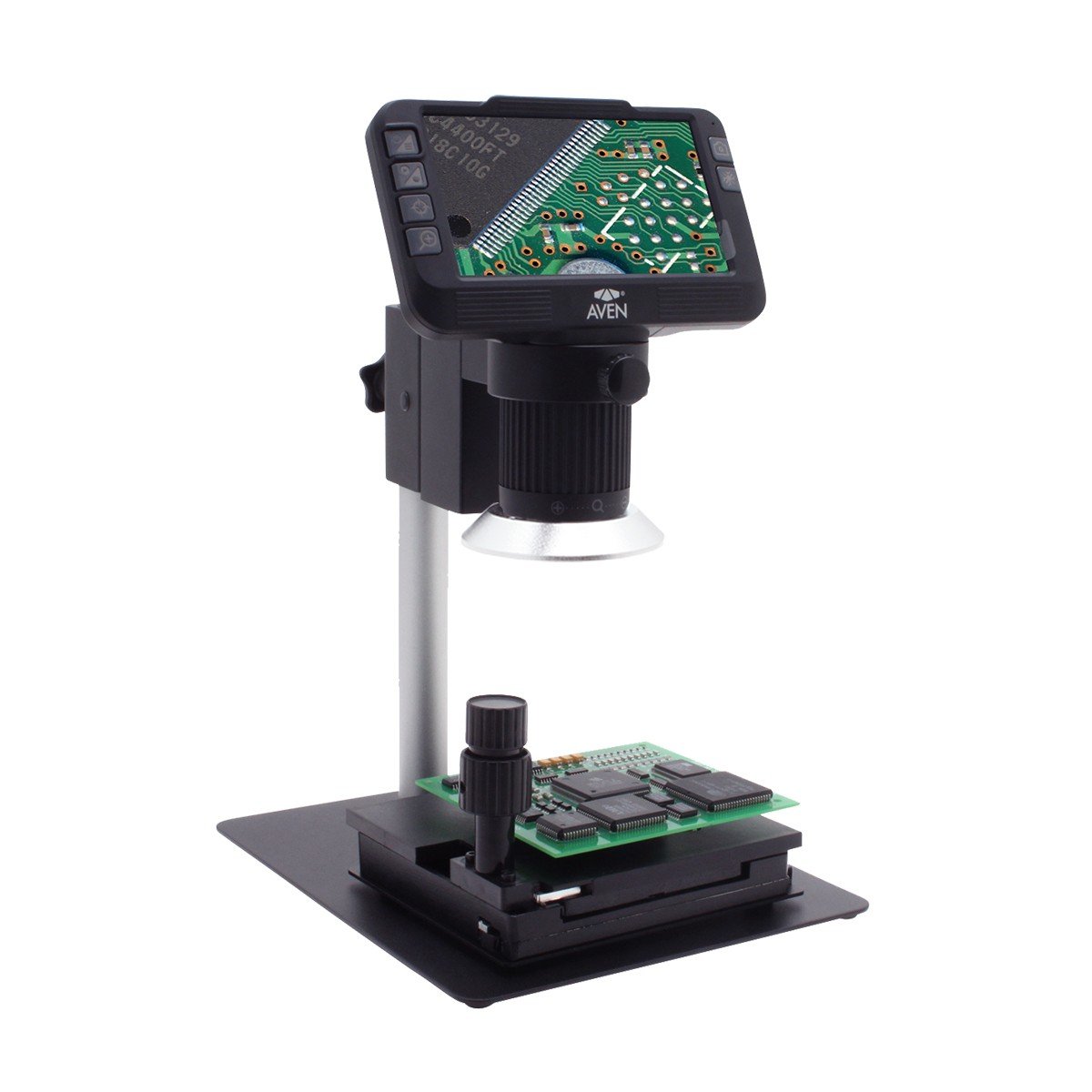

Aven Tools 26700-220-479D – Mighty Scope ClearVue Digital Microscope (8x-25x) with Post Stand, Gliding Stage and Diffuser

• Compact all-in-one system
• Built-in 5-inch high-resolution LED screen
• Magnification range: 8x – 25x
• 1080p Full HD Imaging at 60 FPS
• HDMI output for viewing images on larger screen

The Aven Tools 26700-220-479D is a Mighty Scope ClearVue digital microscope with diffuser and post stand with gliding stage. It is equipped with a 5-inch high-resolution LED screen for comfortable viewing and HDMI output for additional monitor viewing. The included LED ring light provides illumination. The Mighty Scope ClearVue offers a magnification range of 8x – 25x (40x – 120x on 24-inch monitor).

The gliding stage provides horizontal and vertical movement and a rotating base for smooth scanning of objects. The diffuser attachment reduces glare and provides even illumination on shiny and reflective parts. The included snapshot remote makes allows you to capture images with the press of a button. Images and video files can be saved directly to microSD card (16GB card included).

The included rechargeable battery allows you to operate the microscope without a power supply for hours making it suitable for field projects.

Using traditional microscopes for long periods can be exhausting, affecting your eyes and posture. The Mighty Scope ClearVue allows you to work in a comfortable manner without having to look through eyepieces and bending. This means more throughput and efficiency.

The included LED Diffuser is ideal for working with shiny or reflective parts. When in use, the diffuser disperses the light evenly across the object for softer illumination.

Featuring a convenient HDMI output, the Mighty Scope ClearVue can display images on an external HD monitor. This is ideal when additional magnification is required (40x – 120x on 24-inch monitor) or for sharing live images for a demonstration.

The Mighty Scope ClearVue includes a free download of ezImageX3 software. This software is optimized for Aven Mighty Scopes, with all the features needed for professional inspection. (Compatible with Windows 10)

• Image/video capture
• Measurement
• Line, angle and circle drawings
• Grid overlays
• Compare modes
• And more

The Mighty Scope ClearVue can be used as a permanent workstation for applications such as lab work, quality control, educational use, soldering, and more. The rechargeable battery allows for portable use in remote locations where power outlets are not available or where wire management is crucial.

The all-metal construction post stand was designed for durability. Featuring a wide 7.5 x 8-inch base and a 9-inch post, the stand can be adjusted to inspect objects large and small. The focus mount features a fine focus knob for smooth vertical movement.

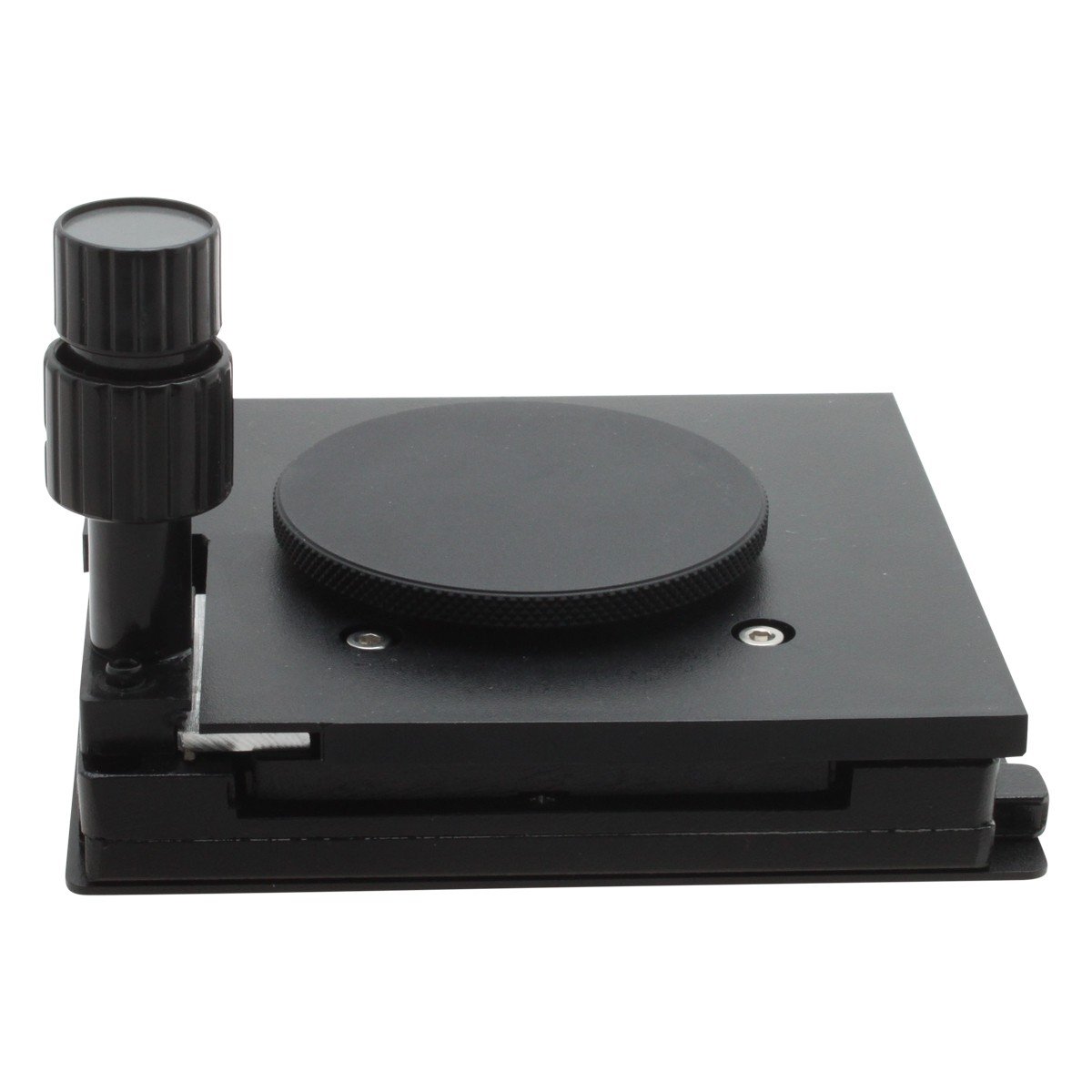

The included gliding stage provides horizontal, vertical and 360 movement. It is ideal for inspecting small parts, microchips, PCB boards, and more. The durable all-metal construction ensures a long working life, with rack and pinion gears for smooth motion.

Aven’s Dual LED Task Light is an excellent source for external illumination. The flexible goosenecks can be positioned where needed for optimal glare reduction and screen color control. The large 4-inch table clamp secures to the side of any work bench or use the dual magnetic bases to mount the device to a metal surface.
