Aven Tools 26700-220-505 – Mighty Scope ClearVue All-in-one Digital Microscope (8x – 25x)

• Compact all-in-one digital microscope with built-in 5-inch color screen
• Post stand with backlight and dual gooseneck LEDs
• 1080p Full HD Imaging at 60 FPS and 1080p Full HD Output
• ezImage X3 software included (download code)
• Rechargeable battery

The Aven Tools 26700-220-505 is a compact all-in-one digital microscope featuring a 5-inch high-resolution LED screen. The Mighty Scope Clear Vue digital microscope has a magnification range of 8x to 25x, 1080p full HD imaging at 60 frames per second, and 1080p full HD output for viewing or demonstrating on a larger monitor.

The scope is mounted to a post stand with dual 14.5-inch LED goosenecks and a back light. The digital microscope has dimmable LED lights, a rechargeable battery, and a 16 gb SD card for saving images. It also includes a snapshot remote. In USB mode you can connect the ClearVue to a PC and with the included ezImageX3 software (download code provided), capture, save and transfer images and videos to your PC, perform measurements, grid overlays, compare images and much more.

Using traditional microscopes for long periods can be exhausting, affecting your eyes and posture. The Mighty Scope ClearVue allows you to work comfortably without having to bend to look through eyepieces, increasing efficiency and productivity.

The Mighty Scope Clear Vue features a convenient HDMI output allowing images to be displayed on an external HD monitor. This is ideal for sharing live images for a demonstration or when additional magnification is required.

The Mighty Scope ClearVue includes a download code for the exclusive software, ezImageX3. The software is optimized for Aven Mighty scopes, providing the features needed for professional inspection such as:

• Image/video capture
• Measurement
• Line, angle, and circle drawings/measurement
• Grid overlays
• Compare modes
• And more

While the Mighty Scope ClearVue can be used as a permanent workstation for applications such as lab work, quality control, educational use, soldering, and more, the built-in rechargeable battery allows for portable use in remote locations where power outlets are not available or where wire management is crucial.

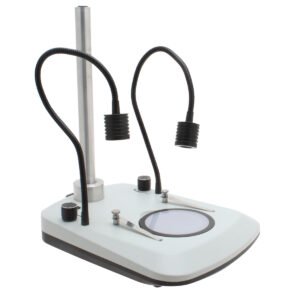

The included stand featuring gooseneck LEDs and an integrated backlight gives users a variety of lighting options. The goosenecks are ideal illumination when reflections from shiny objects need to be eliminated. Due to their flexibility the goosenecks can be positioned to give you ideal illumination for the sample being observed. For transparent objects the included back light is ideal. The goosenecks and the LED back lights can be independently adjusted with the two brightness control knobs at the base of the stand. The stand length is 10-inches, giving users a maximum working distance of 7.6 inches.

1. Power and menu button

2. Record and video playback button

3. Cross line button

4. Zoom in button

5. Power indicator

6. Snapshot and photo playback button

7. Freeze button

8. Screen

9. Focus Knob

10. Cap

11. Memory card slot

12. 18650 battery slot

13. Shutter release connector

14. Dimmer switch

15. Monitor switch

16. USB connector

17. Reset

18. HDMI connector

19. Bracket socket

A. Snapshot zoom button

B. Zoom in button
