Aven Tools 26700-220-MNT – Mighty Scope ClearVue Digital Microscope (8x – 25x) w/Post Stand

• Compact All-in-one system
• 1080p Full HD Imaging at 60 FPS
• HDMI Output for additional monitor viewing
• ezImageX3 software included
• Enhances productivity – eliminates eye strain and body fatigue

The Mighty Scope ClearVue has a built in 5″ high resolution LED screen and offers a magnification range of 8x -25x. The included rechargeable battery allows you to operate the microscope without a power supply for hours thus making it suitable for field projects. You can also connect this microscope to an external monitor via an HDMI output for viewing images on a larger screen. Images can be saved on the included Micro SD card. Can also be mounted onto a variety of stands to suit your application.

Using traditional microscopes for long periods can be exhausting affecting your eyes and posture. The Mighty Scope ClearVue allows you to work in a comfortable manner without having to look through eyepieces and bending. This means more throughput and efficiency.

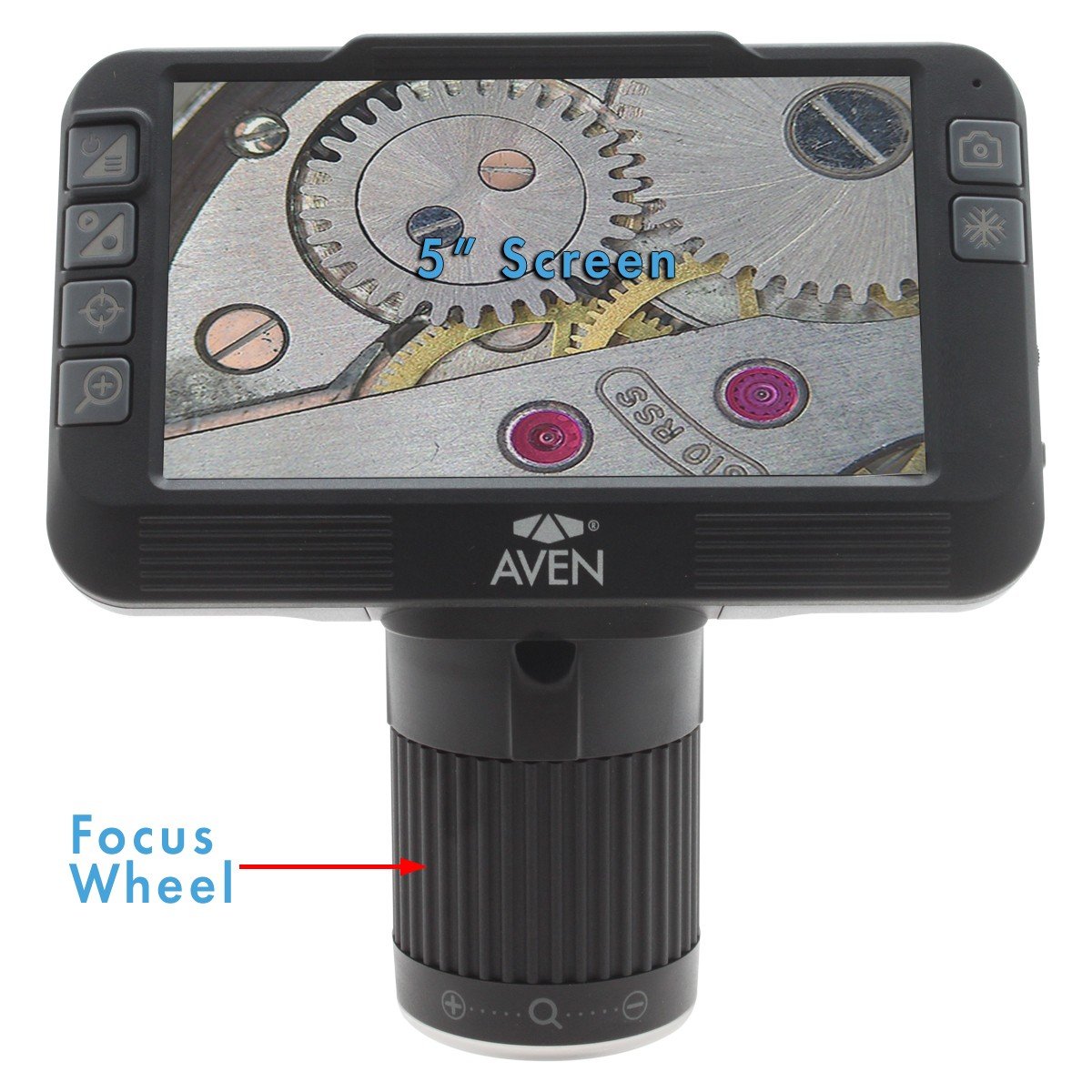

The Mighty Scope ClearVue is an all-in-one digital microscope, a compact solution for digital inspection. Featuring a built-in 5” color LCD screen, the Mighty Scope ClearVue delivers full HD images at a magnification range of 8x – 25x.

Featuring a convenient HDMI output, the Mighty Scope ClearVue can display images on an external HD monitor. This is especially ideal when additional magnification is required, or for sharing live images for a demonstration.

MICROSD CARD

Capture real-time footage or instant images directly to the included microSD card, no computer required.

The Mighty Scope ClearVue includes a free download of our ezImageX3 Software. This exclusive software is optimized for Aven Mighty Scopes, with all the features needed for professional inspection. Compatible with Windows 10.

• Image/video capture
• Measurement
• Line, angle, and circle drawings/measurement
• Grid overlays
• Compare modes
• More

DESIGNED FOR PORTABLE USE

The Mighty Scope ClearVue can be used as a permanent workstation for applications such as lab work, quality control, educational use, soldering, and more. Additionally, the Mighty Scope ClearVue features a built-in rechargeable battery, allowing for portable use in remote locations where power outlets are not available or where wire management is crucial.

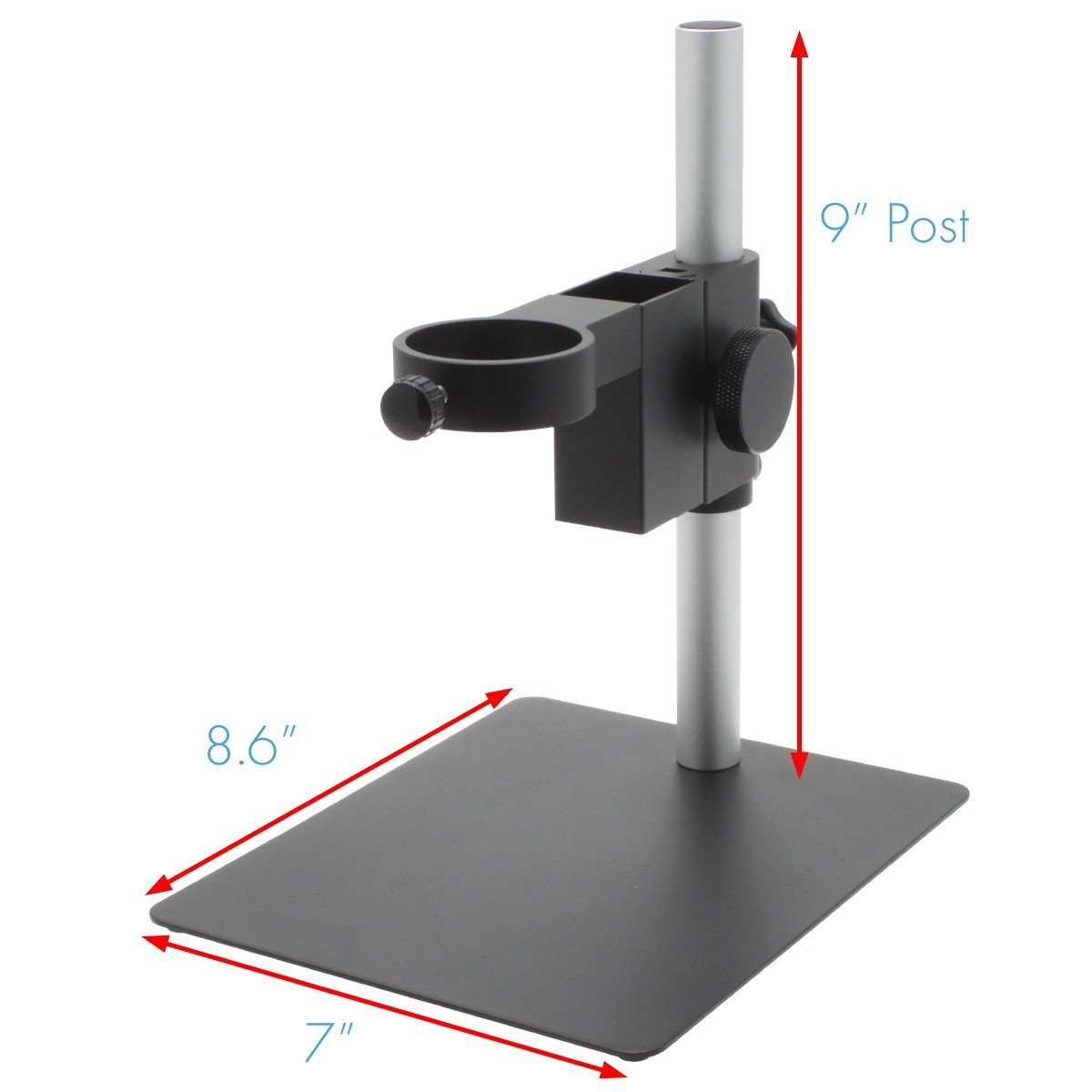

This all-metal construction stand was designed for durability. Featuring a wide 7.5 x 8 inch base and a 9 inch post, this stand can be adjusted to inspect objects large and small. The focus mount features a fine focus knob for smooth vertical movement.

The Mighty Scope ClearVue can be configured with optional stands to increase working distance, flexibility, and to enhance your workspace. Click below to learn more.

• 18″ Flex Arm with Table Clamp
• 18″ Flex Arm with magnetic base
• 34″ Spring Balanced Arm

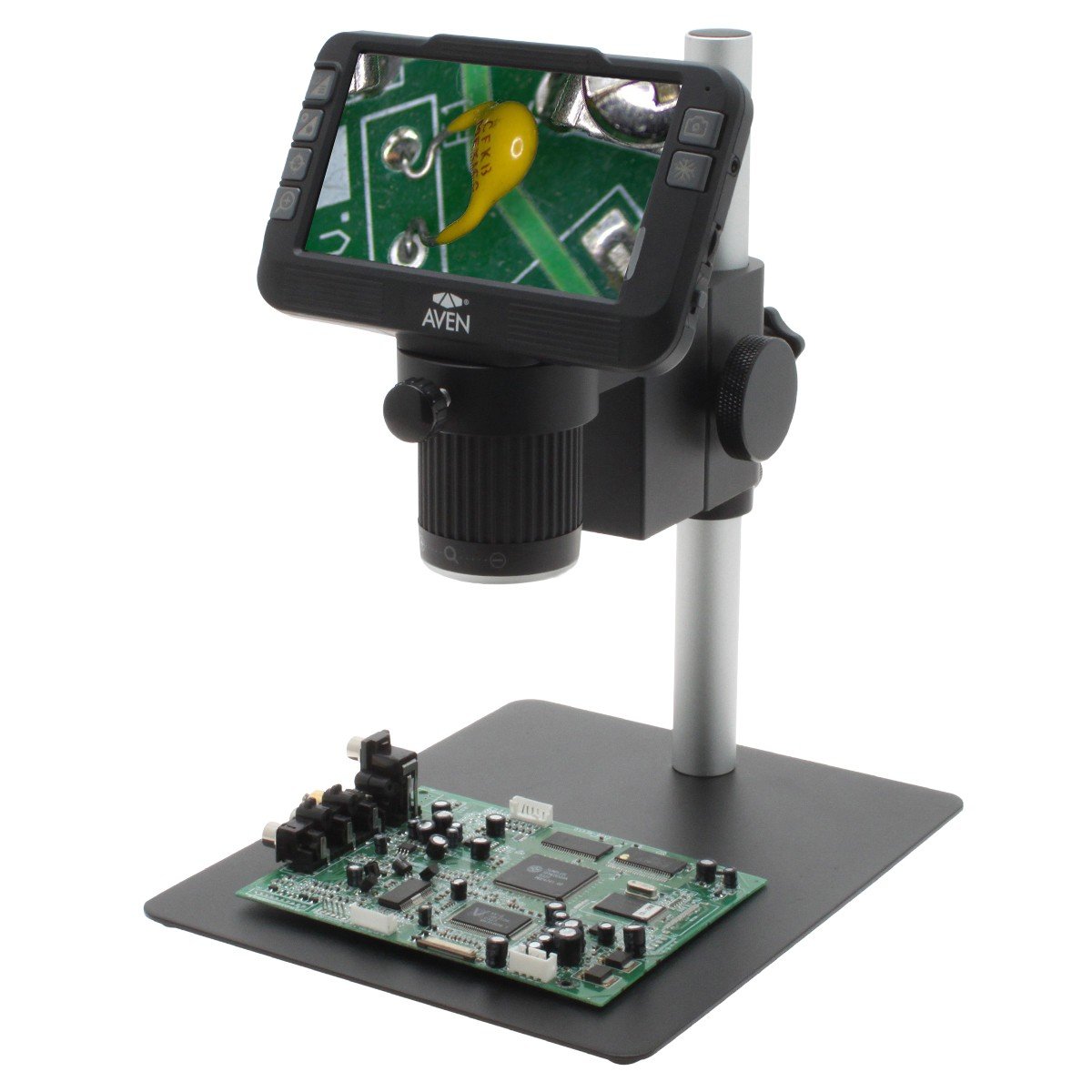

• Mighty Scope ClearVue with Post Stand

Aven’s Dual LED Task Light is an excellent source for external illumination. The flexible goosenecks can be positioned where needed for optimal glare reduction and screen color control. The large 4″ table clamp secures to the side of any work bench, or use the dual magnetic bases to mount the device to a metal surface.

• Precision assembly applications
• Quality control
• Production applications
• Electrical inspection
• Medical device inspection
• Aerospace
• Educational applications
• Research and Development
