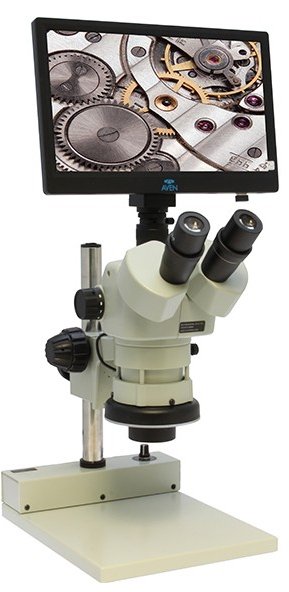

Aven Tools 26800B-355 – Stereo Zoom Trinocular Microscope SPZHT-135

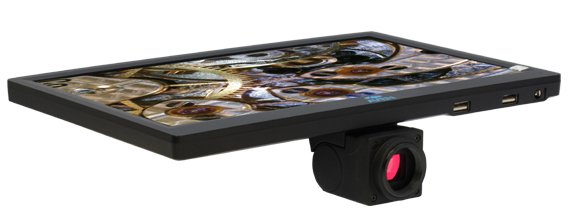

• Convenient 2-in-one camera and monitor system
• Simple cable management
• Crisp HD image

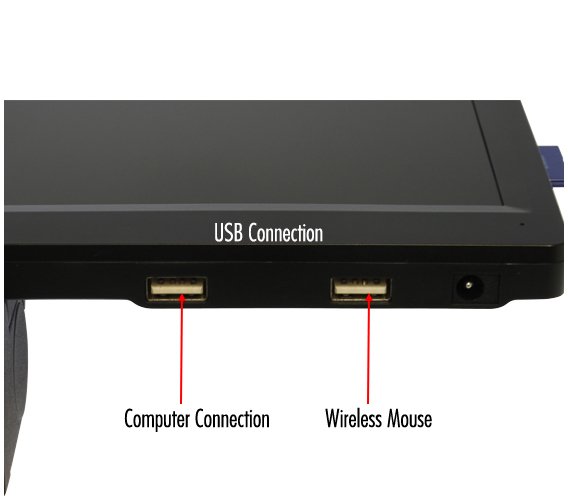

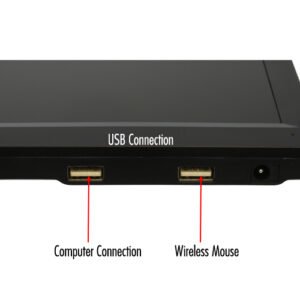

• Built in USB port for instant image/video capture
• USB output for connection to your PC

Aven’s Mighty Cam Eidos is an integrated 11.6″ HD monitor connected to a 5M C-Mount inspection camera. Designed for ergonomic inspection, the Eidos eases the eyestrain and body fatigue associated with frequent microscope use.

SPZHT-135 microscope provides crisp clear 3D images and a wide field of view. 21x to 135x continuous zoom with 10x eyepieces, or 40x to 258x magnification when viewing on the Mighty Cam Eidos monitor.

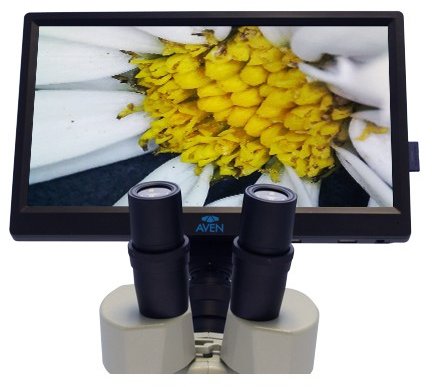

OSHA has found that working with microscopes for long hours is straining both to the visual system and the musculoskeletal system. Operators are forced into an unusual exacting position with little possibility to move the head or body. They are often forced to assume an awkward work posture such as the head bent over the eye tubes, upper part of the body bent forward, the hand reach high up for a focusing control or with the wrist bent in an unnatural position. The Eidos microscope system is designed to overcome these issues. The 11.6″ HD monitor with the built in 2 mega pixel HD camera is mounted at eye level allowing operators to sit comfortably in a good working position, making the inspection process less tiresome. The microscope can still be used when required providing the operator the best of both worlds

SPZHT-135 STEREO ZOOM MICROSCOPE

The ideal scope for a wide range of investigative/inspection applications, Aven’s dynamic new microscope SPZH-135 extends the boundaries of stereo zoom microscopy, employing standard 15X eyepieces to achieve 21x to 135x continuous zoom magnification all the while providing a continuous working distance of 3.3” (84mm). Replacing the standard 15X eyepieces with our DHW20X eyepieces enhances the magnification range of this dynamic new microscope further – 28X to 180X. Having eyepieces set at a 45 degree angle, the adjustable interpupillary distance between eyepieces of 1.96” (50mm) to 2.91” (74mm) means they can be set to the comfort level of any user.

ELIMINATES BODY FATIGUE AND EYE STRAIN

Aven’s Mighty Cam Eidos 5 mega-pixel camera with a built in 11.6-inch screen can be attached to a trinocular microscope or video lens with a C or CS mount. The camera features a 5M Sony sensor that provides stunning high-quality images for you to view on the built in 11.6” HD monitor. This eliminates the eye strain and body fatigue associated with frequent optical microscope use.

NO COMPUTER REQUIRED

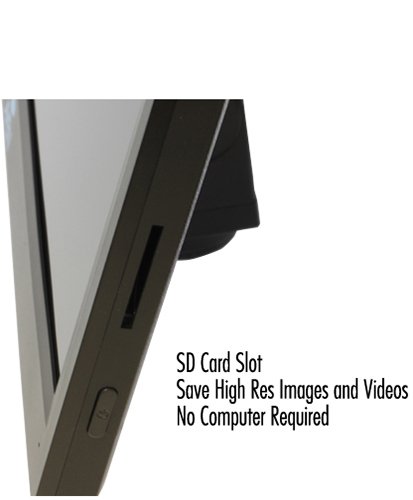

Save high-resolution image and video files directly to USB storage, with no need for a PC for image processing.

FOR USE WITH MICROSCOPES AND VIDEO LENSES

Featuring a universal C-Mount, the Eidos is compatible with industry-standard trinocular microscopes and video lenses. Contact us for help desigining your own custom digital microscope

The monitor is can be tilted to the ideal angle for optimal viewing.

The Eidos features an HDMI output designed to connect to an external monitor. This allows operators to view live images on the built-in monitor, as well as an external monitor

The included computational imaging software provides users with more functions such as:

• Callibration editor
• Radius measurement
• 2 point circle
• 3 point circle
• Crosshair
• Line measurement tool
• Center distance
• Concentric circle tool
• Annotation tool
• Screen shot tool

• All-in-one, compact system
• 1080p Full HD Imaging at 60 FPS
• HDMI Output for additional monitor viewing
• Built-in measurement software – No PC required
• Enhances productivity – eliminates eye strain and body fatigue
• Long working distance
• 11.6″ built-in HD monitor
• Save high resolution image/video files directly to USB Storage card
• 1080p Full HD Output
• Monitor can be tilted to the optimal viewing angle

• Precision assembly applications
• Quality control
• Production applications
• Electrical inspection
• Medical device inspection
• Aerospace
• Educational applications
• Research and Development
