Aven Tools 26800B-373-11 – Stereo Zoom Binocular Microscope SPZH-135 (21x-135x) on Ultra Glide Boom Stand with LED FOI

• Total Magnification of 21X to 135X at 3.3” (84mm) working distance, Max 180X with 20X eyepieces
• Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes
• Adjustable Interpupillary Distance of 1.96” (50mm) to 2.91” (74MM) accommodates any operator
• Multi coated optical components, free from chromatic and spherical aberration

The ideal inspection system for viewing parts with a large surface area. Featuring Aven’s Ultra-Glide Boom Stand, operators can smoothly glide the boom along it’s 23 inch reach. This system also includes Aven’s SPZH-135 Stereo Zoom Microscope with 10x eyepieces (21x–135x magnification) and Fiber Optic Illuminator (FOI). The FOI system is fanless, designed to reduce distracting noise.

MAGNIFICATION RANGE: 21X-135X

Aven’s Ultra-Glide Boom Stand System is ideal for inspecting parts over a large surface area. The ultra-glide boom stand provides smooth motion along it’s 23″ arm, allowing for easy scanning. The stand features a 13.5 inch post with a safety collar, and a heavy 10.5 x 15 inch base. This system features Aven’s SPZH-135 Stereo Zoom Microscope. This microscope offers the best in class zoom ratio (7.46:1) with super sharp 3D images, wide field of view (1.35″ to 0.14″) and long working distance (4.25″). These components make this system an ideal choice for high throughput inspection stations and engineering and science labs.

SPZH-135 STEREO ZOOM MICROSCOPE

The ideal scope for a wide range of investigative/inspection applications, Aven’s dynamic new microscope SPZH-135 extends the boundaries of stereo zoom microscopy, employing standard 15X eyepieces to achieve 21x to 135x continuous zoom magnification all the while providing a continuous working distance of 3.3” (84mm). Replacing the standard 15X eyepieces with our DHW20X eyepieces enhances the magnification range of this dynamic new microscope further – 28X to 180X. Having eyepieces set at a 45 degree angle, the adjustable interpupillary distance between eyepieces of 1.96” (50mm) to 2.91” (74mm) means they can be set to the comfort level of any user.

• Total Magnification of 21X to 135X at 3.3” (84mm) working distance, Max 180X with 20X eyepieces
• Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes
• Adjustable Interpupillary Distance of 1.96” (50mm) to 2.91” (74MM) accommodates any operator
• Multi coated optical components, free from chromatic and spherical aberration

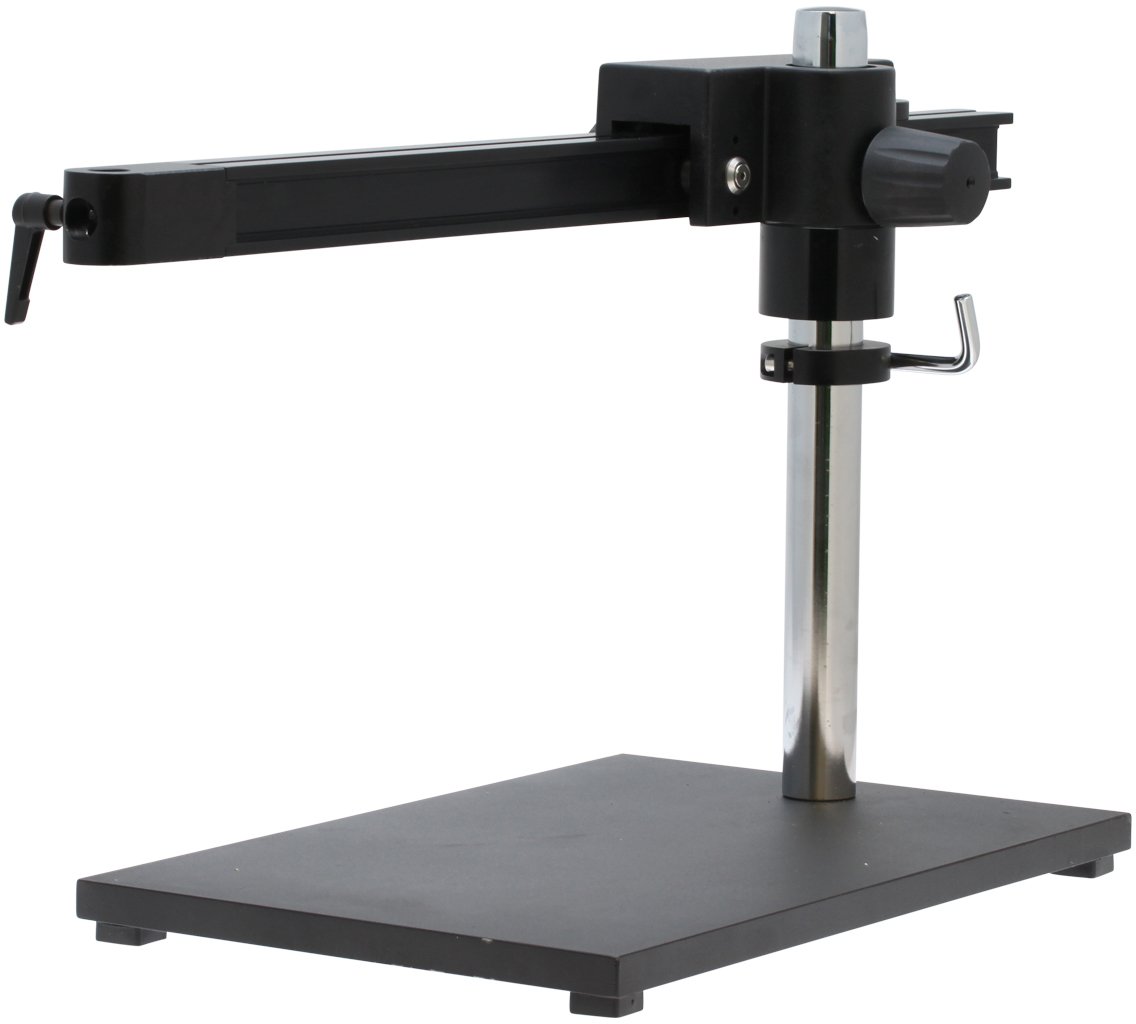

ULTRA-GLIDE BOOM STAND

SMOOTH GLIDING MOTION

Smooth motion of the gliding arm allows the microscope to easily scan across the subject. Features two locking knobs to adjust the horizontal and vertical position of the gliding arm. A heavy metal base provides excellent stability and a safety collar on the support post provides added protection for your inspection system.

• 23 inch gliding arm provides smooth horizontal movement
• Allows positioning of microscopes over large area
• Heavy duty all metal construction
• 13.5 inch post with safety collar
• Heavy 15 x 10.5 inch base assures stability and space

FOI ILLUMINATOR

Aven’s 26200A-310 Fiber Optic Illuminator is compatible with most fiber optic cables and guides. A versatile illumination source, this device easily adapts to your specific application. Users can choose from single and dual pipe guides, as well as annular ring lights and much more. The 26200A-310 contains a 24 watt LED lamp, outputs a color temperature of 5600K, and has an expected lamp life of 10,000 hours.
