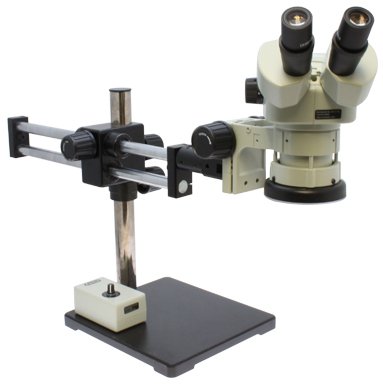

Aven Tools 26800B-373-6 – Stereo Zoom Binocular Microscope with Double Arm Boom Stand and LED Illumination

• 22.5″ total reach
• All metal construction
• Ideal for use when large objects are to be viewed
• Large zoom ratio 7.46:1- best zoom ratio in class
• Field of View 34.3mm to 3.6mm (1.35″ to 0.14″)

The ideal inspection system for viewing parts with a large surface area. Featuring Aven’s Double Arm Boom Stand, operators can smoothly glide the boom along it’s 22.5 inch reach. This system also includes Aven’s SPZ-50 Stereo Zoom Microscope with 10x eyepieces (6.7x–50x magnification) and E-Arm Focus Mount w/ Integrated Ring Light.

SYSTEM CONTENTS

26800B-534: Double Arm Boom Stand

SPZ-50: Stereo Zoom Binoular Microscope

26200B-209: E-Arm Focus Mount w/ Integrated Ring Light

MAGNIFICATION RANGE: 6.7X-50X

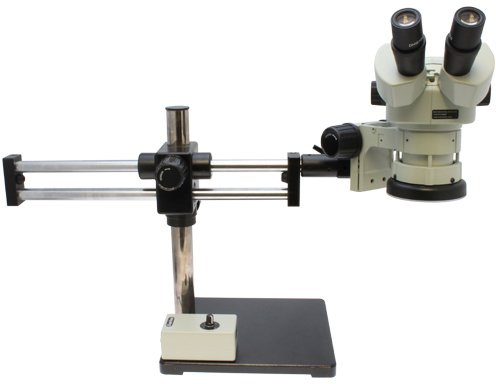

Aven’s Double Arm Boom Stand System is ideal for inspecting parts over a large surface area. The double arm stand provides smooth motion along it’s 22.5″ arm, allowing for easy scanning. The stand features a 15 inch post with a safety collar, and a heavy 11 x 10 inch base. This system features Aven’s SPZ-50 Stereo Zoom Microscope. This microscope offers the best in class zoom ratio (7.46:1) with super sharp 3D images, wide field of view (1.35″ to 0.14″) and long working distance (4.25″). These components make this system an ideal choice for high throughput inspection stations and engineering and science labs.

DOUBLE ARM BOOM STAND

WIDE INSPECTION RANGE

The wide range of the boom allows the microscope to easily scan across the subject. Features two locking knobs to adjust the horizontal and vertical position of the gliding arm. A heavy metal base provides excellent stability and a safety collar on the support post provides added protection for your inspection system.

22.5 inch gliding arm provides smooth horizontal movement

Allows positioning of microscopes over large area

Heavy duty all metal construction

15 inch post with safety collar

Heavy 11 x 10 inch base assures stability and space

SPZ-50 STEREO ZOOM MICROSCOPE

WIDE MAGNIFICATION RANGE

Aven’s SPZ-50 Stereo Zoom Microscope has a magnification range of 6.7x—50x, which can be enhanced to up to 200x with optional auxiliary lenses and eyepieces.

Large zoom ratio 7.46:1- best zoom ratio in class

Field of View 34.3mm to 3.6mm (1.35″ to 0.14″)

Working distance 108mm (4.25″) – the best in class

17mm (0.67″) high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses

Diopter adjustment on both eyepiece tubes

E-ARM FOCUS MOUNT WITH LED RING LIGHT

LED FOCUS MOUNT

Includes a built-in eco-friendly 60 LED Ring Light. The built-in ring light eliminates the potential risk of an external ring light coming loose and falling onto a specimen. The LED ring light also includes a dimmer control box.

60 integrated LED ring light with dimmer control

Minimum 20,000 hours of high-output LED illumination
