Aven Tools 26800B-376-ESD – Stereo Zoom Trinocular Microscope on Stand PLED

• ESD Safe coating protects sensitive components from electrostatic discharges
• C-Mount camera port is compatible with any C-Mount camera
• Superior optics and reliable mechanical components
• Magnification: 6.7x to 50x
• Magnification range with optional lenses: 6.7x to 200x

SPZV-50E Stereo Zoom Trinocular Microscope 6.7x to 50x, max 200x with optional lenses on stand PLED with 60 eco friendly LED lights with dimmer. Attach any C or C/S mount camera to the trinocular port to view images on a monitor. Focus mount has coarse and fine focusing for precise control. Large 200 x 284mm base. Compact footprint helps save bench space. ESD Safe coating protects sensitive components from electrostatic discharge. System Components: SPZV-50E Trinocular Stereo Zoom Microscope | ESD Safe PLED Stand 26800B-514-ESD

HIGH-GRADE OPTICS AND ESD SAFE DESIGN

DIMMABLE RING LIGHT WITH 60 LEDS IS BUILT IN

This inspection and laboratory microscope offers a best-in-class zoom ratio with sharp 3D images, wide field of view and large working distance. Unibody construction and multi-coated optical components assure excellent contrast and definition of 3D images from edge to edge. A 60-LED ring light with a dimmer control is built into the focus mount, which has coarse and fine focusing for precise control. Features an ESD Safe coating, protecting sensitive components from electrostatic discharges. The SPZV-50 includes a C-Mount camera port. Compatible with any C-Mount inspection camera.

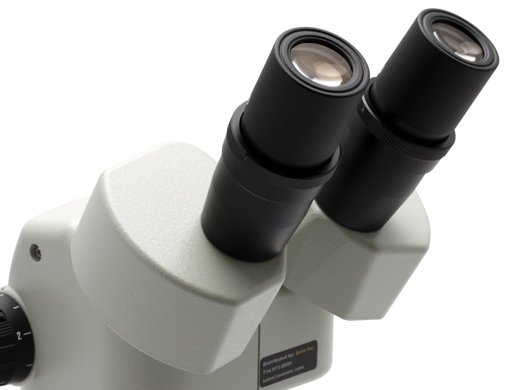

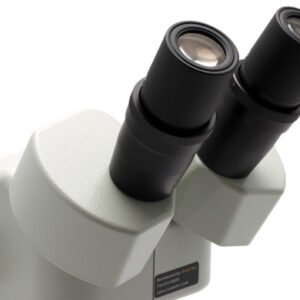

WIDE MAGNIFICATION RANGE

An impressive magnification range of 6.7x to 50x deliver excellent clarity, resolution, and depth of field with accurate, lifelike color reproduction.

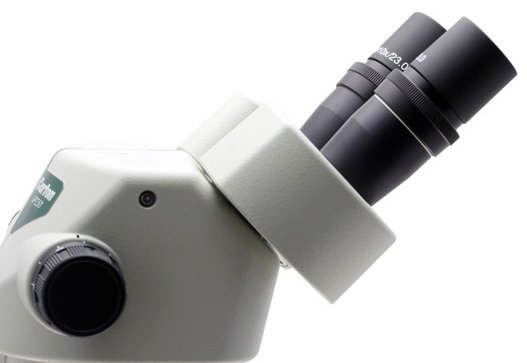

SUPERIOR OPTICS

At 45-degrees, the Standard High Eye Point Wide Field 10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and an Adjustable Interpupillary Distance of 1.96” (50mm) to 2.91” (74mm) provides operators with even more flexibility in their individual applications.

ADJUSTABLE ZOOM KNOB

An adjustable zoom knob further enhances your precision work experience. The graduations on the zoom knob tell operators the exact magnifications at which they are working, which is useful when specific adjustments are required.

STAND WITH BUILT-IN LED RING LIGHT

Aven’s Stand PLED features a rack-and-pinion focus mount (74mm in diameter) and 60 built-in eco-friendly LEDs with a dimmer control. Compact enough for limited work bench space, the system’s base measures at 220mm x 284mm x 15mm (8.7in x 11.2in x 0.59in.) The stand’s post is 255mm (10in) tall.

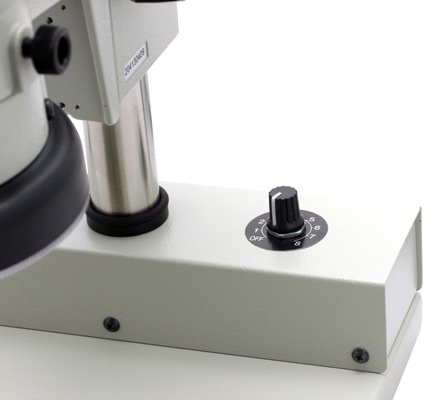

BRIGHTNESS ADJUSTMENT

The stand’s built-in dimmer is an ideal design for examining small parts, and for environments where bench space is a premium. The energy-saving daylight 60 LED ring light with a dimmer control built into the focus mount significantly reduces power consumption, ensuring a flicker-free experience that lowers energy costs and enhances productivity.
