Aven Tools 26800B-ES1 – Digital Microscope Mighty Cam ES (3x-43x) with Ultra-Glide Stand, Macro Zoom Lens, LED Ring Light and 22-inch HD Monitor

• Magnification: 3x – 43x (based on a 21.5-inch HD monitor)
• Working distance: 20mm – 300mm
• USB and HDMI outputs to view on an HD monitor or from your PC
• Advanced measurement software included for use in PC mode
• Smooth motion boom stand allows operators to easily scan over objects

The Aven Tools 26800B-ES is a bundled system consisting of the Mighty Cam ES HDMI/USB inspection camera, macro zoom lens, Ultra Glide arm stand with heavy metal base, LED ring light and 22-inch HD monitor.

The Mighty Cam ES is designed for quick and accurate inspection. View 1080p live images on your HD monitor or utilize the included advanced measurement software on your PC. Capture true-to-life images and videos directly to the SD Card or on your PC. The 5mp HD image sensor provides detailed images with true-to-life color reproduction.

The 26800B-ES is an ideal inspection system for viewing parts with a large surface area. Featuring Aven’s Ultra-Glide arm stand, operators can smoothly glide the arm along its 23-inch reach.

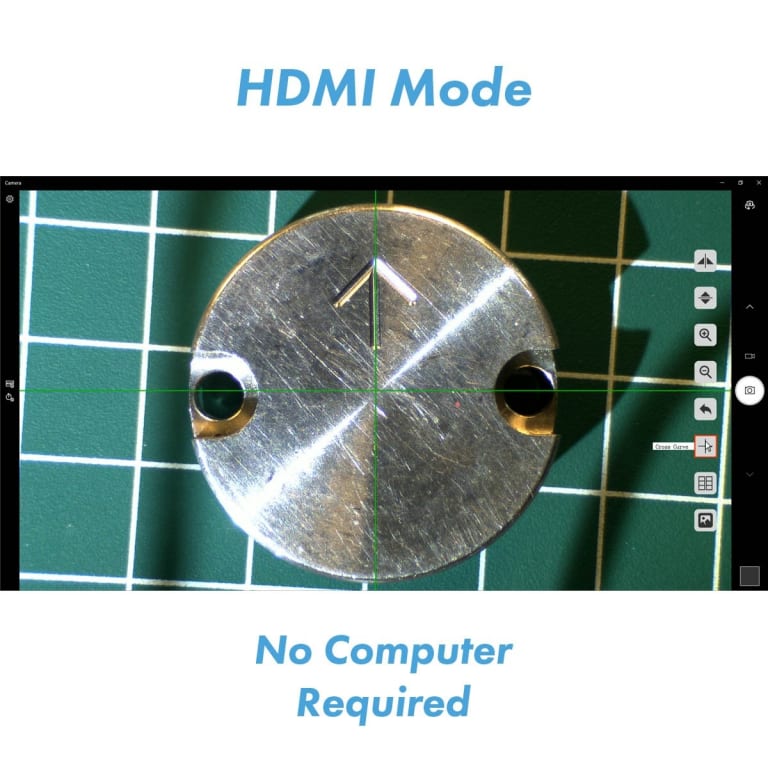

HDMI mode provides features that typically require operators to connect their camera to a computer:

• Save image/video files directly to an SD card
• Grid overlays
• Image review
• And More

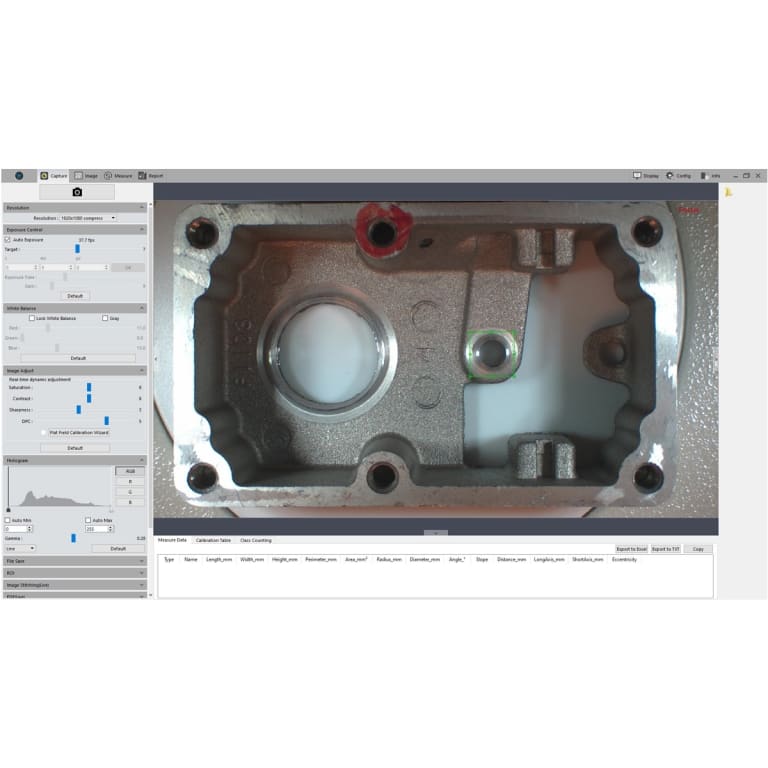

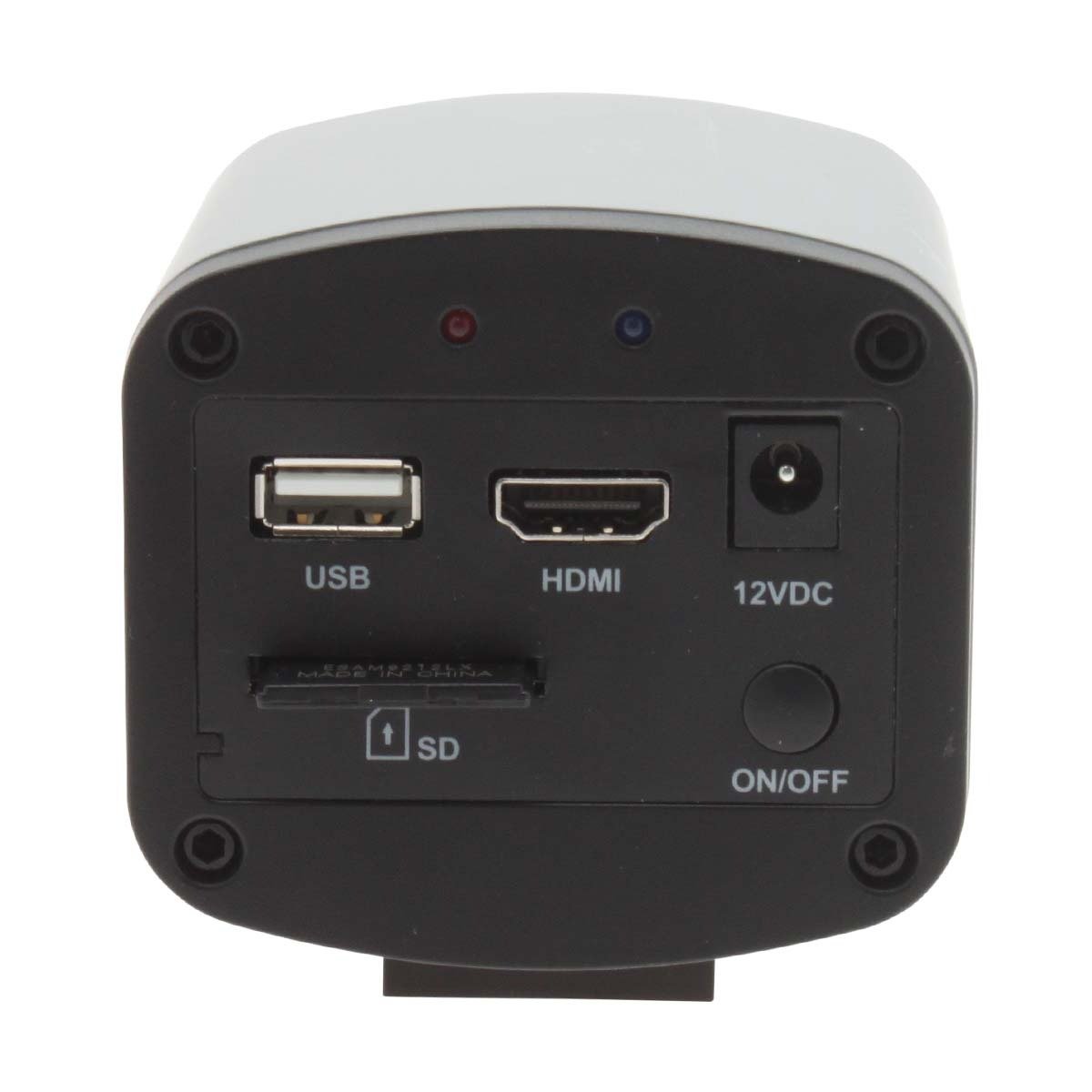

The Mighty Cam ES also features a USB output for computer connectivity. The included software package features advanced capabilities exclusive to USB mode:

• Image Capture – Save high-resolution image/video files to your PC
• Measurement Tools – Calibrate and execute accurate measurements with a large selection of line, shape, angle, and grid tools.

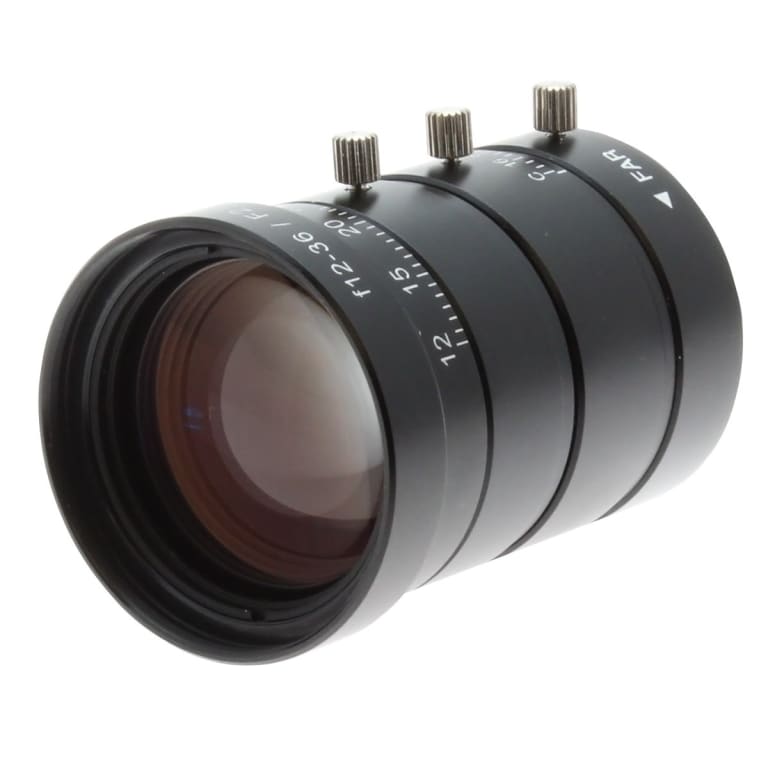

The included macro lens is ideal for quality assurance or assembly applications where easy to view, sharp and true-to-life magnified imaging of a product is required. The Macro Zoom offers unsurpassed clarity and parfocal zoom capabilities.

• Focal Length: 12-36mm
• C/CS Mount
• Working distance 20mm ~ 300mm

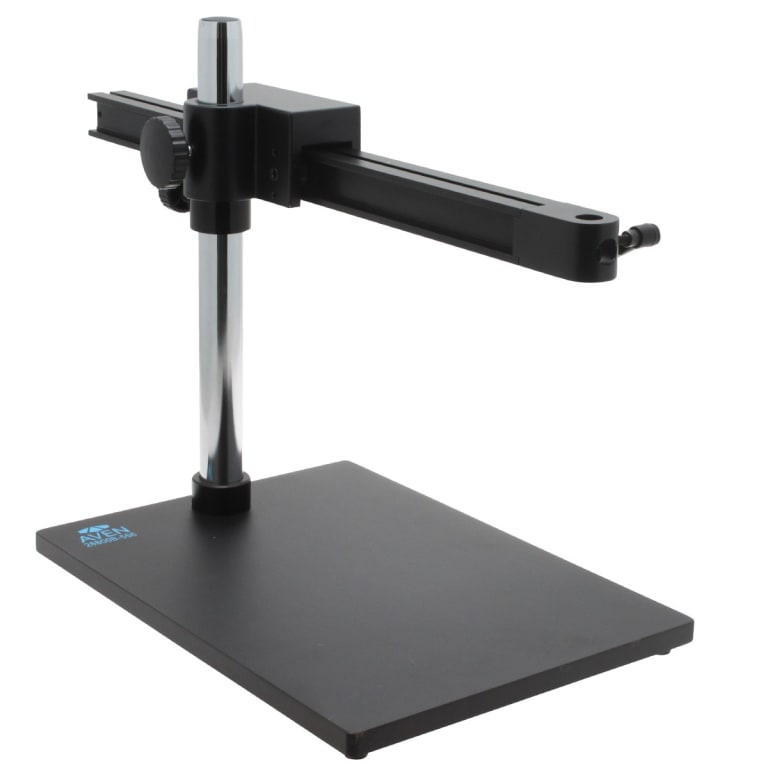

• Heavy base provides excellent stability
• Gliding boom provides smooth horizontal movement
• Allows positioning of microscopes over large area
• Heavy duty all metal construction for durability
• Heavy 15 x 10.5-inch base assures stability and space

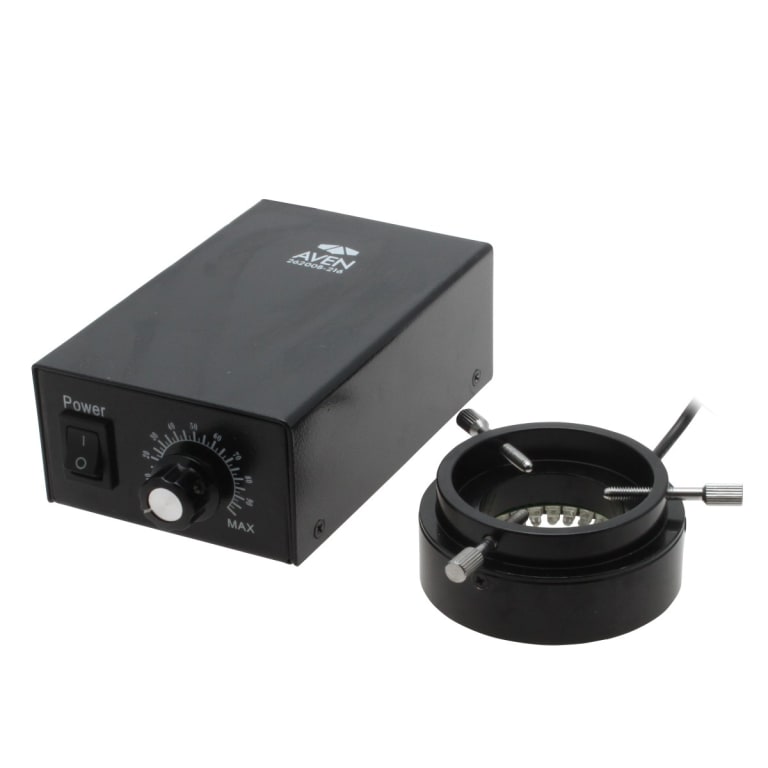

The LED Ring Light is a compact source of LED lighting with a fully adjustable high-resolution dimmer that provides uniformity and shadow free illumination. It consists of 96 LED lights that do not heat or flicker. It has a 50mm opening with three thumb screws for mounting. Please note, an adapter may be required to mount an optional micro video lens.

• 96 High intensity LED lights
• Continuous brightness control
• Flicker free
• No color change with temperature
• Energy saving

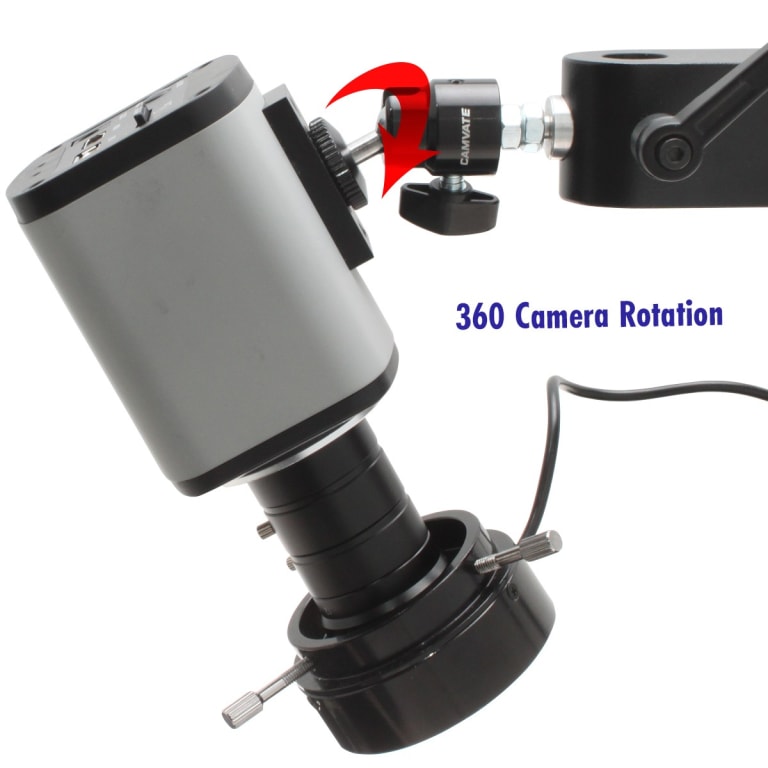

The 360 ball joint allows 360-degree camera rotation. Tilt and rotate the Mighty Cam ES camera to the ideal inspection angle.

• Precision assembly applications
• Quality control
• Production applications
• Electrical inspection
• Medical device inspection
• Aerospace
• Educational applications
• Research and Development
