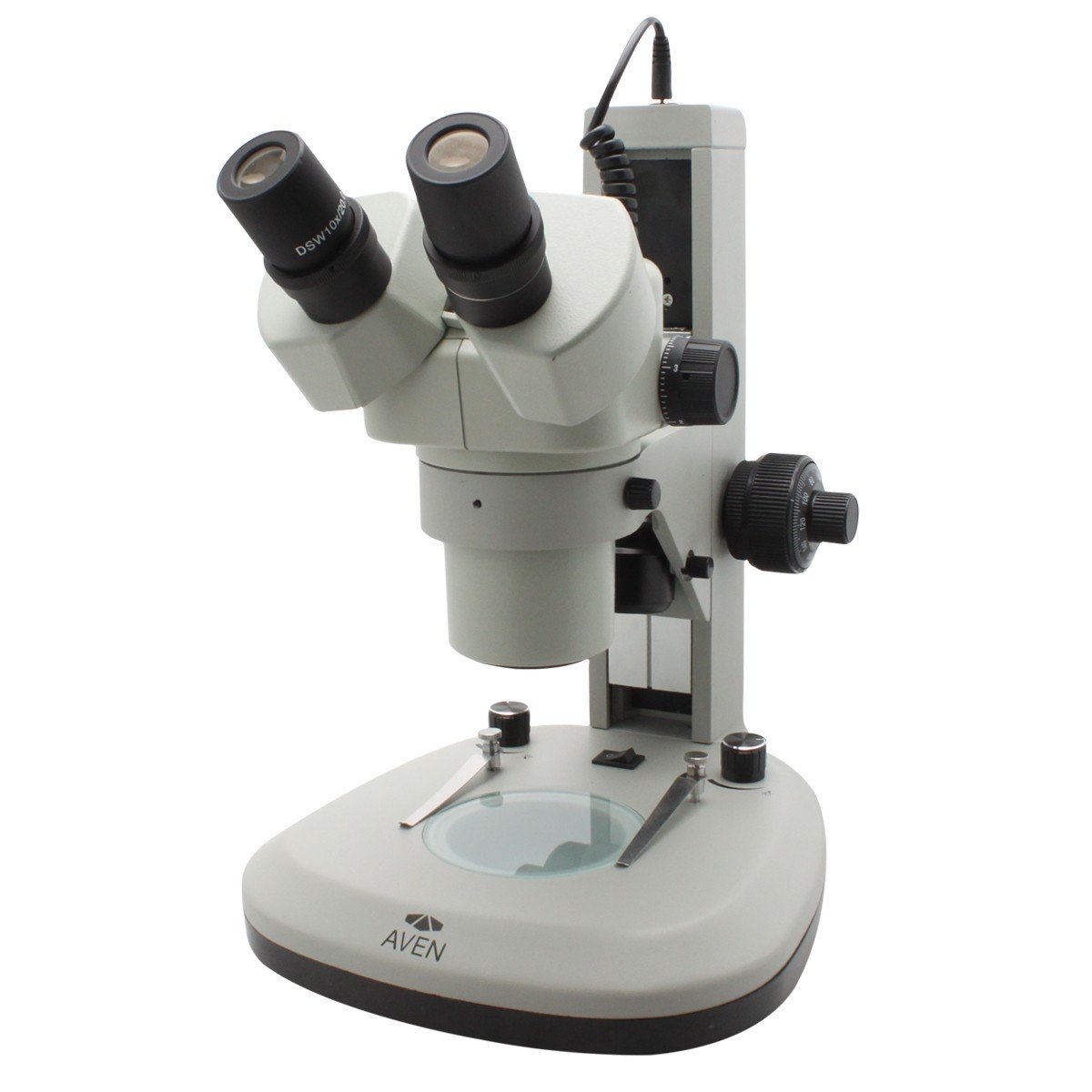

Aven Tools DSZ44-506 – DSZ-44 Stereo Zoom Microscope (10x – 44x) On Track Stand w/Top & Bottom LEDs

• Zoom ratio: 4.4:1
• Magnification range: 10x to 44x
• Field of view 23mm to 5.2mm (0.90″; to 0.20″;)
• Working distance: 90mm
• Wide Field 10x Eyepieces (Field Number 23)

Provides crisp clear 3D images and a wide field of view. 10x to 44x continuous zoom with 10x eyepieces. Microscope is mounted to our track stand with top and bottom LEDs. Base dimensions: 284.7 x 237.7 x 45.5mm

DSZ binocular stereo zoom microscopes offers superior quality optics and reliable mechanical components. This exceptional quality allows users to efficiently perform tasks and maintain high productivity. High precision optics ensures excellent contrast and definition 3D images from edge to edge. Magnification range from 2.5x to 140.8x with optional auxiliary lenses and eyepieces. A wide variety of lenses, stands and illumination is available to provide you with a microscope system to meet your individual requirements

ZOOM ADJUSTMENT

Graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.

HIGH EYE POINT

10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and a highly Adjustable Interpupillary Distance of 52mm to 75mm provides operators with even more flexibility in their individual applications.

This lightweight and compact stand is designed with the operator in mind. Featuring adjustable overhead and backlight LEDs, there is no need for an external light source. The focus mount can be moved to any position along the 280mm track. Focusing Distance: 106mm and length of track: 280mm

The overhead LED light shines bright light on the subject below the microscope. The light can be tilted to the desired angle

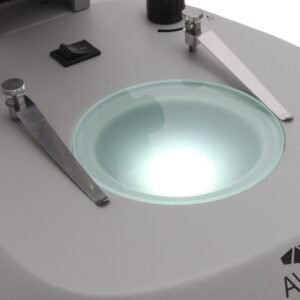

The backlight LED located in the base of the stand is designed to illuminate translucent objects. The light is covered by a frosted glass plate for soft, diffused lighting. Two clips have been installed to secure slides over the glass plate.

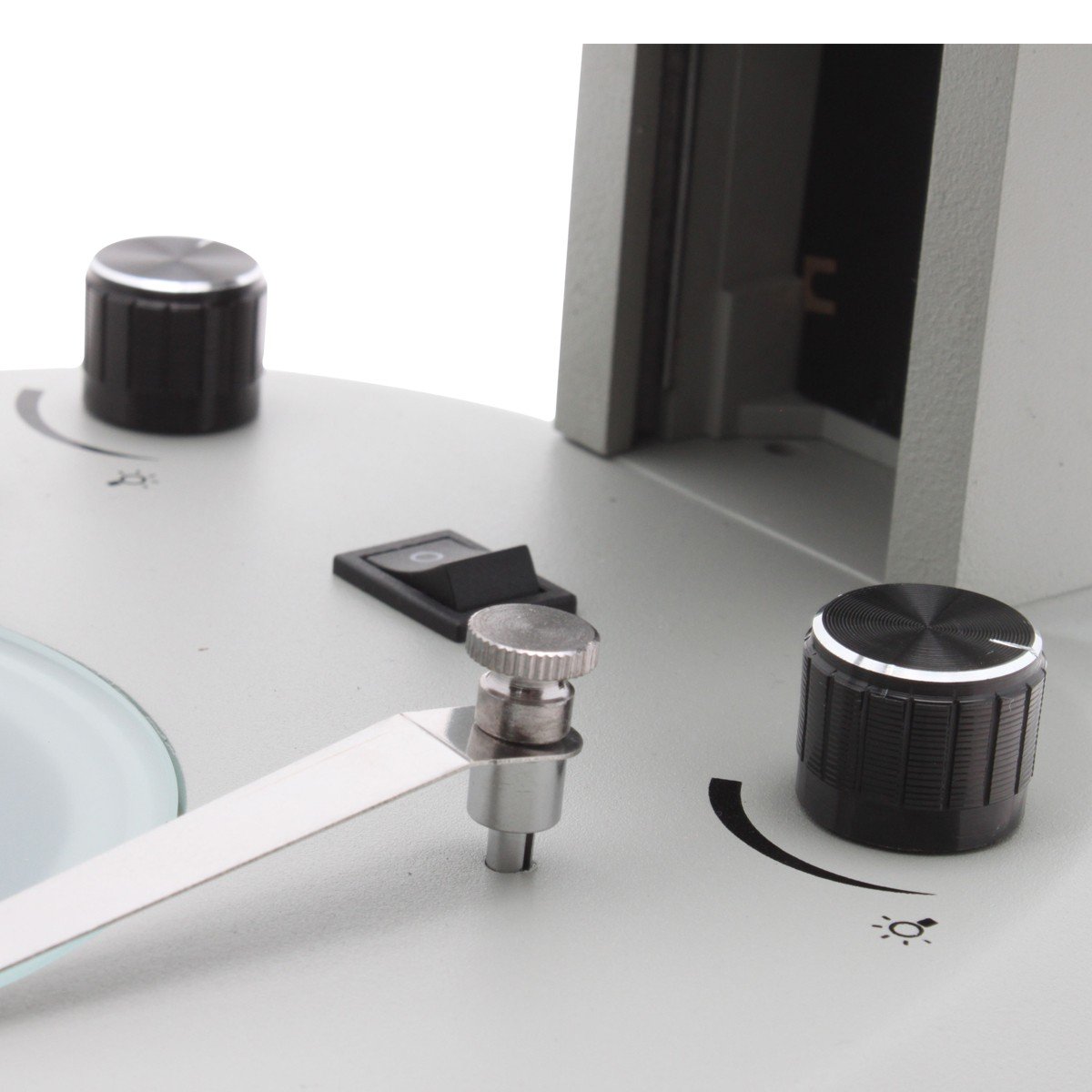

The backlight and overhead LED have individual dimmer knobs to provide ideal illumination from each lamp.

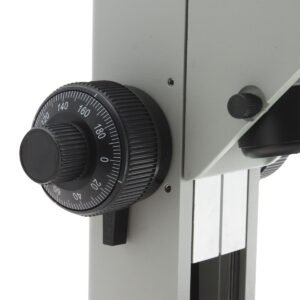

The focus mount is designed to accommodate 74mm microscope bodies. The focus knobs feature coarse and fine focus options, providing smooth movement along the track stand. The side of the knobs feature labeled adjustment increments for precise movements and measuring.

The tension of the focus mount can be adjusted by turning the inner ring located on the right-side focus knob. To tighten, turn the inner ring counterclockwise. To loosen, turn clockwise.
