Aven Tools E-254-570 – Digital Microscope System (6.5x – 65x) with 1080p HDMI Camera
43 people are viewing this product right now
Original price was: $2,495.00.$2,245.50Current price is: $2,245.50.
Shipping calculated at checkout.
Estimated delivery:3 days
Camera with Macro Lens, Post Stand, and Focus Mount
- HDMI color camera with built-in measurement software
- Magnification range: 6.5x – 65x
- Live/Freeze image function
- Field of View: 92.2mm – 9.6mm(D) 74.6mm – 7.8mm(H) 56.4mm – 5.9mm(V)
- USB Flash drive built-in for saving images
- Multiple cross hair for quick gauging
- Multiple measurement tools such as lines, circles, and radius available in manual tab
- Mouse control provides ease of use
- 16-inch post stand provides a large working distance
- Flexible gooseneck LEDs provide bright, even illumination
Guarantee Safe and Secure Payment Checkout
Description
Aven Tools E-254-570
- HDMI color camera with built-in measurement software
- Magnification range: 6.5x – 65x
- Live/Freeze image function
- Field of View: 92.2mm – 9.6mm(D) 74.6mm – 7.8mm(H) 56.4mm – 5.9mm(V)
- USB Flash drive built-in for saving images
Digital Microscope System (6.5x – 65x) with 1080p HDMI Camera

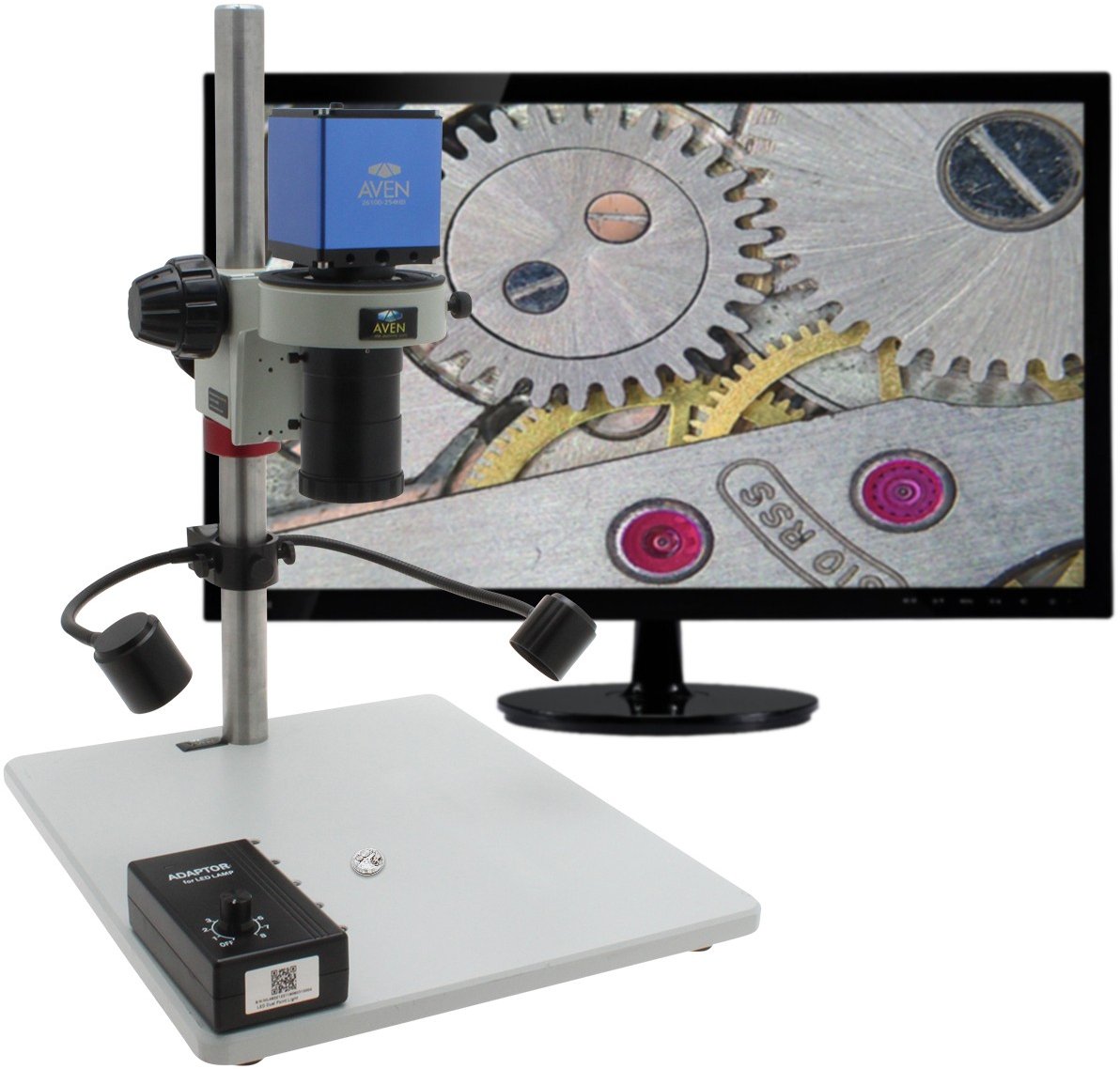

The Aven Tools E-254-570 is a full HD digital microscope system with a macro lens, HDMI camera, focus mount, heavy-duty stand, dual gooseneck LED’s, and a 22-inch monitor. This system provides a magnification range of 6.5x – 65x at a working distance of 6” (152.4mm) measured horizontally. The built-in USB flash drive allows you to save images and videos for sharing and documentation.

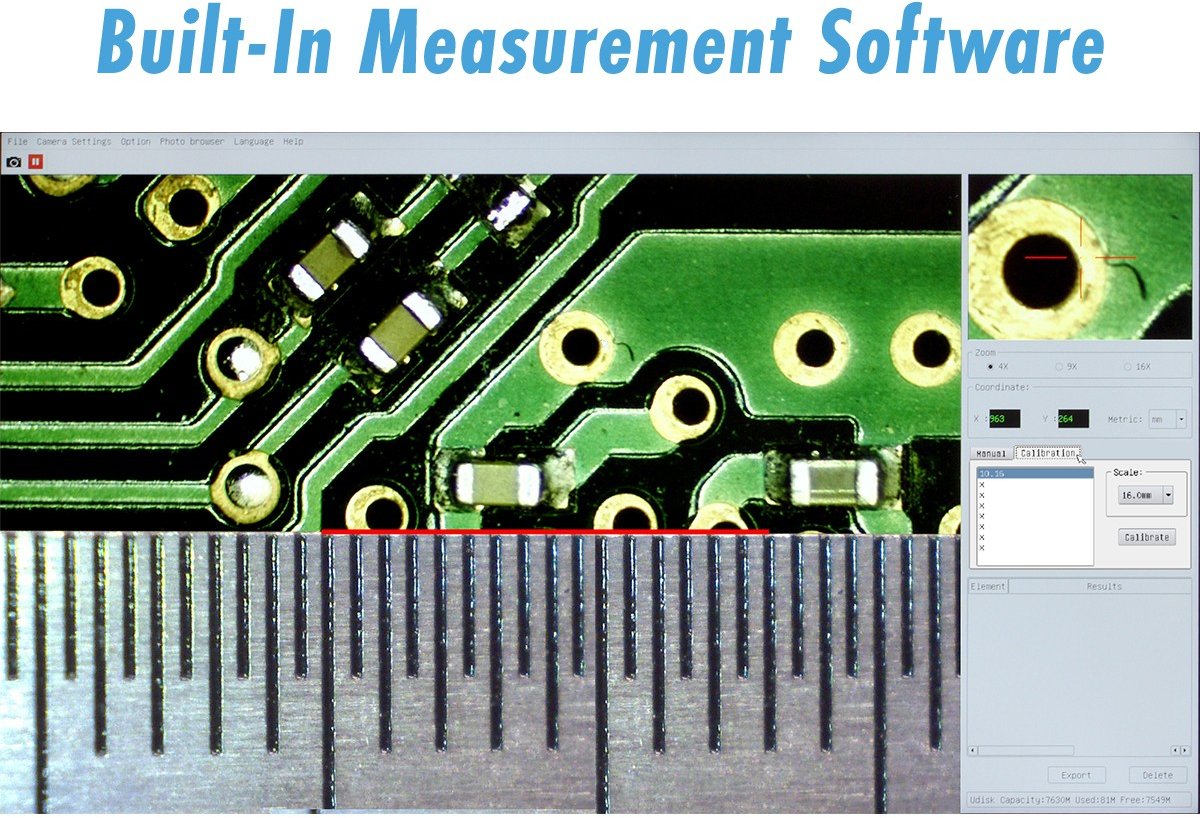

Measure and analyze with ease
No PC or installed software is required for image processing. The built-in software offers the following features:
- Edge detection
- Live/freeze image
- Measurement tools including line, circle, radius, angle, and parallel lines
This Aven Tools Macro Digital Imaging System is a self-contained, full HD (1080p) digital microscope and system offering powerful image processing and control while delivering vibrant, full HD live image quality at 60 frames per second, enabling it to be used as a solution for quality control, testing, rework, assembly, inspection, and documentation.

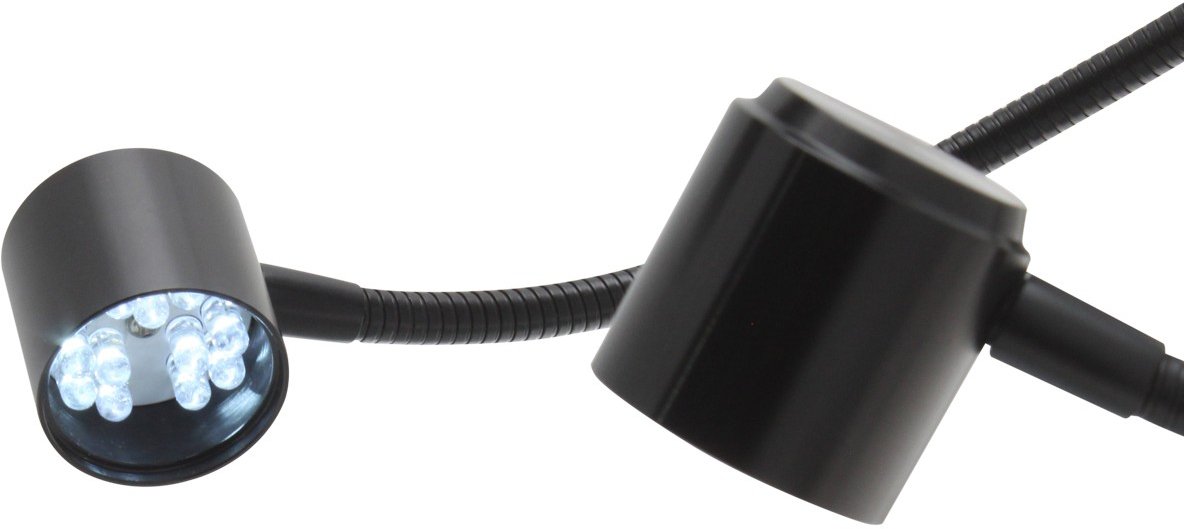

Dual LED Pipe Lights
Ultra-bright LEDs on dual flexible goosenecks allow users to focus and adjust the light to provide perfect illumination for all types of applications. It comes complete with a dimmer control box.
Applications include:
- Precision assembly applications
- Quality control
- Production applications
- Electrical inspection
- Medical device inspection
- Aerospace
- Educational applications
- Research and Development
Designed for ease of use
All features of the digital camera can be controlled via on-screen menus, such as RGB values, white balance, cross hair grid, and auto exposure. 4 Vertical and 4 horizontal cross hair grids are available with 6 color selections. A remote switch for capturing images onto the USB flash drive is included. Produces stunning life-like images with exceptional clarity.
Microscopes/Video Inspection Systems Template | |
|---|---|
| Magnification max | 65 x |
| Illumination Type | LED |
| Stand Type | Pole |
| Camera Included | Yes |
| Working Distance | 6 IN (25.40 MM) |
| Digital Camera Resolution | 2 Megapixels |
| Digital Zoom | No |
| Magnification min | 6.5 x |
| ESD Safe | No |
Product General Attributes | |
| Shipping Weight | 18.18 LBS |
| Shipping Height | 12.00 IN |
| Shipping Length | 20.00 IN |
| Shipping Width | 14.00 IN |
