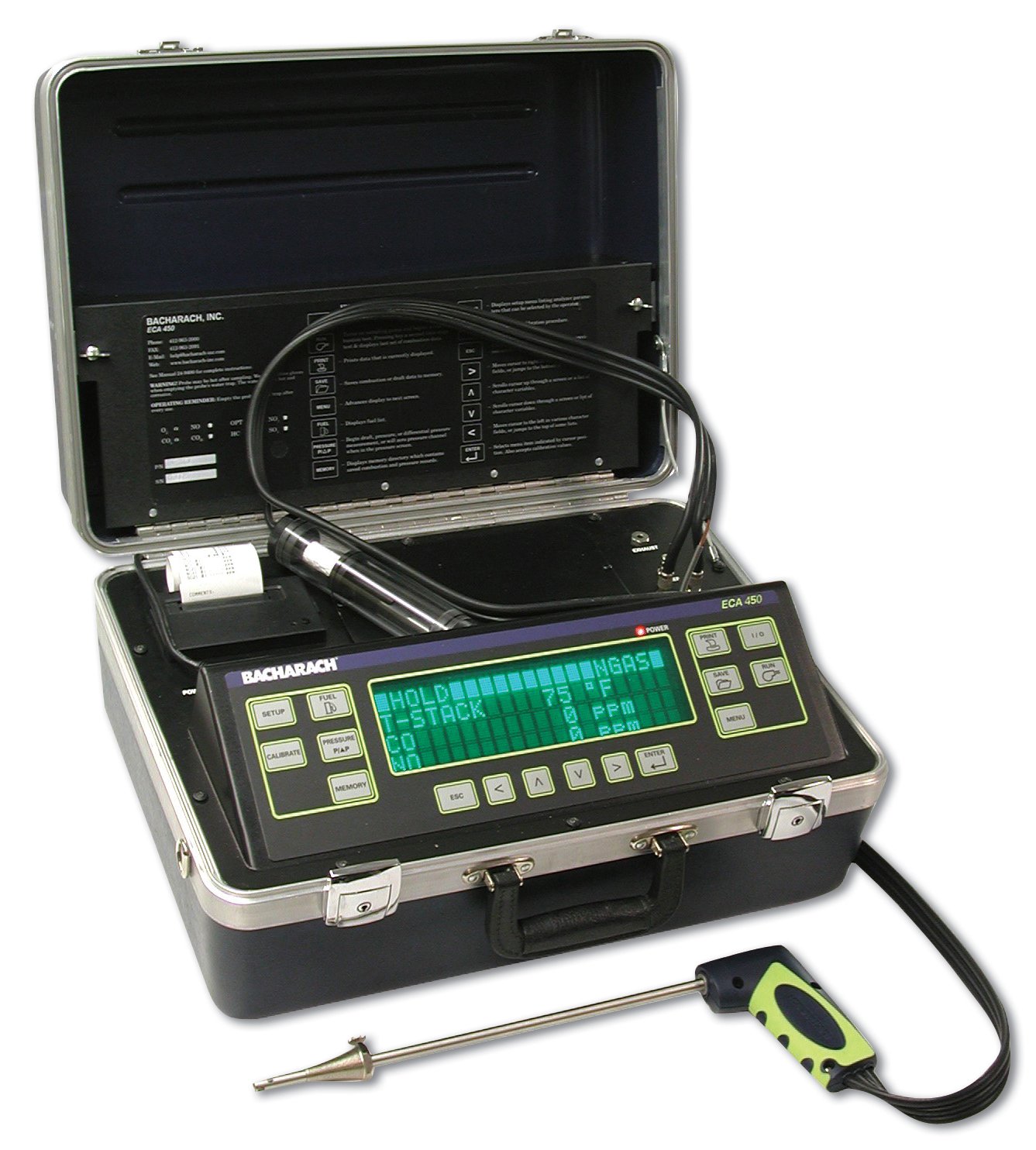

Bacharach 0024-7221 – ECA 450 Combustion Efficiency / Environmental Analyzer
9 people are viewing this product right now
Original price was: $12,158.30.$10,942.47Current price is: $10,942.47.
Shipping calculated at checkout.
Estimated delivery:4 days
ECA 450 basic unit, includes O2, CO/H2-compensated (0-4,000 ppm) and 12 in. sample probe with 15 ft. sample line/hose assembly
- A combustion efficiency and environmental analyzer
- Measures up to 7 gases simultaneously (minimum O2 and CO), including NOx, SOx and combustibles
- Sensors are easily replaced or upgraded in the field
- Rugged suitcase design with large, easy-to-read display
- Built-in printer for instant traceability and record-keeping
Guarantee Safe and Secure Payment Checkout
Description
Bacharach 0024-7221 – ECA 450 Combustion Efficiency / Environmental Analyzer
- Measures and displays O2 and CO in the flue gas, pressure (draft), primary air temperature, and stack temperature
- Calculates combustion efficiency, excess air, and CO2
- Stores over 1000 individual combustion and/or pressure test records
- Automatically zeros all sensing channels when the analyzer is first turned on
- Automatically purges the low-range CO sensor with fresh air if the CO level exceeds 4,000 ppm
The Bacharach ECA 450 is an industrial grade analyzer ideal for professionals concerned about combustion efficiency, environmental compliance, or both. Accommodating up to seven sensors, simultaneous measurements and calculated parameters are evaluated to ensure that industrial equipment is meeting environmental regulations while burning safely and efficiently.
The ECA 450 is designed for on-demand or semi-continuous sampling of industrial furnaces, boilers and other industrial combustion equipment. It complies with regulations such as U.S. EPA test methods, EN 50379, CTM-030 and state/local protocols including SCAQMD.
The ECA 450 is microprocessor controlled, allowing it to be easily operated and configured to suit each operator’s individual needs. Using a system of menu selections, the operator is guided through the proper operation and set-up procedures, signaling the appropriate action, and waiting until the correct steps are taken.
The analyzer is powered by either its internal battery pack, or by an AC adapter that operates from any convenient source of 100–240 VAC, 50/60 Hz power. The analyzer’s control panel consists of a bright and easy-to-read 2.25×8″ blue vacuum-fluorescent display, sixteen push buttons, and one power LED. A sampling probe and hose assembly with an integral thermocouple and water/filter trap provides the means of drawing in gas samples, and for measuring stack temperature and pressure.
A burner’s combustion efficiency is calculated by first entering the fuel being burned and then allowing the analyzer to measure the burner’s primary air temperature, stack temperature, and percent Oxygen in the flue gas. This information is processed by the analyzer, resulting in the display of all the measured and calculated values.
For analyzer models that are equipped for environmental monitoring of combustion by-products, the gas sample that was drawn into the analyzer through its probe is applied to an array of electrochemical gas sensors. The results of the analyzer’s gas analyses are shown on the front panel display.
| N. Amer. P/N | Description |
| 0024-7221 | ECA 450 with O2 and CO sensors and probe with 12 in. sample tube (approximately 15 ft. total length), water trap, particulate filter and probe stop |
| 0024-8400 | ECA 450 with O2, CO, NOx kit (NO and NO2 sensors) and compact sample conditioner |
| 0024-8401 | ECA 450 with O2, CO, NOx & SOx kit (NO, NO2 and SO2 sensors) and compact sample conditioner |
All kits include:
- Spare filters (qty. 3)
- Spare printer paper (qty. 1)
- Wall adapter/charger
- User manual
Combustion Analyzer Template | |
|---|---|
| Includes NO sensor | No |
| Includes NO2 sensor | No |
| Includes printer | Yes |
| Includes SO2 sensor | No |
| Digital device | Yes |
Product General Attributes | |
| Warranty | 12 MONTHS (1 YEARS) |
| Storage | Internal Memory |
| Product Weight | 25 LBS |
| Product Height | 9 IN |
| Product Length | 13.5 IN |
| Product Width | 18.5 IN |
| Shipping Weight | 33 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027.10.0000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | United States |
You must be logged in to post a review.
Manuals/Guides
| Weight | 25 lbs |
|---|---|
| Dimensions | 13.5 × 18.5 × 9 in |
