Baur/HVT 414+064 – Protrac Cable Fault Locator
34 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days

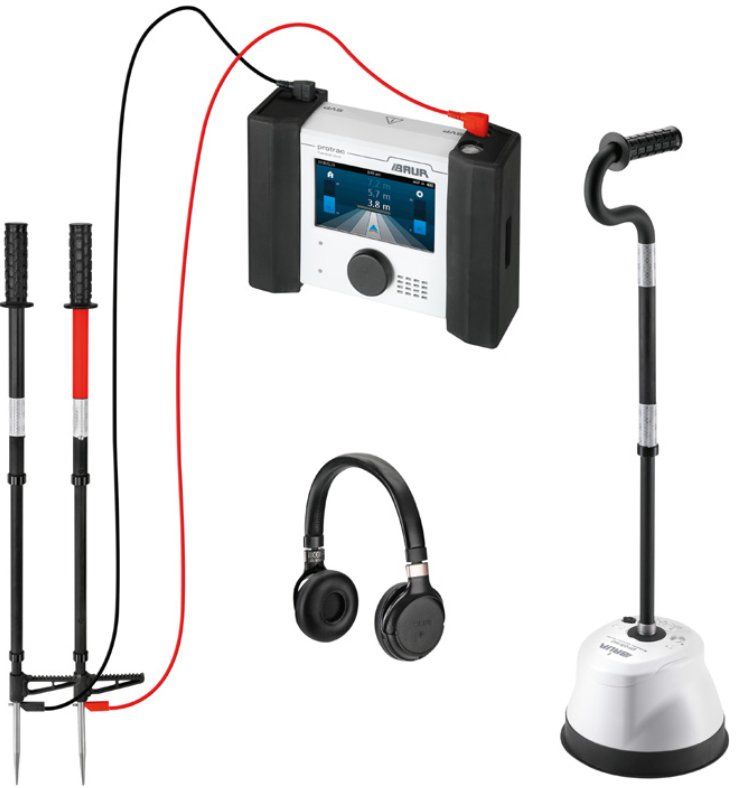

BAUR/HVT Protrac “Pin-Pointing” Set
- Unique operating convenience
- All system components are connected with each other wirelessly via Bluetooth®.
- Distances of up to 40 m between the control unit and the acoustic ground probe are possible
- Power supply by rechargeable or non-rechargeable batteries
- Can also be used without headphones thanks to the loudspeaker integrated into the control unit
- Precise 3D user guidance
- Precise left/right guidance and fault direction display in the 3D view
- Real-time calculation and display of the fault distance incl. the previous measured values
- Excellent acoustic quality and range
- Adaptive two-stage ambient noise suppression (ANS)
- Ambient noise inhibiting design of acoustic ground probe
- Clear distinction between the breakdown noise of the fault and the surge noises of the cable fault location system
- Time saving thanks to BAUR Fault Location App
- Use of the cable route data from GIS databases in the BAUR cable fault location system as well as the precisely pre-located fault position in a map
- Direct availability and use of geographic information
Functions
- Acoustic and magnetic pin-pointing of cable faults
- Pin-pointing of cable sheath faults and faults due to earth contact using the step voltage method
Guarantee Safe and Secure Payment Checkout
Description
Baur/HVT 414+064 – Protrac Cable Fault Locator
- Unique operating convenience thanks to wireless Bluetooth® connections
- Precise 3D user guidance to the fault
- Excellent acoustic quality and range
- Saves time thanks to use of cable route data and the pre-located fault position from the BAUR Fault Location App
The BAUR protrac® pin-pointing system is used for the precise pin-pointing of cable and cable sheath faults. Combining acoustic and electromagnetic fault pin-pointing with sheath fault location in one system, it is ideal for universal application.
Thanks to the use of the latest technologies, locating the exact fault position with the protrac® is extremely fast and precise. The innovative two-level signal processing concept permits a high degree of sensitivity and accuracy, and maximum suppression of ambient noise.
The prepared measurement data is sent directly to the headphones and the CU control unit via Bluetooth®. The wireless connection ensures greater convenience and freedom of movement and dispenses with the need for cumbersome cables.
The measurement parameters are set automatically depending upon the environmental conditions. As a result, and thanks to the intuitive operation of the capacitive touchscreen, working with the protrac® is extremely simple and convenient.
CU Control Unit
The control unit offers clear and intuitive navigation to the fault in 3D view. The display of the distance from and direction to the fault, along with the history, leads the user reliably and fast to the fault location.
- Convenient and intuitive operation by touchscreen
- User guidance by clear 3D view and left/right display
- Real-time calculation and display of the fault distance and the previous measured values
- Can also be used without headphones thanks to the integral loudspeaker
- Work safety assured by limiting the volume in the headphones to 85 dB(A) In accordance with EC directive 2003/10/EC, ISO 1999:1990 and OSHA 1910.95(c)(1)
- High contrast, sunlight-compatible colour display with high brightness
- Flexible power supply using rechargeable or non-rechargeable batteries
- Rechargeable batteries are charged directly within the device
AGP Acoustic Ground Probe
- Powerful piezoelectric sensor with a high long-term measuring stability, designed for long-term use in harsh environments
- Automatic adaptive ambient noise suppression thanks to ANS two-level signal processing concept
- Noise signals are adaptively suppressed using statistical methods and by intelligent linking to the available signal information.
- Clear distinction between the cable fault noise in the ground and the direct surge noises of the cable fault location system
- Direct transmission of signal data via Bluetooth® to the headphones and to the CU control unit (range of up to 40 m)
- Simplified tracing function
- Ambient noise inhibiting design
- Tripod for reliable contact with the ground on hard surfaces
- Contact tips with different lengths for better contact with the ground on loose surfaces
- High wind and standing stability even if the surface is at a severe gradient
- Flexible power supply using rechargeable or non-rechargeable batteries
- Rechargeable batteries are charged directly within the device
Product General Attributes | |
|---|---|
| Shipping Weight | 20 LBS |
