Baur/HVT KSG 200 A – Cable Identifier On Disconnected Cables with Integrated Batteries
39 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Cable Identifier on disconnected cables with integrated batteries
- Automatic recording and analysis of transmitting pulses (ATP analysis):
- Amplitude
- Interval (time)
- Pulse direction (polarity)
- Error-free detection of the pulse direction, even at a high loop resistance of up to 400 Ohm
- High pulse current up to 180 A
- Fully automatic gain adjustment
- Expert mode for manual gain settings for clear cable identification on compact substations or mixed cable routes
- Signal uncoupling by means of a flexcoupler for large cable diameters of up to 250 mm
- Coupling of the transmitting pulse is effected in a galvanic or inductive manner by means of optionally available clip on current transformers
- Current measurement up to 199 A
- Essential for active occupational health and safety
- Reliable and robust protection technology
- Ergonomically designed receiver with integrated LCD display
- No batteries required for the receiver
- Transmitter with integrated rechargeable battery and possibility of external power supply (12 V port) optionally available
Guarantee Safe and Secure Payment Checkout
Description
BAUR/HVT KSG 200 A – Cable Identifier on Disconnected Cables with Integrated Batteries
- Expert mode for manual gain settings for clear cable identification on compact substations or mixed cable routes
- Signal uncoupling by means of a flexcoupler for large cable diameters of up to 250 mm
- Coupling of the transmitting pulse is effected in a galvanic or inductive manner by means of optionally available clip on current transformers
- Current measurement up to 199 A
- Essential for active occupational health and safety
The KSG 200 A cable identification system is used to identify single- and multi-core cables in a cable bundle or cable loom. By using the KSG 200, the risk of accidentally cutting a live phase is significantly reduced.
Clear, safe, and quick cable identification
- Cable identification on all types of de-energized cables
- Reliable verification of the cable identification by means of the highly precise three-factor-analysis ATP
- Safe cable identification on live low-voltage cables
- Connection technology according to CAT IV/600 V
The KSG 200 A cable identification system is used to identify single- and multi-core cables in a cable bundle or cable loom.

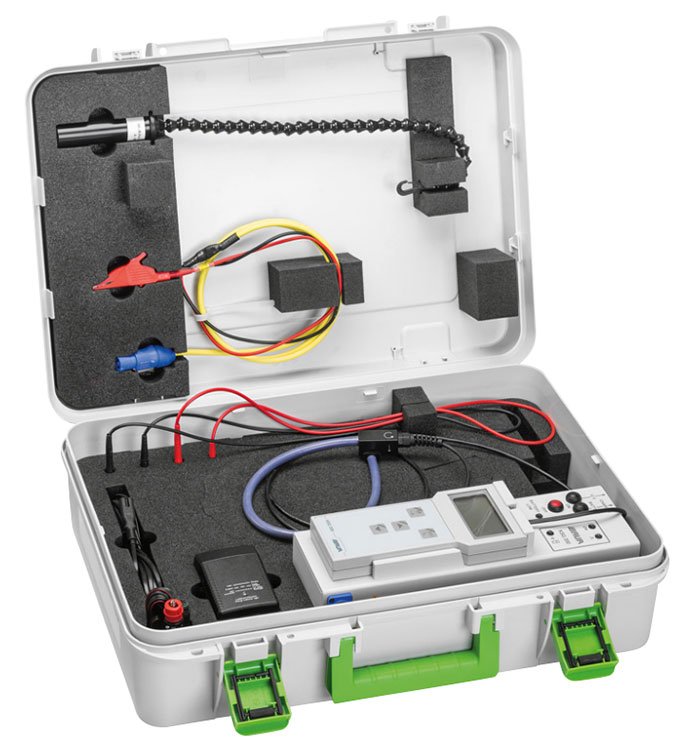

The cable identification system consists of a transmitter and a receiver with a flex coupler. Intelligent electronics enable the communication between both components and make an absolutely safe cable identification possible through time and phase synchronizing as well as automatic gain adjustment.
The operator-friendly and intuitive operation of the KSG 200 allows for it to be used immediately without extensively training the operator. The cable identification system is supplied in a convenient and stable transport case.
Functions
- Cable identification on de-energized cables
- Cable identification on live cables up to 400 V operating voltage
- Single- and multi-core cables
- Branched networks
Product General Attributes | |
|---|---|
| Shipping Weight | 25 LBS |
