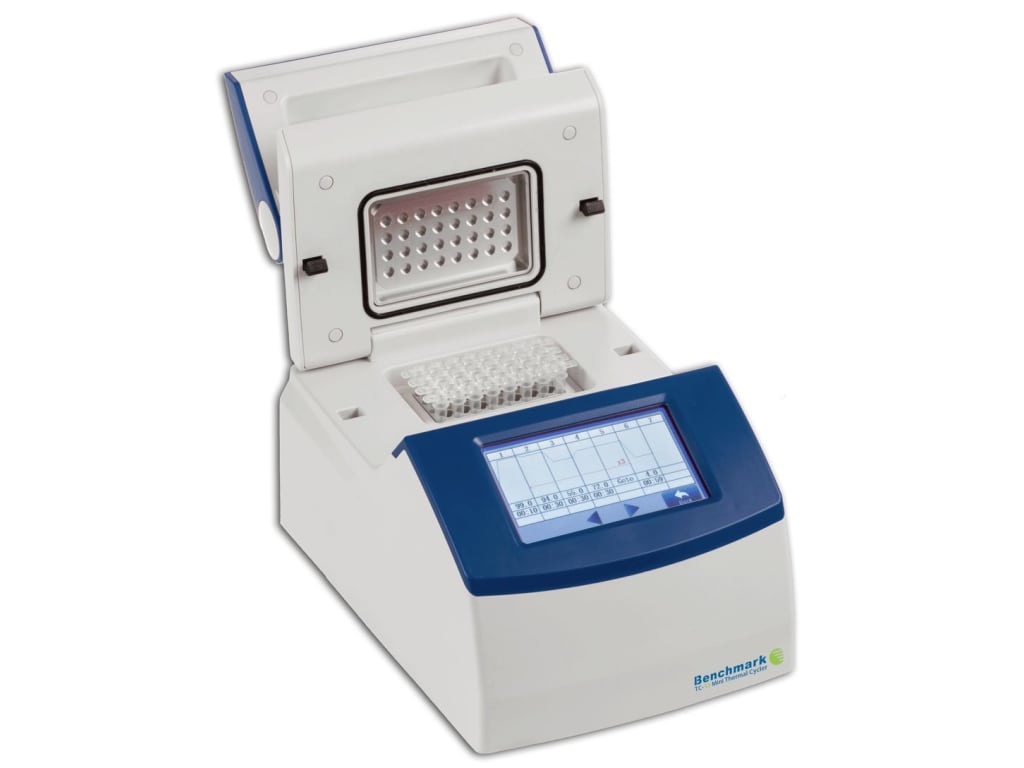

Benchmark T5005-3205 – TC 32 Mini Thermal Cycler with Multiformat Block, US Plug

• “Mini” sized, 9 x 7 inch footprint
• Capacity for 32 x 0.2ml or 4 PCR Strips
• Intuitive touch screen control
• Program Wizard with familiar icon driven programming

“Mini sized” doesn’t have to mean a sacrifice on features and performance. Benchmark’s TC-32 Mini Thermal Cycler retains the advanced programming features, easy-to-use software, and fast, reliable cycling of the larger TC-9639 Thermal Cycler, but with a smaller block and lower price point.

Designed for lower throughput needs, the TC-32 Mini Thermal Cycler has a capacity for 32×0.2ml tubes. The wells are arranged in a 4×8 format, allowing the block to accept strips of 8 as well as individual tubes. The block heats and cools very quickly – at rates as fast as 5°C/second. A proprietary algorithm controls block temperature, bringing samples quickly to the target temperature without any over-or under-shoot. Excellent block uniformity ensures consistency from sample to sample.

Operation of the thermal cycler is controlled from the large, full color, touch screen. Icon-driven menus allow users to get running quickly. Programming is extremely simple and includes options for time and temperature increment/decrements, adjustable ramp rates, and auto pause and restart functions. More than 100 typical programs can be stored in memory and easily recalled. After a run, samples can be held at 4°C. An on-screen report is also available at the completion of a run.

The heated lid is self-adjusting – the spring-loaded platen in the lid comes firmly into contact with the tops of the tubes to prevent sample evaporation and condensation. There are no knobs to turn or levers to adjust. The temperature of the heated lid can be changed or the heating function of the lid may be turned off.

With a footprint less than that of the average laboratory notebook, the TC-32 Mini Thermal Cycler will fit almost anywhere. Its reduced capacity block and economical price make the TC-32 Mini Thermal Cycler the perfect choice for lower throughput laboratories and educational facilities.

For research use only.
