Bird 4522A002-5 – 7/8″ Thruline Dual RF Line Section with Mounting Brackets
26 people are viewing this product right now
$456.50
Shipping calculated at checkout.
Estimated delivery:4 days
Line Section, Thruline Assy
- Thruline dual RF line section
- Line size: 7/8”
- Number of element sockets: 2 (panel mount)
- Connector type: QC Quick Change (sold separately)
- Elements sold separately
- Length: 6.22”
Guarantee Safe and Secure Payment Checkout
Description
Bird 4522A002-5
- Line size: 7/8”
- Number of element sockets: 2 (panel mount)
- Connector type: QC Quick Change (sold separately)
- Elements sold separately
- Length: 6.22”

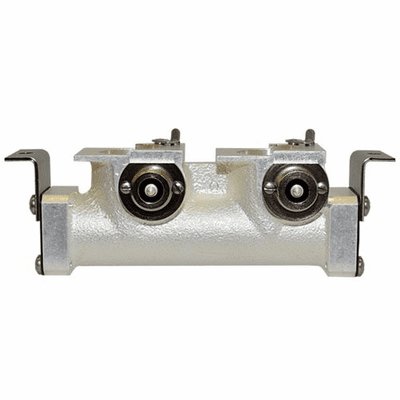

7/8″ Thruline Dual RF Line Section with Mounting Brackets
The Bird 4522A002-5 is a 7/8″ 50 Ohm, Line Section designed for insertion between a RF transmitter and antenna or RF load. The line is equipped with two sockets for simultaneous measurement of forward and reflected power. The unit is assembled with (2) mounting brackets. Select from a wide variety of Bird Plug-In Elements and Quick Change RF Connectors for the desired power rating and frequency range.
Please note, elements and QC Quick Change connectors are sold separately.
Bird RF line sections
Bird manufactures 50 Ohm 7/8″, 1-5/8″, 3-1/8″, 4-1/16″ and 6-1/8″ RF Line Sections. Each line section is equipped with one or two sockets where Plug-In Elements, in the desired power and frequency range, are inserted. Double-socket line sections are for simultaneous measurement of forward and reflected power.
| Part number | Connector type | Line size | Element sockets |
| 4230-006-1 | QC (sold separately) | 7/8″ | 1 |
| 4230-018 | N(f) | 7/8″ | 1 |
| 4230-057 | N(f) | 7/8″ | 1 (with bracket) |
| 4230-059 | QC (sold separately) | 7/8″ | 1 (with bracket) |
| 4522A002-5 | QC (sold separately) | 7/8″ | 2 (panel mount) |
| 4715-000 | EIA flange | 1-5/8″ | 2 |
| 4723-000 | Unflanged (recessed 0.438″) | 1-5/8″ | 2 |
| 4723-020 | Unflanged (flush) | 1-5/8″ | 2 |
| 4610-000 | EIA flange | 3-1/8″ | 2 |
| 4801-100 | Unflanged (recessed 0.688″) | 3-1/8″ | 2 |
| 4802-000 | Unflanged (flush) | 3-1/8″ | 2 |
| 4642-010 | Flange (MYAT) | 4-1/16″ | 2 |
| 4905-000 | EIA flange | 6-1/8″ | 2 |
| 4909-000 | Unflanged (recessed 0.968″) | 6-1/8″ | 2 |
