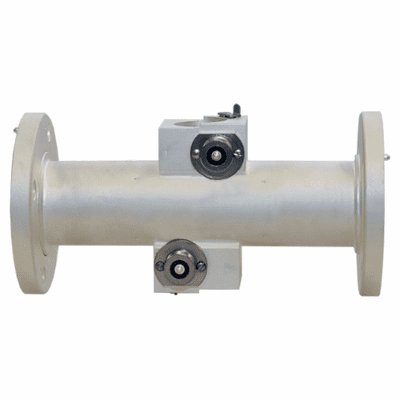

Bird 4715-000 – 1-5/8″ Thruline RF Line Section (EIA Flange)
13 people are viewing this product right now
$1,161.60
Shipping calculated at checkout.
Estimated delivery:4 days
Line Section, Thruline Rigid 1-5/8in, Flanged, Double Socket
- Thruline flanged RF line section
- Line size: 1-5/8”
- Number of element sockets: two
- RF connector: EIA flanged
- Elements sold separately
- Length: 6.75”
Guarantee Safe and Secure Payment Checkout
Description
Bird 4715-000
- Line size: 1-5/8”
- Number of element sockets: two
- RF connector: EIA flanged
- Elements sold separately
- Length: 6.75”
1-5/8″ Thruline RF Line Section (EIA Flange)
The Bird 4715-000 is a 1-5/8″ EIA Flanged 50 Ohm, Line Section designed for insertion between a RF transmitter and an antenna or RF load. The line is equipped with two sockets for simultaneous measurement of forward and reflected power. Select from a wide variety of Bird Plug-In Elements for the desired power rating and frequency range.
Please note, elements are sold separately.
Bird RF line sections
Bird manufactures 50 Ohm 7/8″, 1-5/8″, 3-1/8″, 4-1/16″, and 6-1/8″ RF Line Sections. Each line section is equipped with one or two sockets where Plug-In Elements, in the desired power and frequency range, are inserted. Double-socket line sections are for simultaneous measurement of forward and reflected power.
| Part number | Connector type | Line size | Element sockets |
| 4230-006-1 | QC (sold separately) | 7/8″ | 1 |
| 4230-018 | N(f) | 7/8″ | 1 |
| 4230-057 | N(f) | 7/8″ | 1 (with bracket) |
| 4230-059 | QC (sold separately) | 7/8″ | 1 (with bracket) |
| 4522A002-5 | QC (sold separately) | 7/8″ | 2 (panel mount) |
| 4715-000 | EIA flange | 1-5/8″ | 2 |
| 4723-000 | Unflanged (recessed 0.438″) | 1-5/8″ | 2 |
| 4723-020 | Unflanged (flush) | 1-5/8″ | 2 |
| 4610-000 | EIA flange | 3-1/8″ | 2 |
| 4801-100 | Unflanged (recessed 0.688″) | 3-1/8″ | 2 |
| 4802-000 | Unflanged (flush) | 3-1/8″ | 2 |
| 4642-010 | Flange (MYAT) | 4-1/16″ | 2 |
| 4905-000 | EIA flange | 6-1/8″ | 2 |
| 4909-000 | Unflanged (recessed 0.968″) | 6-1/8″ | 2 |
