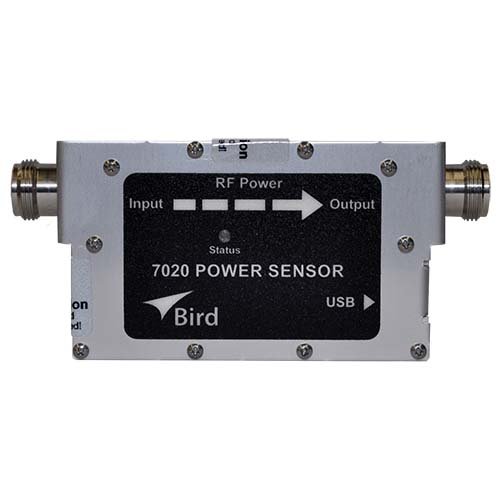

Bird 7020-1-020101 – RF Power Sensor/Extended Frequency (350MHz to 4.2GHz; 0.15W to 150W)

• Frequency range: 350MHz to 4.2GHz

• Power range: 0.15W to 150W
• Measurement accuracy: +/- (4% of reading + 0.05 W)
• Insertion Loss: 0.1 dB, Max.
• Measures forward and reflected power and VSWR to troubleshoot system failures

The 7020-1-020101 RF Power Sensor is an economical, plug-and-play solution to your power measurement needs. The 7020 determines and reports Forward and Reflected True Average Power and VSWR over a wide frequency range of 350 MHz to 4.2 GHz. It also never requires field calibration, only requires factory calibration once per year, and is traceable to National Institute of Standards and Technology (NIST).

• WPS measures: Analog Cellular, Digital Cellular, 3G, 4G, Tetra, APCO/P25, Trunking, CDMA, TDMA, WCDMA, GSM, Transportation, Tactical Military, Radar, Avionics, Marine, LMR, Analog Broadcast, Digital Broadcast, GSM, GPRS, EDGE, UMTS, HSDPA, Bluetooth, Fire, GPS, NPSPAC, Paging, Project 25, Public Safety, Telematics, Utilities, WIMAX and WLAN.
• Measurements performed: Forward and Reflected
• Calculations Performed: VSWR and True Average Power

Bird offers several versions of its 7020 power sensor. The chart below provides a brief overview of each.

*Derate maximum average power rating from 500W at 300MHz to 100W at 1GHz using a straight line on a log-log scale.
