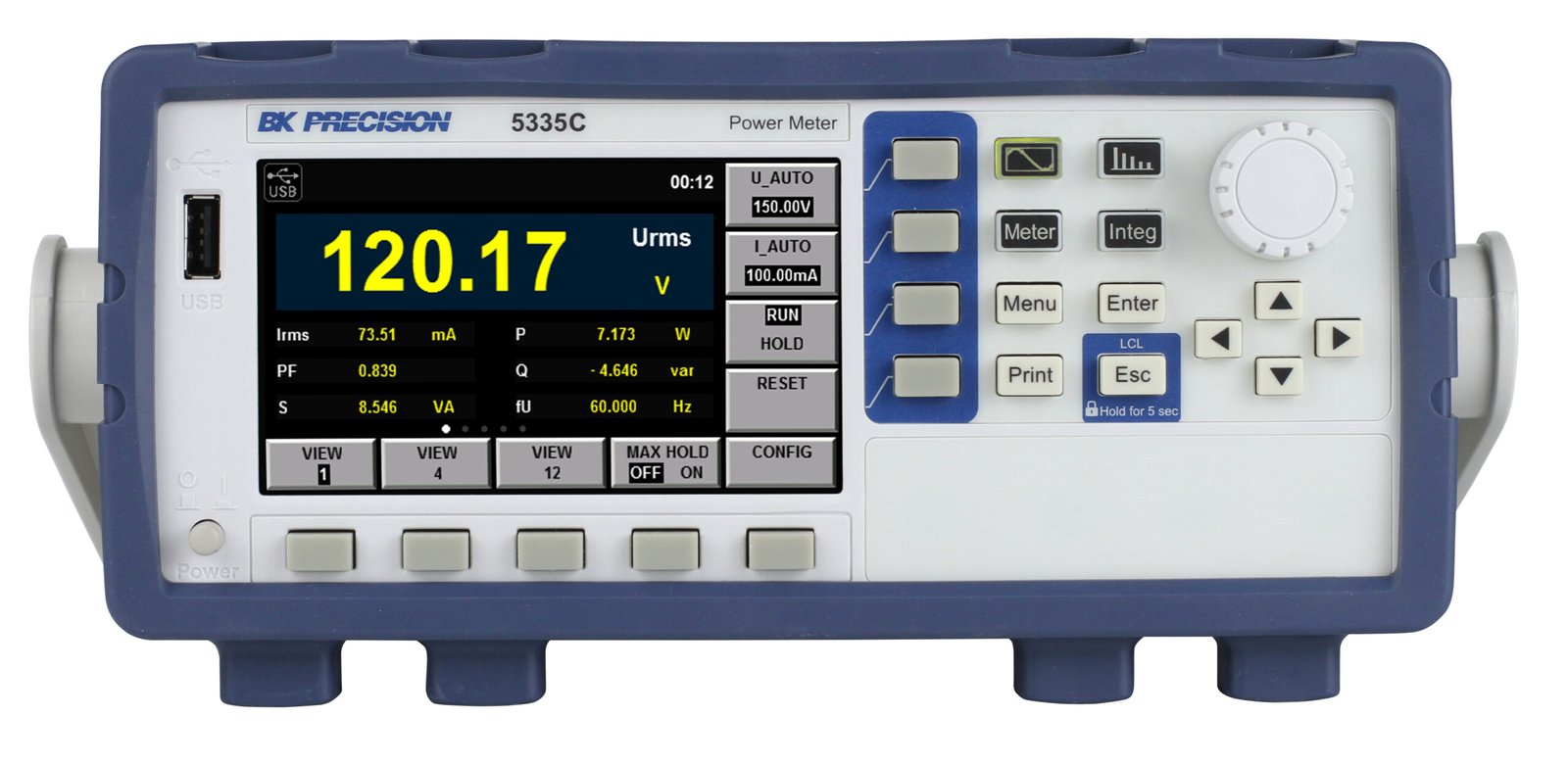

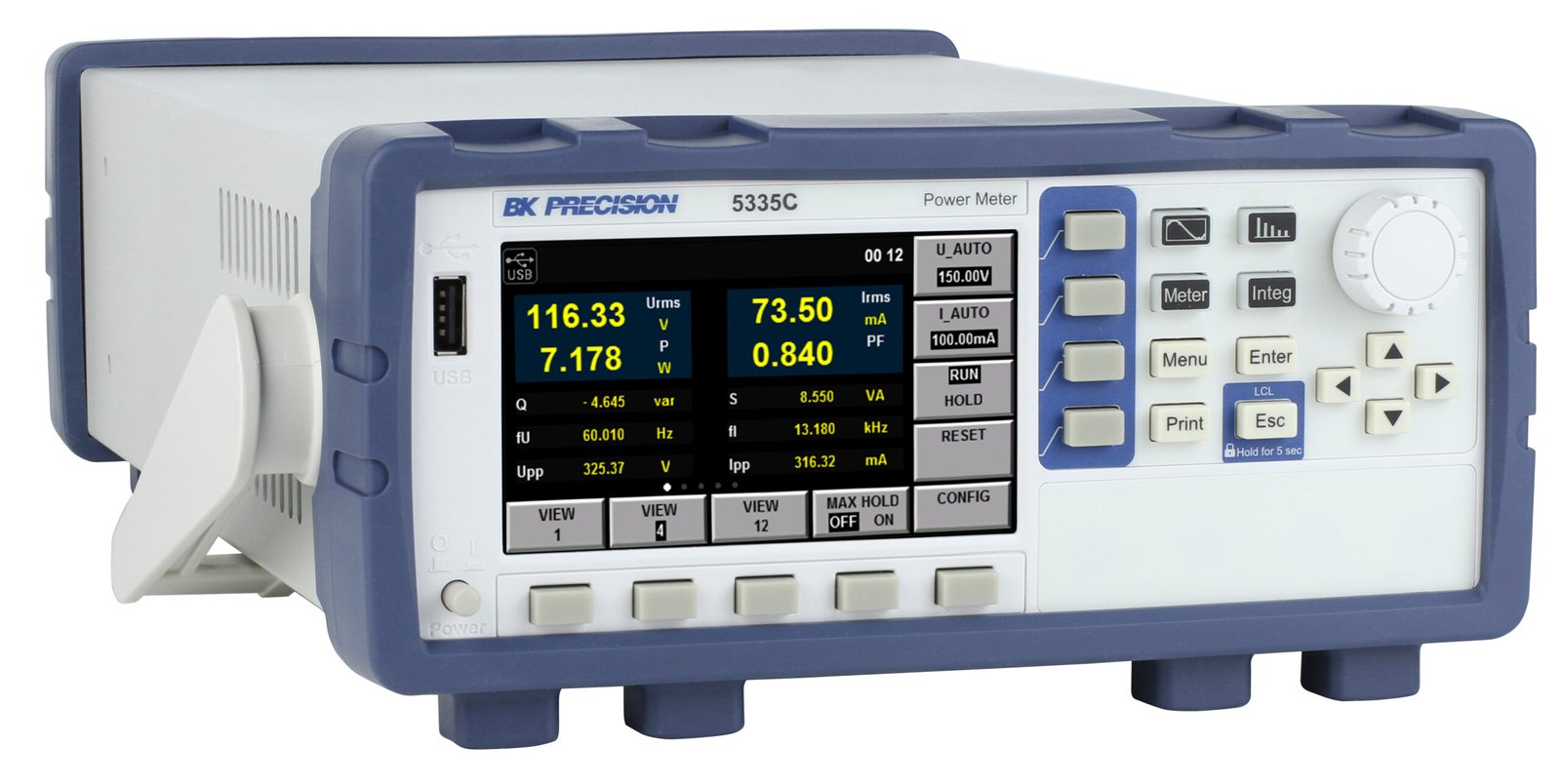

BK 5335C – Power Meter – No GPIB

• 600 Vrms ( Cat II ) and 20 Arms direct input ranges
• Frequency ranges DC, 0.5 Hz to 100 kHz
• 0.1% basic accuracy for voltage and current measurements
• 4.3-inch color LCD (TFT)
• Simultaneously measure and display up to 12 different measurement parameters

Measure power, electrical energy bought or sold back to the power grid, inverters, harmonics of motors, uninterruptible power supplies, appliances, and consumer electronics.

Rich Measurement Functions

Measure all AC and DC parameters, including power, current, voltage, power factor, frequency, and phase. Additionally, the meter features a powerful integration function, the ability to perform harmonic measurements to the 50th order and an oscilloscope mode for viewing voltage and current readings in the time domain.

12 real-time parameters can be measured and displayed simultaneously in user customizable views.

Intuitive user interface

The large 4.3 inch color LCD screen enables easy viewing of configuration and measurements. Use the dedicated function keys to select one of the 4 main measurement modes: meter, harmonic, integral or oscilloscope. The results are displayed in numeric and graphical format. Screenshots can be saved directly to a USB flash drive.
