BK 8602B – DC Electronic Load – 500V / 15A / 200W – No GPIB
43 people are viewing this product right now
$1,864.50
Shipping calculated at checkout.
Estimated delivery:5 days
500V, 15A, 200W DC Electronic Load – No GPIB
- Power: 200 W
- Voltage: 500 V
- Current: 15 A
- CC/CV/CR/CW operating modes
- Transient mode up to 25 kHz
- 16-bit resolution voltage and current measurement
- List mode function
- Adjustable slew rate in CC mode
- Short circuit test
- Built-in battery test function with voltage level, capacity level, and timer stop conditions, CR-LED mode to simulate the loading behavior of typical LEDs
Guarantee Safe and Secure Payment Checkout
Description
BK 8602B
- Power: 200 W
- Voltage: 500 V
- Current: 15 A
- CC/CV/CR/CW operating modes
- Transient mode up to 25 kHz
DC Electronic Load – 500V / 15A / 200W – No GPIB

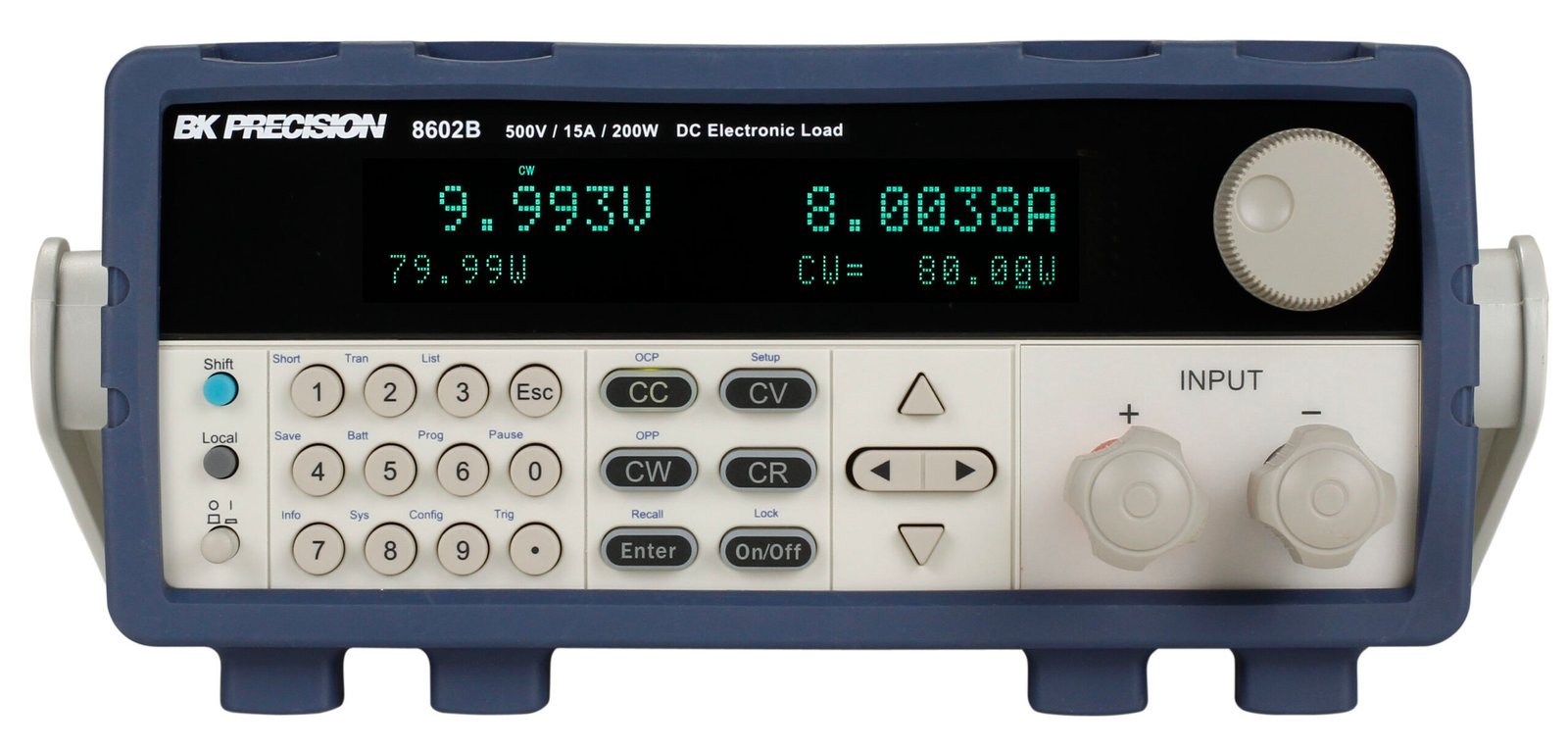

The BK Precision 8602 programmable DC electronic load provides the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient, operation speeds up to 25 kHz, and high 16-bit measurement resolution and accuracy, this DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.
This DC electronic load can operate in constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) mode. The instrument provides flexible triggering capabilities, analog current control and monitoring, and standard USB (USBTMC-compliant), GPIB, or RS-232 serial interfaces for remote communication.
Power Supplies/Electronic Loads Template | |
|---|---|
| Watts | 200 Watts |
| Max Current | 15 A |
| Max Voltage | 500 V |
| Min Current | 0 A |
| Min Voltage | 0 V |
| Programable | Yes |
| Triggering | Yes |
| Battery Test | Yes |
| Remote Sensing | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Interfaces I/O | Other, RS-232, USB |
| Product Weight | 9.9 LBS |
| Product Height | 3.5 IN |
| Product Length | 15.2 IN |
| Product Width | 8.5 IN |
| Shipping Weight | 11 LBS |
| Country of Origin | China |
| Shipping Height | 8.00 IN |
| Shipping Length | 19.50 IN |
| Shipping Width | 12.30 IN |
You must be logged in to post a review.
Manuals/Guides
Brochures
| Weight | 9.9 lbs |
|---|---|
| Dimensions | 15.2 × 8.5 × 3.5 in |
