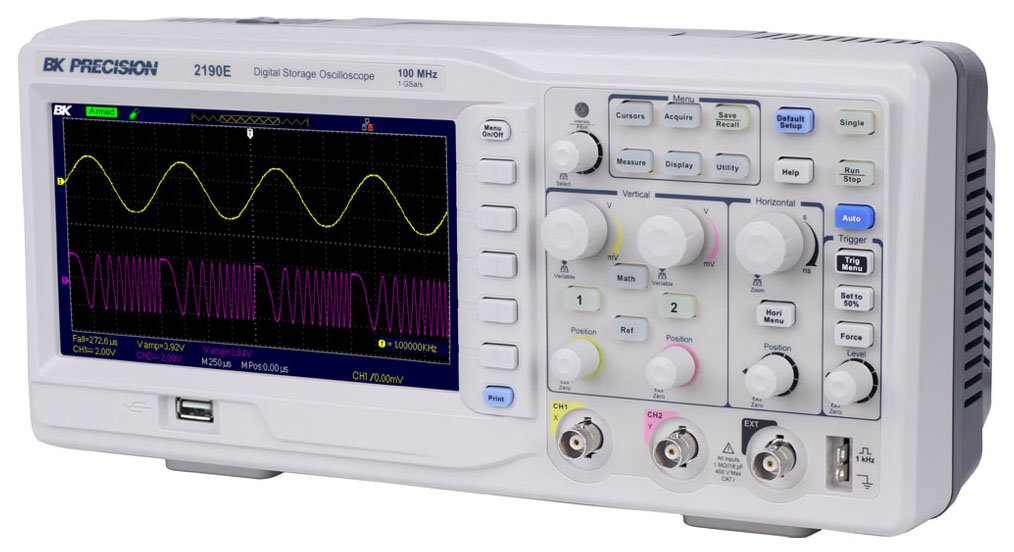

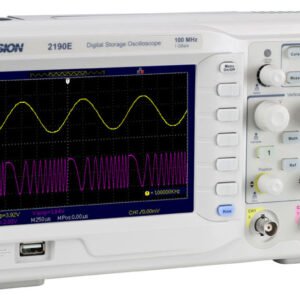

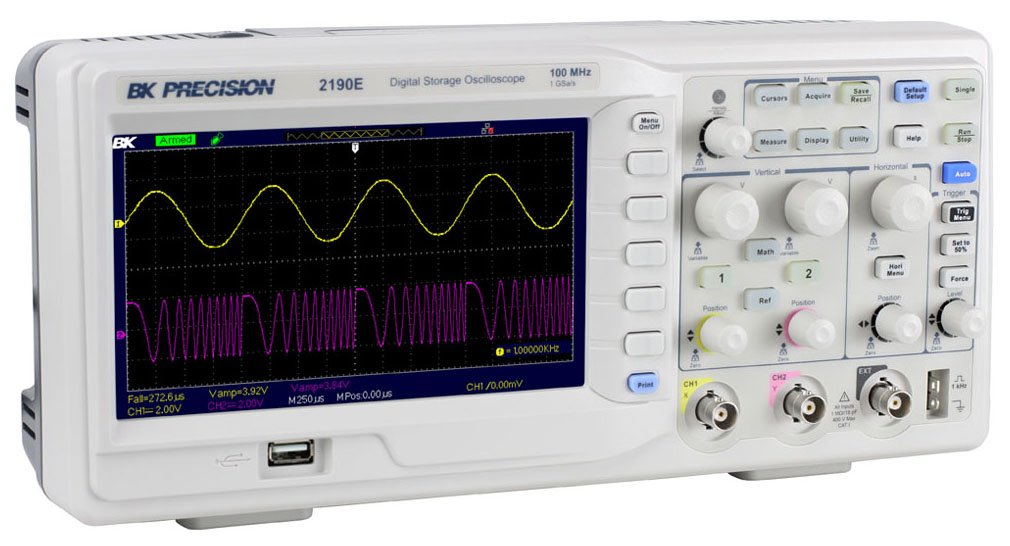

B&K Precision 2190E – 100 MHz, 1 GSa/s, 2-Ch Digital Storage Oscilloscope
8 people are viewing this product right now
$489.00
Shipping calculated at checkout.
Estimated delivery:3 days
100 MHz, 1 GSa/s Digital Storage Oscilloscope
- 100 MHz, I GSa/s sample rate
- 800×480 pixel 7″ TFT color display
- Long waveform memory up to 40,000 points
- Five different math functions – Add, Subtract, Multiply, Divide, and FFT
- Versatile triggering capabilities including pulse width, line-selectable video, slope, and alternating trigger
- 32 automatic measurements
- Advanced tools include digital filter with adjustable limits, pass/fail testing, and waveform recorder mode
- 12 different language user interfaces and context sensitive help
- Special EDU mode allows educators to disable Auto set button, Measure menu, and Cursors menu
- Front panel USB host port for saving and recalling waveform setups, data, and screen shots on a USB flash drive
- LAN and USBTMC-compliant USB device port for remote PC control
- GPIB connectivity with optional USB-to-GPIB adapter
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 2190E – 100 MHz, 1 GSa/s, 2-Ch Digital Storage Oscilloscope
- Long waveform memory up to 40,000 points
- Versatile triggering capabilities including pulse width, line-selectable video, slope, and alternating trigger
- Five different math functions – Add, Subtract, Multiply, Divide, and FFT
Digital Storage Oscilloscope
The 2190E combines performance and value all in one portable solution. With 100 MHz bandwidth and 1 GSa/s sample rate, these oscilloscopes offer advanced triggering capabilities, long waveform memory up to 40,000 points, and extensive features such as pass/fail limit testing, digital filtering, waveform recorder, and 32 automatic measurements.
Engineered to allow you to see more of your signal under test, the 2190E widescreen 7″ TFT display offers a significantly larger viewing area than typical economy oscilloscopes (5.7″).
Maximize productivity with PC connectivity via LAN, and USB. The downloadable PC software lets you easily capture, save, and analyze measurement results. All oscilloscope parameters can be controlled via a PC without the need for programming.
The 2190E oscilloscope is ideal for applications in education, design and debug, service and repair.
PC Connectivity
PC software is provided for seamless integration between the oscilloscope and PC. Capture and transfer waveforms, screen images, setups and measurement results to a Windows PC via the USB device port on the back of the instrument. A USB host port on the front and rear allows for quick and easy screen saving.
The Tools you need
Powerful measurement functions
Display and measure the input signal’s frequency spectrum. Select one of the 4 FFT windows: Rectangular, Hanning, Hamming, and Blackman. Use cursors to measure the spectral component’s magnitude and frequency.
Digital filtering
Filter out unwanted signal components such as various types of noise with built-in digital filters. Choose from Low-Pass, High-Pass, Band-Pass, and Band-Stop filters.
Waveform recorder
Monitor and analyze long-term signal behavior by recording data continuously over an extensive period of time and playing it back for post acquisition analysis. Data is recorded in a sequence of up to 2500 frames.
Delayed sweep/zoom
Use the oscilloscope’s delayed sweep feature to zoom in a particular area of a signal in real time while viewing the entire captured waveform simultaneously.
Large internal storage
Minimize debug time by saving and recalling setups and waveforms from internal memory. Save and recall up to 20 different oscilloscope setups and 10 different waveforms.
Pass/Fail testing
Generate user-defined pass/fail limits to quickly identify go/no go test results.
Front Panel

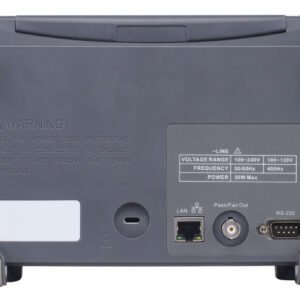

Rear Panel
Oscilloscopes/Digital Oscilloscopes Template | |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 2 |
| Sampling Rate | 1 GS/S |
| Memory | 40 kB |
| Rise Time | 3.5 ns |
| Screen Size | 7 IN |
| Bits | 8 |
Product General Attributes | |
| Unique Features | Large, 7” widescreen color display with 800 x 480 resolution offers a significantly larger viewing area than typical economy oscilloscopes (5.7”) |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | LAN / Ethernet, USB Host, USB |
| Product Weight | 5.5 LBS |
| Product Height | 5.35 IN |
| Product Length | 5.24 IN |
| Product Width | 12.7 IN |
| Data Logging | No Data Logging Unit has 40k internal memory |
| HTS/Schedule B Number | 9030.20.1000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 5.24 × 12.7 × 5.35 in |
