Description
B&K Precision 2512BÂ
- Bandwidth: 200 MHz
- Sample rate: 1 GSa/s
- Channels: 2 (non-isolated)
- Non-isolated 300 V CAT II input rating
- 12 Mpts memory depth

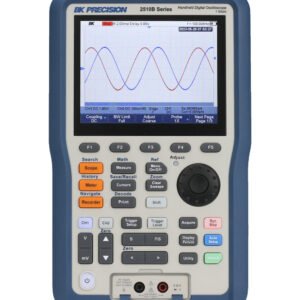

Handheld Digital Storage Oscilloscope (200 MHz, 2 Non-Isolated Channels)

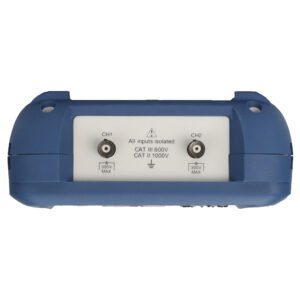

The 2510B Series handheld digital storage oscilloscopes combine floating measurement and recorder capabilities with a built-in digital multimeter (DMM), all in one portable and lightweight package. These versatile 100 MHz and 200 MHz bandwidth scopes provide two channels with 1 GSa/s sample rates, 12 Mpts memory depth, 38 automatic measurements, and multiple recording functions to capture transient or long-term signal behavior. Models 2515B and 2516B offer full isolation between both the oscilloscope channels, the multimeter channel, the power input, and the USB host and device ports.
Models 2515B and 2516B offer full isolation between both the oscilloscope channels, the multimeter channel, the power input and the USB host and device port.
The built-in 6000-count multimeter allows users to quickly transition from an oscilloscope to a DMM to measure DC/AC voltage and current, resistance, and capacitance, including diode and continuity tests.
These handheld DSOs feature many useful recording functions such as scope recorder and trend plot, which allows data logging from the oscilloscope and multimeter inputs. The scope recorder function provides sample rates up to 25 kSa/s, 50 MB internal memory, and support to write directly to an external drive for up to 2 GB. The trend plot allows users to log oscilloscope or meter measurements at a slower rate up to 10 Hz with a maximum memory depth of 3.6 M samples.
The 2510B Series handheld oscilloscopes are ideal for industrial applications, power systems, electronic design, and field test and service.
Series Comparison
| Model | Bandwidth | Channels | Sample rate | Typical applications |
| 2511B | 100 MHz | 2 non-isolated | 1 GSa/s | General electronics |
| 2512B | 200 MHz | 2 non-isolated | 1 GSa/s | General electronics |
| 2515B | 100 MHz | 2 fully isolated | 1 GSa/s | Power electronics and industrial |
| 2516B | 200 MHz | 2 fully isolated | 1 GSa/s | Power electronics and industrial |
Safety Rated High Bandwidth Oscilloscope Probes
All 2510B Series models come standard with high bandwidth, safety certified passive probes (one per channel) to help you get the most out of your scope.

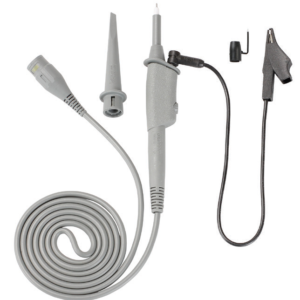

Probe Model PR250SA – Two 250 MHz bandwidth, x1/x10 probes rated for 300 V CAT II
Models 2511B and 2512B come with two 250 MHz bandwidth, x1/x10 probes rated for 300 V CAT II.
Probe Model PR250B – Models 2515B and 2516B come with two touch-protected 250 MHz bandwidth, x10 probes rated for 1000 V CAT II, 600 V CAT III measurements.
Oscilloscopes/Portable Oscilloscopes Template | |
|---|---|
| Bandwidth | 200 MHz |
| Channels | 2 |
| Sampling Rate | 1 GS/S (1000 MS/S) |
| Screen Type (Oscilloscopes) | TFT/LCD |
| Isolated Inputs | No |
| Screen Size | 5.6 IN |
| Bits | 8 |
| Color Screen | Yes |
| Rise Time | 1.7 ns |
| Memory | 12 MP [megapoints] (12288 kB) |
Product General Attributes | |
| Warranty | 3 YEARS |
| Interfaces I/O | USB Host, USB |
| Storage | USB Flash Drive |
| IP Rating | IP51 |
| Product Weight | 3.86 LBS |
| Product Height | 10.87 IN |
| Product Length | 2.68 IN |
| Product Width | 6.61 IN |
| Power Supply Voltage | Battery Powered |
