B&K Precision 2705B – Auto Ranging Tool Kit Digital Multimeter
27 people are viewing this product right now
Original price was: $88.00.$67.88Current price is: $67.88.
Shipping calculated at checkout.
Estimated delivery:5 days
Auto Ranging Tool Kit DMM
- Magnetic hanger
- One-handed operation
- Auto/manual ranging
- Auto power off
- DC voltage to 1000 V
- Measures up to 10 A (AC & DC)
- DC voltage to 1000 V
- AC voltage to 750 V
- Resistance to 34 Mohm
- Continuity test
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 2705B
- Magnetic hanger
- One-handed operation
- Auto/manual ranging
- Auto power off
- DC voltage to 1000 V

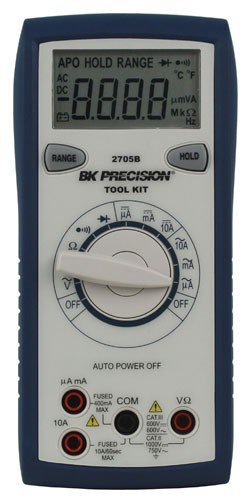

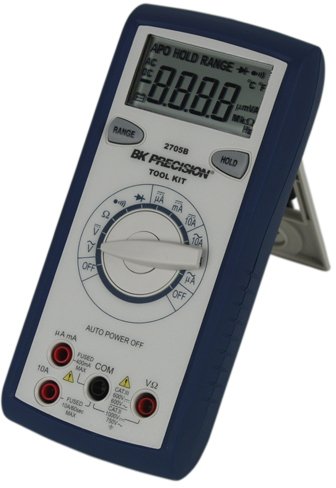

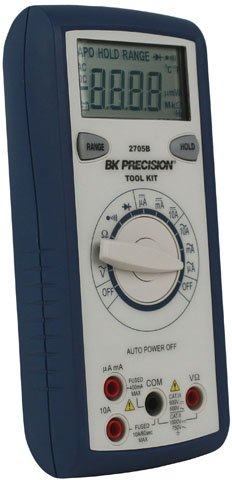

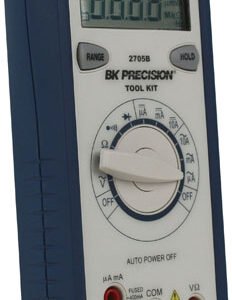

Auto Ranging Tool Kit Digital Multimeter
The 2705B is a full-featured auto-ranging DMM that combines performance, value and functionality. The 4000 count LCD can display resistance values up to 40 Mohm. With the auto-power-off feature, you won’t have to worry about accidental battery consumption. Value-packed features make this meter a must in every ’s “Tool Kit”.
- Diode test
- Magnetic hanging strap
- Continuity test
- Drop resistant case
B&K Precision’s 2700 Tool Kit Series
These excellent meters are for most jobs that require flexibility, accuracy, and speed. Value-packed features make these meters a must for everyone’s “Tool Kit”.
Magnetic Hanging Strap
This convenient feature allows you to hang your DMM on any magnetic metallic surface freeing up your hands for troubleshooting.
Single-handed Operation
The ergonomic design allows both left and right-handed users to rotate the knob while holding the meter in one hand. While one hand keeps the probe on the circuit, the other hand changes the meter’s function. This speeds up troubleshooting because you don’t have to locate the probe point in the circuit again.
Model Comparison
| 2712 | 2709B | 2708B | 2707B | 2706B | 2705B | 2704C | 2703C | |
| Ranging | Auto/Manual | Auto/Manual | Auto/Manual | Manual | Manual | Auto/Manual | Manual | Manual |
| True RMS | AC + DC | ✔ | ✔ | ✔ | – | – | – | – |
| Current | 10 A AC/DC | 10 A AC/DC | 10 A AC/DC | 10 A AC/DC | 200 mA AC/DC | 10 A AC/DC | 10 A AC/DC | 10 A DC |
| Capacitance | to 40 uF | to 66 mF | – | to 20 uF | to 20 mF | – | to 20 uF | – |
| Transistor Test | – | – | – | ✔ | – | – | ✔ | – |
| Frequency Counter | to 500 KHz | to 66 MHz | – | to 20 MHZ | to 40 kHz | – | to 20 MHz | – |
| Temperature | – | – | – | – | ✔ | – | – | – |
| Logic Probe | – | – | – | ✔ | – | – | ✔ | – |
| Backlight LCD | ✔ | ✔ | – | ✔ | – | – | – | – |
| Analog bar Graph | ✔ | – | ✔ | – | – | – | – | – |
| Battery test | – | – | – | – | – | – | – | ✔ |
| Auto Power Off | ✔ | ✔ | ✔ | – | ✔ | ✔ | – | – |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 1 mV Resolution AC Volts 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 mV Resolution DC Volts 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V |
| Maximum Current AC | 10 A |
| Minimum Current AC | 400 uA (0.4 mA) |
| Resolution AC Current | 10 mA Resolution AC Current 0.1 uA, 1 uA, 10 uA, 100 uA, 10 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 400 uA (0.4 mA) |
| Resolution DC Current | 10 mA Resolution DC Current 0.1 uA, 1 uA, 10 uA, 100 uA, 10 mA |
| Basic Accuracy V DC | ±(1.0 % rdg + 2 dgts) |
| # Digit Display | 3.75 |
| Counts | 3400 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | No |
| Capacitance | No |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | III CAT Rating CATII 1000V, CATIII 600V |
| CAT Voltage | 1,000 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | Magnetic Hanging Strap, Single-handed operation |
| Warranty | 1 YEARS |
| Product Weight | 0.62 LBS |
| Product Height | 165 MM (6.50 IN) |
| Product Length | 43 MM (1.69 IN) |
| Product Width | 78 MM (3.07 IN) |
| Shipping Weight | 2 LBS |
| Data Logging | No |
| Country of Origin | Taiwan |
| Shipping Height | 2.50 IN |
| Shipping Length | 7.00 IN |
| Shipping Width | 5.20 IN |
| Other Information | Ranges: 400 mV, 4 V, 40 V, 400 V, 1000V Resolution: 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V Accuracy: ?(1.0 % rdg + 2 dgts) Input Impedance: 400 mV: 100 MO; 4 V: 10 MO; 40 V to1000 V: 9.1 MO Overload Protection: 1000 VDC or 750 VACrms Ranges: 400 mV, 4 V, 40 V, 400 V, 750V Resolution: 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V Accuracy: 400 mV range at 50 Hz to 100 Hz ?(2.0 % rdg + 5 dgts) Input Impedance: 400 mV: 100 MO; 4 V: 10 MW; 40 V to 750 V: 9.1 MO Overload Protection: 1000 VDC or 750 VACrms Ranges: 400 uA, 4000 uA, 40 mA, 400 mA, 10 A Resolution: 0.1 uA, 1 uA, 10 uA, 100 uA, 10 mA Accuracy: 400 uA to 400 mA ranges: ?(2.0 % rdg + 2 dgts)10 A range: ?(3.0 % rdg + 3 dgts) Input Protection: 0.5 A/500 V & 10 A/600 V fast blow ceramic fuses 10A Input: 10 A for 60 sec max. followed by a 10 minute cooling period Ranges: 400 uA, 4000 uA, 40 mA, 400 mA, 10 A Resolution: 0.1 uA, 1 uA, 10 uA, 100 uA, 10 mA Accuracy: 20 mA to 200 mA ranges: ?(2.0 % rdg + 8 dgts)10 A range: ?(3.5 % rdg + 8 dgts) Input Protection: 0.5 A/500 V & 10 A/600 V fast blow ceramic fuses 10A Input: 10 A for 60 sec max. followed by a 10 minute cooling period Ranges: 400 O, 4 kO, 400 kO, 40 MO Resolution: 0.1 O, 1.0 O, 100 O, 10 kO Accuracy: 400 O to 400 kO ranges: ?(1.5 % rdg + 4 dgts)4 MO range: ?(2.5 % rdg + 4 dgts)40 MO range: ?(5.0 % rdg + 4 dgts) Open Circuit Voltage (typical): -0.45 VDC (-1.2 VDC on 340 O range) Overload Protection: 500 VDC/ACrms Test Current: 1.0 mA (typical) Resolution: 10 mV Accuracy: ?(3.0 % rdg + 3 dgts) Audible Indication: 0.25 V Open Circuit Voltage: 3.0 VDC (typical) Overload Protection: 500 VDC/ACrms Audible Indication: Less than 25 O Response Time: 500 ms Overload Protection: 500 VDC/ACrms |
