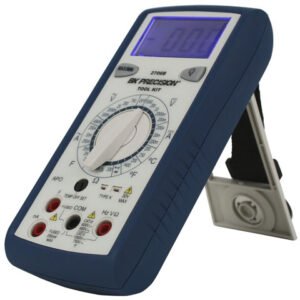

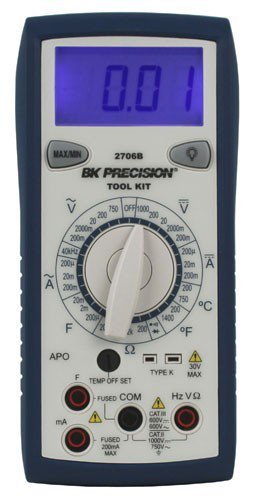

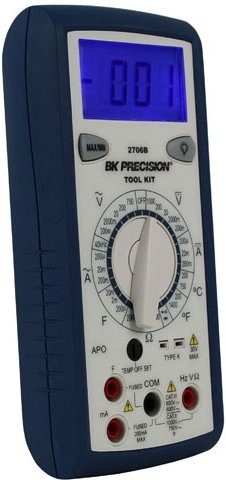

B&K Precision 2706B – Manual Ranging Tool Kit DMM with Temperature
34 people are viewing this product right now
Original price was: $113.30.$87.39Current price is: $87.39.
Shipping calculated at checkout.
Estimated delivery:5 days
Manual Ranging Tool Kit DMM with Temperature
- Auto power off
- DC voltage to 1000 V
- Resistance to 20 MΩ
- One-handed operation
- Magnetic hanger
- Bright blue LCD backlight
- AC voltage to 750 V
- Capacitance to 20 mF
- Continuity test
- Diode test
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 2706B
- Auto power off
- DC voltage to 1000 V
- Resistance to 20 MΩ
- One-handed operation
- Magnetic hanger
Manual Ranging Tool Kit DMM with Temperature
The 2706B is a versatile manual-ranging Digital Multimeter with temperature measurement. The 2000 count LCD has a bright blue backlight that allows the meter to be used in dimly lit environments. With the auto-power-off feature, you won’t have to worry about accidental battery consumption. Value-packed features make this meter a must in every ’s “Tool Kit”.
B&K Precision’s 2700 Tool Kit Series
These excellent meters are for most jobs that require flexibility, accuracy, and speed. Value-packed features make these meters a must for everyone’s “Tool Kit”.
Magnetic Hanging Strap
This convenient feature allows you to hang your DMM on any magnetic metallic surface freeing up your hands for troubleshooting.
Single-handed Operation
The ergonomic design allows both left and right-handed users to rotate the knob while holding the meter in one hand. While one hand keeps the probe on the circuit, the other hand changes the meter’s function. This speeds up troubleshooting because you don’t have to locate the probe point in the circuit again.
Model Comparison
| 2712 | 2709B | 2708B | 2707B | 2706B | 2705B | 2704C | 2703C | |
| Ranging | Auto/Manual | Auto/Manual | Auto/Manual | Manual | Manual | Auto/Manual | Manual | Manual |
| True RMS | AC + DC | ✔ | ✔ | ✔ | – | – | – | – |
| Current | 10 A AC/DC | 10 A AC/DC | 10 A AC/DC | 10 A AC/DC | 200 mA AC/DC | 10 A AC/DC | 10 A AC/DC | 10 A DC |
| Capacitance | to 40 uF | to 66 mF | – | to 20 uF | to 20 mF | – | to 20 uF | – |
| Transistor Test | – | – | – | ✔ | – | – | ✔ | – |
| Frequency Counter | to 500 KHz | to 66 MHz | – | to 20 MHZ | to 40 kHz | – | to 20 MHz | – |
| Temperature | – | – | – | – | ✔ | – | – | – |
| Logic Probe | – | – | – | ✔ | – | – | ✔ | – |
| Backlight LCD | ✔ | ✔ | – | ✔ | – | – | – | – |
| Analog bar Graph | ✔ | – | ✔ | – | – | – | – | – |
| Battery test | – | – | – | – | – | – | – | ✔ |
| Auto Power Off | ✔ | ✔ | ✔ | – | ✔ | ✔ | – | – |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| True RMS | No |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 1 V (1000 mV) Resolution AC Volts 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) Resolution DC Volts 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V |
| Maximum Current AC | 200 mA (0.2 A) |
| Minimum Current AC | 200 uA (0.2 mA) |
| Resolution AC Current | 100 uA (0.1 mA) Resolution AC Current 0.1 uA, 10 uA, 100 uA |
| Maximum Current DC | 200 mA (0.2 A) |
| Minimum Current DC | 200 uA (0.2 mA) |
| Resolution DC Current | 100 uA (0.1 mA) Resolution DC Current 0.1 uA, 10 uA, 100 uA |
| Basic Accuracy V DC | ±(0.5 % rdg + 1 dgts) |
| # Digit Display | 3.5 |
| Counts | 2000 . |
| Backlight | Yes |
| Manual/Autoranging | Manual |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III CAT Rating CATII 1000V, CATIII 600V |
| CAT Voltage | 1,000 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | No |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | With the auto-power-off feature you won’t have to worry about accidental battery consumption. |
| Warranty | 1 YEARS |
| Product Weight | 0.62 LBS |
| Product Height | 165 MM (6.50 IN) |
| Product Length | 43 MM (1.69 IN) |
| Product Width | 78 MM (3.07 IN) |
| Shipping Weight | 2 LBS |
| Data Logging | No |
| Country of Origin | Taiwan |
| Shipping Height | 2.25 IN |
| Shipping Length | 9.50 IN |
| Shipping Width | 6.50 IN |
| Other Information | Ranges: 200 mV, 2000 mV, 20 V, 200 V 1000 V Resolution: 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V Accuracy: ?(0.5 % rdg + 1 dgts) Input Impedance: 10 MO Overload Protection: 1000 VDC or 750 VACrms* Ranges: 200 mV, 2000 mV, 20 V, 200 V 750 V Resolution: 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V Accuracy: 200 mV & 20 V ranges: ?(1.2 % rdg + 5 dgts)200 V & 750 V ranges: ?(2.0 % rdg + 5 dgts) Input Impedance: 10 MO Overload Protection: 1000 VDC or 750 VACrms* Ranges: 200 uA, 20 mA, 200 mA Resolution: 0.1 uA, 10 uA, 100 uA Accuracy: ?(1.0% rdg + 1 dgts) Input Protection: 0.25 A/500 V fast blow ceramic fuse Ranges: 200 uA, 20 mA, 200 mA Resolution: 0.1 uA, 10 uA, 100 uA Accuracy: ?(1.5% rdg + 5 dgts) Input Protection: 0.25 A/500 V fast blow ceramic fuse Ranges: 200 O, 2 kO, 200 kO, 20 MO Resolution: 0.1 O, 1.0 O, 100 O, 10 kO Accuracy: 200 O to 200 kO ranges: ?(1.0 % rdg + 4 dgts)20MO range: ?(2.0 % rdg + 4 dgts) Open Circuit Voltage (typical): 0.3 VDC (3.0 VDC on 200 O) Overload Protection: 500 VDC/ACrms Ranges: 200 uF, 2 mF, 20 mF Resolution: 0.1 uF, 1.0 uF, 10 uF Accuracy: ?(4 % rdg + 10 dgts) Overload Protection: 0.25 A/500 V fast blow ceramic fuse Ranges: 10 Hz to 40 kHz Resolution: 1 Hz Accuracy: ?(0.1 % rdg + 3 dgts) Sensitivity: 3.5 Vrms minimum Overload Protection: 500 VDC/AC rms Test Current: 1.0 mA (typical) Resolution: 10 mV Accuracy: ?(1.5 % rdg + 3 dgts) Open Circuit Voltage: 3.0 VDC (typical) Overload Protection: 500 VDC/ACrms Audible Indication: Less than 100 O Response Time: 100 ms Overload Protection: 500 VDC/ACrms Ranges: -35?C to 750?C, -30?F to 1400?F Resolution: 0.1?C, 0.1?F Accuracy: 0?C to 400?C ?(1.0 % rdg + 1?C)-35?C to 0?C, 400?C to 750?C ?(3.0 % rdg + 3?C)-4?F to 750?F ?(1.0 % rdg + 2?F)-30?F to -4?F, 750?F to 1400?F ?(3.0 % rdg + 6?F) Sensor Type: K-type thermocouple Overload Protection: 60 VDC or 30 VACrms |
You must be logged in to post a review.
Manuals/Guides
| Weight | 0.62 lbs |
|---|---|
| Dimensions | 43 × 78 × 165 in |
