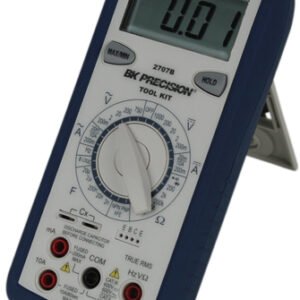

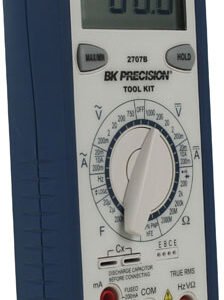

BK Precision 2707B – Manual Ranging True RMS Tool Kit Digital Multimeter
20 people are viewing this product right now
Original price was: $106.00.$85.18Current price is: $85.18.
Shipping calculated at checkout.
Estimated delivery:5 days
Manual Ranging True RMS Tool Kit DMM
- Auto power off
- DC voltage to 1000 V
- Resistance to 2000 MΩ
- One-handed operation
- Magnetic hanger
- Bright blue LCD backlight
- AC voltage to 750 V
- Capacitance to 20 uF
- Continuity test
- Diode test
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 2707B
- Auto power off
- DC voltage to 1000 V
- Resistance to 2000 MΩ
- One-handed operation
- Magnetic hanger
Manual Ranging True RMS Tool Kit Digital Multimeter
The 2707B is a full-featured manual ranging true RMS DMM that combines performance, value and functionality. The 2000 count LCD can display resistance values up to 2 Gohm, capacitance to 20 uF, or a transistors common-emitter gain value up to 1000. Value-packed features make this meter a must in every “Tool Kit”.
- Diode test
- Magnetic hanger
- Continuity test
B&K Precision’s 2700 Tool Kit Series
These excellent meters are for most jobs that require flexibility, accuracy, and speed. Value-packed features make these meters a must for everyone’s “Tool Kit”.
Magnetic Hanging Strap
This convenient feature allows you to hang your DMM on any magnetic metallic surface freeing up your hands for troubleshooting.
Single-handed Operation
The ergonomic design allows both left and right-handed users to rotate the knob while holding the meter in one hand. While one hand keeps the probe on the circuit, the other hand changes the meter’s function. This speeds up troubleshooting because you don’t have to locate the probe point in the circuit again.
Model Comparison
| 2712 | 2709B | 2708B | 2707B | 2706B | 2705B | 2704C | 2703C | |
| Ranging | Auto/Manual | Auto/Manual | Auto/Manual | Manual | Manual | Auto/Manual | Manual | Manual |
| True RMS | AC + DC | ✔ | ✔ | ✔ | – | – | – | – |
| Current | 10 A AC/DC | 10 A AC/DC | 10 A AC/DC | 10 A AC/DC | 200 mA AC/DC | 10 A AC/DC | 10 A AC/DC | 10 A DC |
| Capacitance | to 40 uF | to 66 mF | – | to 20 uF | to 20 mF | – | to 20 uF | – |
| Transistor Test | – | – | – | ✔ | – | – | ✔ | – |
| Frequency Counter | to 500 KHz | to 66 MHz | – | to 20 MHZ | to 40 kHz | – | to 20 MHz | – |
| Temperature | – | – | – | – | ✔ | – | – | – |
| Logic Probe | – | – | – | ✔ | – | – | ✔ | – |
| Backlight LCD | ✔ | ✔ | – | ✔ | – | – | – | – |
| Analog bar Graph | ✔ | – | ✔ | – | – | – | – | – |
| Battery test | – | – | – | – | – | – | – | ✔ |
| Auto Power Off | ✔ | ✔ | ✔ | – | ✔ | ✔ | – | – |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 1 V (1000 mV) Resolution AC Volts 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) Resolution DC Volts 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V |
| Maximum Current AC | 10 A |
| Minimum Current AC | 20 mA |
| Resolution AC Current | 10 mA Resolution AC Current 10 uA, 100 uA, 10 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 20 mA |
| Resolution DC Current | 10 mA Resolution DC Current 10 uA, 100 uA, 10 mA |
| Basic Accuracy V DC | ±(0.8 % rdg + 1 dgts) |
| # Digit Display | 3.5 |
| Counts | 2000 . |
| Backlight | Yes |
| Manual/Autoranging | Manual |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III CAT Rating CATII: Is for measurements performed on circuits directly connected to the |
| CAT Voltage | 1,000 V |
| Intrinsically Safe | No |
| Overload Protector | Yes Overload Protector 500 VDC/ACrms |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
Product General Attributes | |
| Unique Features | Magnetic Hanging Strap, Single-handed operation, Back Light / Easy-to-Read LCD |
| Warranty | 3 YEARS |
| Product Weight | 0.62 LBS |
| Product Height | 165 MM (6.50 IN) |
| Product Length | 43 MM (1.69 IN) |
| Product Width | 78 MM (3.07 IN) |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | 3A992 |
| Country of Origin | Taiwan |
| Other Information | Ranges: 200 mV, 2000 mV, 20 V, 200 V 1000 V Resolution: 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V Accuracy: ?(0.5 % rdg + 1 dgts) Input Impedance: 10 MO Overload Protection: 1000 VDC or 750 VACrms* Ranges: 200 mV, 2000 mV, 20 V, 200 V 750 V Resolution: 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V Accuracy: 200 mV & 20 V ranges: ?(1.2 % rdg + 5 dgts)200 V & 750 V ranges: ?(2.0 % rdg + 5 dgts) Input Impedance: 10 MO Overload Protection: 1000 VDC or 750 VACrms* Ranges: 200 uA, 20 mA, 200 mA Resolution: 0.1 uA, 10 uA, 100 uA Accuracy: ?(1.0% rdg + 1 dgts) Input Protection: 0.25 A/500 V fast blow ceramic fuse Ranges: 20 mA, 200 mA, 10 A Resolution: 10 uA, 100 uA, 10 mA Accuracy: 20 mA to 200 mA ranges: ?(2.0 % rdg + 8 dgts) 10 A range: ?(3.5 % rdg + 8 dgts) Input Protection: 0.5 A/500 V & 10 A/600 V fast blow ceramic fuses Ranges: 200 O, 2 kO, 200 kO, 20 MO Resolution: 0.1 O, 1.0 O, 100 O, 10 kO Accuracy: 200 O to 200 kO ranges: ?(1.0 % rdg + 4 dgts)20MO range: ?(2.0 % rdg + 4 dgts) Open Circuit Voltage (typical): 0.3 VDC (3.0 VDC on 200 O) Overload Protection: 500 VDC/ACrms Ranges: 2 nF , 20 nF, 200 nF, 2.0 uF, 20 uF Resolution: 1 pF, 10 pF, 100 pF, 1 nF, 10 nF Accuracy: ?(4 % rdg + 10 dgts) Overload Protection: Discharge capacitor before connecting Ranges: 2 kHz, 20 kHz, 200 kHz, 2 MHz, 20 MHz Resolution: 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz Accuracy: ?(0.1 % rdg + 3 dgts) Sensitivity: 2.0 Vrms minimum Overload Protection: 500 VDC/AC rms Test Current: 1.0 mA (typical) Resolution: 10 mV Accuracy: ?(1.5 % rdg + 3 dgts) Open Circuit Voltage: 3.0 VDC (typical) Overload Protection: 500 VDC/ACrms Audible Indication: Less than 100 O Response Time: 100 ms Overload Protection: 500 VDC/ACrms Ranges: 0 to 1000 Base Current: Approximately 10 uADC (VCE = 3.0 VDC) Threshold: Logic Hi (2.8 V +0.8 V) / Logic Lo (0.8 V +0.5 V) Indication: 40 msec beep at logic Lo Overload Protection: 500 VDC/AC rms |
You must be logged in to post a review.
Manuals/Guides
| Weight | 0.62 lbs |
|---|---|
| Dimensions | 43 × 78 × 165 in |
