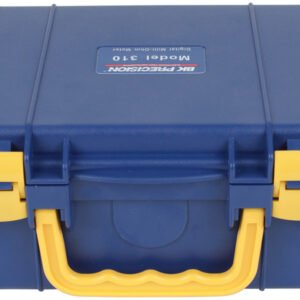

B&K Precision 310 – Digital Milli-Ohm Meter
49 people are viewing this product right now
Original price was: $612.00.$511.45Current price is: $511.45.
Shipping calculated at checkout.
Estimated delivery:5 days
Digital Milli-Ohm Meter
- Four wire Kelvin lead measurements
- Over-voltage and over-temperature protection
- 5 ranges with 100µ ohm max resolution
- Water-resistant case with shoulder strap
- Auto Power Off
- IEC/EN 61010-1 / CE
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 310 – Digital Milli-Ohm Meter
- Over-voltage and over-temperature protection
- 5 ranges with 100µ ohm max resolution
- Water-resistant case with shoulder strap
- Auto Power Off
The model 310 Digital Milli-Ohm Meter is used to ensure the continuity and integrity of a wire, cable, conduit, or any electrical connection. The 310 has a display resolution of 100 micro-ohms and has a professional four-wire Kelvin test lead set included to ensure accurate readings. The heavy-duty case has a rubber seal to make the unit water resistant and a convenient shoulder strap.
Applications
The model 310 Digital milli-ohm meter, with its measuring range of 100 μΩ to 2000 Ω, is suitable for a wide range of applications such as:
- Measuring the winding resistance of electric motors, generators, and transformers
- Bond testing in mines, aircraft, railways, ships, domestic and industrial wiring installations
- Measuring the ring main continuity testing in industrial and domestic wiring installations
- Measuring resistance in electronic equipment such as shunts, PCB tracks, switch and relay resistance
- Checking compression joints on overhead lines
- Testing and maintenance of switchboard /sub-station equipment on such items as fuses, joints, contacts, and bonds
Micro / Milli / Meg Ohmmeters/Milli-Ohmmeter Template | |
|---|---|
| Style (Milli-Ohmmeter) | Portable |
| Line Power or Battery power | Battery Power |
| Minimum Resistance | 100 u Ohms (0.0001 Ohms) |
| Maximum Resistance | 2000 Ohms |
| Variable Test Current | Yes |
| Maximum Current | 100 mA (0.1 A) |
| Minimum Current | 1 mA (1000 uA) |
| Selectable Ranges | Yes |
| Alarm | No |
| Kelvin Four-Terminal Measurement | Yes |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| IP Rating | IP54 |
| Product Weight | 3.4 LBS |
| Product Height | 4.33 IN |
| Product Length | 7.48 IN |
| Product Width | 9.82 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | EAR99 |
| Calibration Included | |
| Battery Type | AA Battery Type 8 x AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
| Weight | 3.4 lbs |
|---|---|
| Dimensions | 7.48 × 9.82 × 4.33 in |
