Description
B&K Precision 5492C
- Displayed Digits: 5 1/2
- High-contrast 4.3-inch full color LCD
- Measurement speed up to 1000 readings/s
- DCV basic accuracy up to 35 ppm (0.0035%)

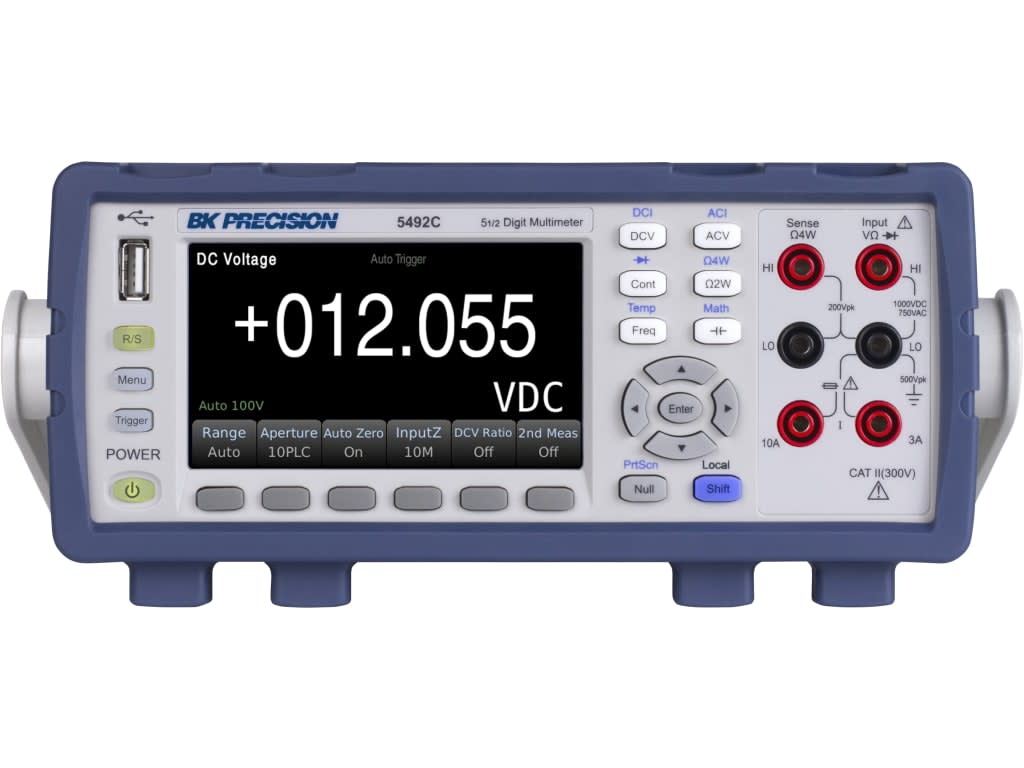

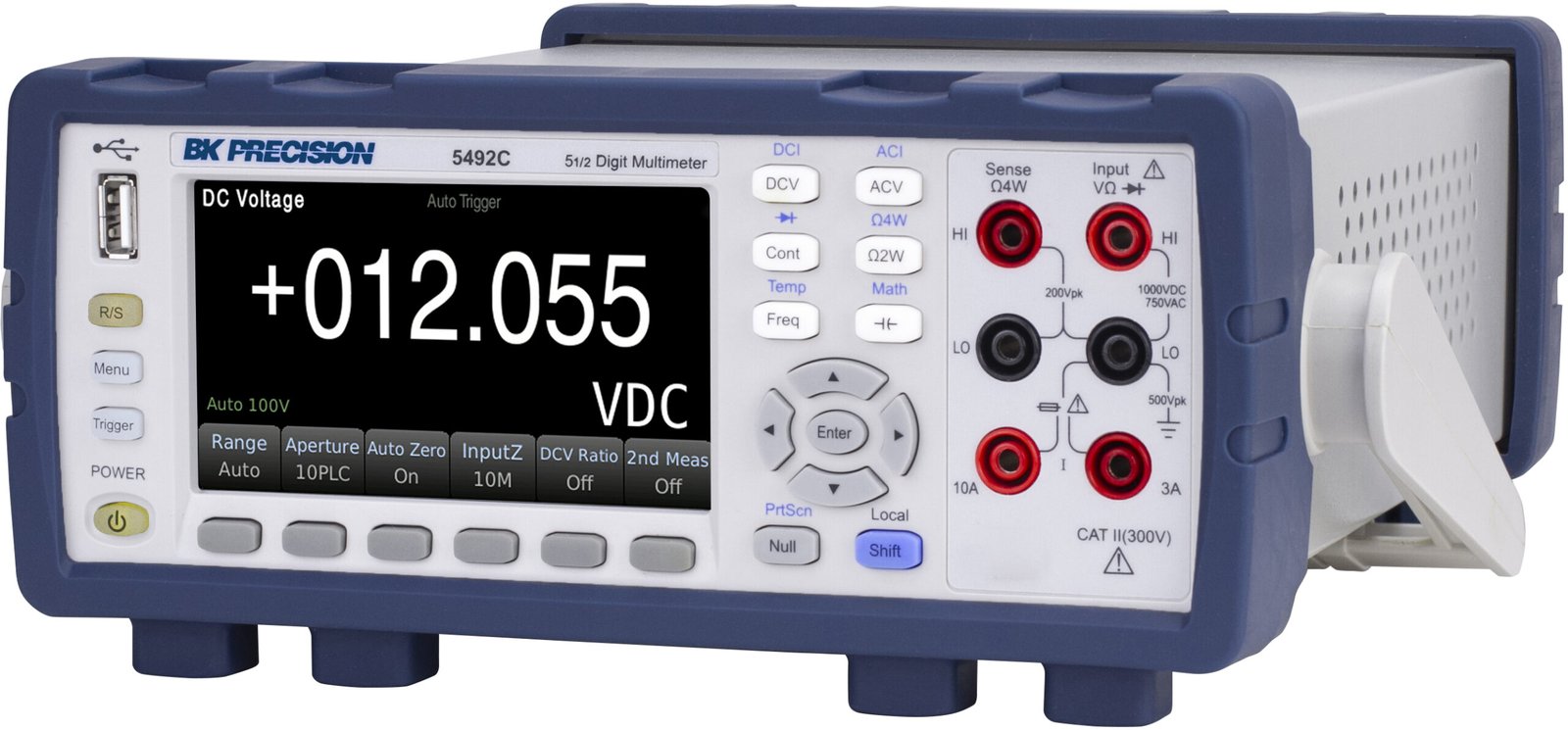

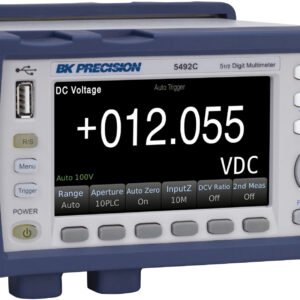

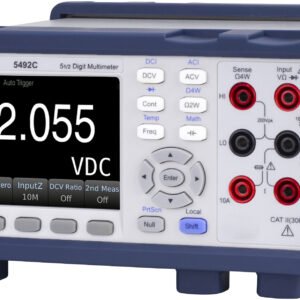

5 1/2 Digital Benchtop Multimeter
The 5492C 5 1/2-digit bench multimeter is designed for accuracy, repeatability, and ease-of-use. A wide measurement range with speeds up to 1000 readings per second, and a basic DCV accuracy of up to 35 ppm deliver stable measurement results quickly and accurately. This general-purpose meter is well suited for demanding engineering, production, and service applications.
The intuitive 4.3-inch LCD offers a variety of measurement display modes including numeric, bar meter, trend chart, and histogram. The built-in math functions, statistics display, and dual measurement capabilities offer convenient ways to capture and analyze measurement data.
Multimeters Template | |
|---|---|
| Style | Bench |
| Measures AC V | Yes |
| Measures DC V | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 750 V |
| Maximum Voltage DC | 1000 V |
| Maximum Current AC | 10 A |
| Minimum Current AC | 1 nA (0.000001 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 1 nA (0.000001 mA) |
| # Digit Display | 5.5 |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Product Weight | 5.5 LBS |
| Product Height | 3.93 IN |
| Product Length | 18.00 IN |
| Product Width | 8.85 IN |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | EAR99 |
| Country of Origin | China |
