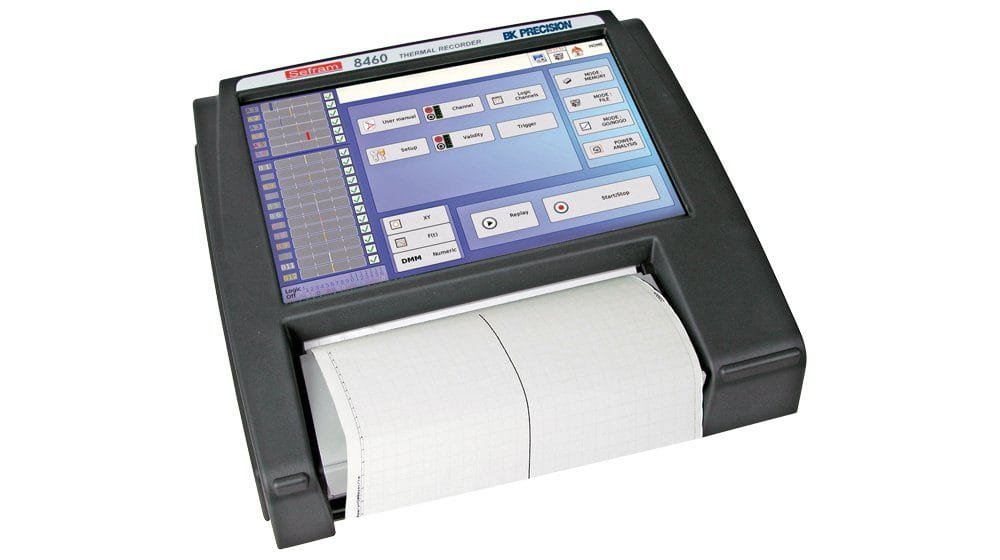

BK Precision 8460 – High-Speed Data Acquisition System with Printer

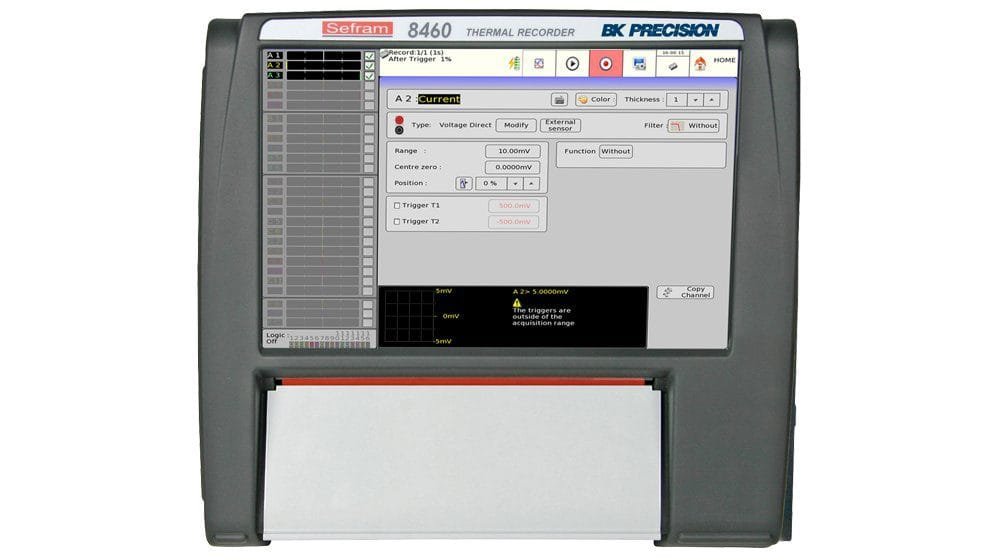

The Model 8460 is a versatile high-speed data acquisition recorder with an integrated thermal printer. Measurement results can be viewed on the 15.4” touchscreen display, saved to the large internal hard drive, and printed on continuous 270mm wide-format paper.

With 3 slots for dedicated input modules, this system can be configured to your specific application. Choose any combination of universal, isolated high voltage, multiplexed, or strain gauge input modules for up to 36 analog inputs.

For capturing high-speed or transient signals, the 8460 can simultaneously acquire and record 18 inputs at 1 MSa/s in memory mode. A variety of start and stop conditions are available including trigger on analog channel(s) level or edge, logic channel high or low, or through a designated date and time. You can also choose from a variety of actions to be performed when the recording is stopped including sending emails, printing data in memory, and changing the setup file. Additionally, the secondary file function allows you to record low and high-speed data in separate files to reduce file sizes and minimize storage usage.

The intuitive user interface makes setup easy, and measurement results can be viewed graphically or numerically on the display while data is simultaneously recorded or printed. Built-in analysis tools include a mathematical function editor and dedicated power quality analysis mode for analyzing single and 3-phase power networks. Display options include measured voltages and currents, calculated values, vector diagrams, and harmonics.

Connect to the 8460 remotely via the built-in LAN interface or optional USB WiFi. You can remotely control the unit, transfer data and configuration files, and view live data on a PC.

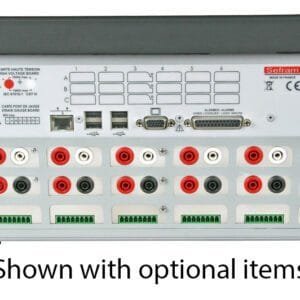

Please note: the image below shows measurement boards which are sold separately.

The DAS1700 and 8460 are similar instruments, but not the same. While they do use the same measurement boards, there are differences in available options, as well as standard features.

The chart below highlights the main differences in each.

The 8460 can hold any combination of up to 3 measurement boards. Please note: boards are sold separately.

• DAS916006000 – High Voltage Board
• DAS984401000 – Universal Input Board
• DAS984402000 – Multiplexed Board
• DAS984402500 – Strain Gauge Board
