B&K Precision 8625 – 6000W Programmble DC Electronic Load
36 people are viewing this product right now
$17,589.00
Shipping calculated at checkout.
Estimated delivery:5 days
120V, 720A, 6000W DC Electronic load with GPIB
- Power: 6000 W
- Voltage: 120 V
- Current: 720 A
- CC/CV/CR/CW operating modes
- Transient mode up to 25 kHz
- 16-bit resolution voltage and current measurement
- List mode function
- Adjustable slew rate in CC mode
- Short circuit test
- Built-in battery test function with voltage level, capacity level, and timer stop conditions
Guarantee Safe and Secure Payment Checkout
Description

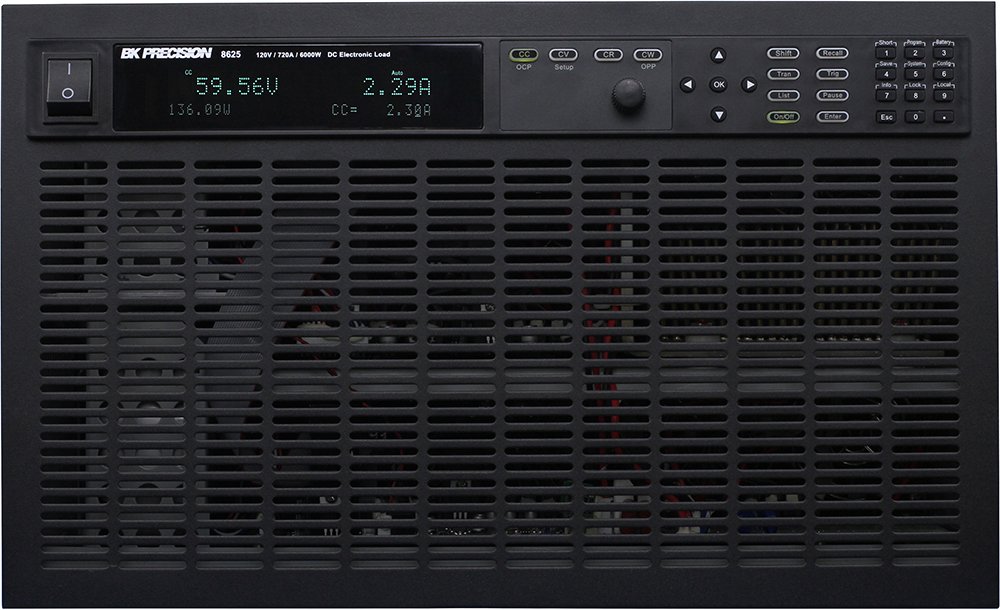

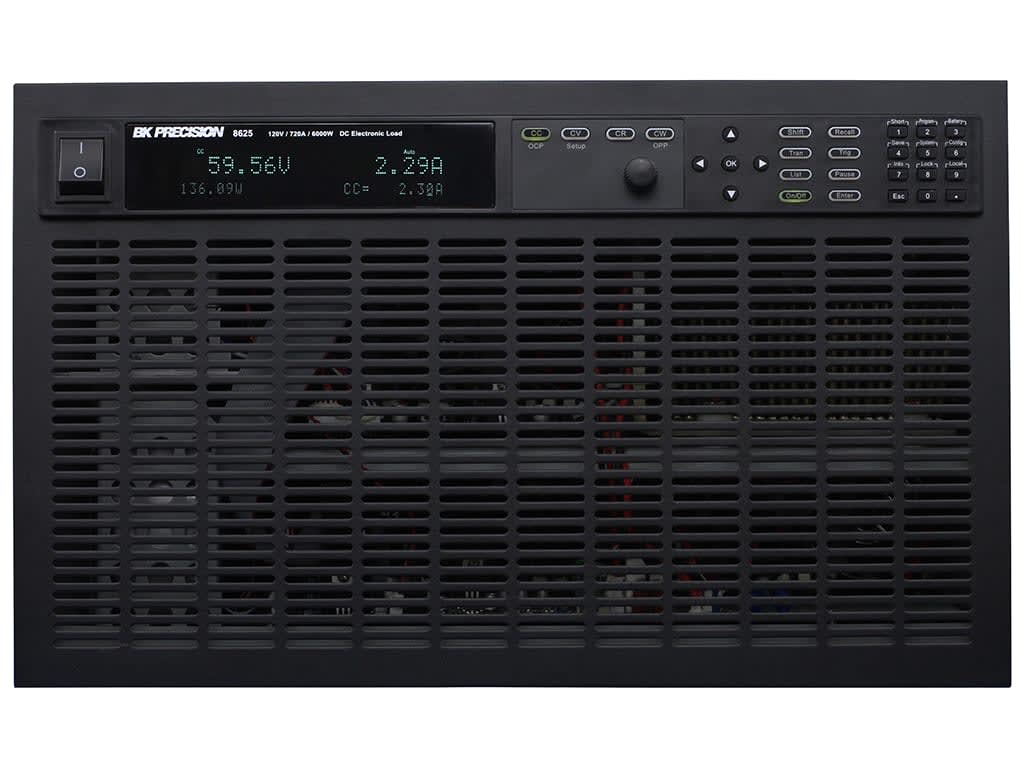

BK Precision 8625
Power: 6000 W
- Voltage: 120 V
- Current: 720 A
- 16-bit resolution voltage and current measurement
- CR-LED mode to simulate the loading behavior of typical LEDs
6000W Programmble DC Electronic Load
The BK Precision 8625 programmable DC electronic load provides the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds up to 25 kHz, and high 16-bit measurement resolution and accuracy, this DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.
This DC electronic load can operate in constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) mode. The instrument provides flexible triggering capabilities, analog current control and monitoring, and standard USB (USBTMC-compliant), GPIB, or RS-232 serial interfaces for remote communication.
Power Supplies/Electronic Loads Template | |
|---|---|
| Watts | 6500 Watts |
| Max Current | 720 A |
| Max Voltage | 120 V |
| Min Current | 0 A |
| Min Voltage | 0 V |
| Programable | Yes |
| Triggering | Yes |
| Battery Test | Yes |
| Remote Sensing | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | GPIB, RS-232, Remote Sense, USB |
| Product Weight | 142 LBS |
| Product Height | 10.5 IN |
| Product Length | 23.2 IN |
| Product Width | 17.3 IN |
| Shipping Weight | 175 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 8504.40.9540 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
You must be logged in to post a review.
| Weight | 142 lbs |
|---|---|
| Dimensions | 23.2 × 17.3 × 10.5 in |
