B&K Precision 891 – Benchtop LCR Meter 300 kHz

• Best accuracy: 0.05%
• Test frequency: 20 Hz – 300 kHz
• Test levels: 0.5 Vrms and 1 Vrms selectable
• Measurement parameters: C/L/R/G/B/Y/D/Q/ θ /DCR
• Compact 2U half-rack form factor with 4.3” color display
• 0.05% best impedance accuracy
• Fully adjustable test frequency from 20 Hz to 300 kHz with 4-digit resolution

The BK Precision 891 is a compact, precise, and versatile LCR meter capable of measuring inductors, capacitors, and resistors at DC or from 20 Hz to 300 kHz. The instrument’s 2U half-rack form factor is suitable for the bench or rack mount installation. A large color display with all important parameters and measurements visible on one screen makes this meter easy to operate.

The instrument’s convenient bin sorting function enables quick sorting of components in different bins defined by the user. A linear and logarithmic sweep function is also provided to characterize components over any range of frequencies from 20 Hz to 300 kHz.

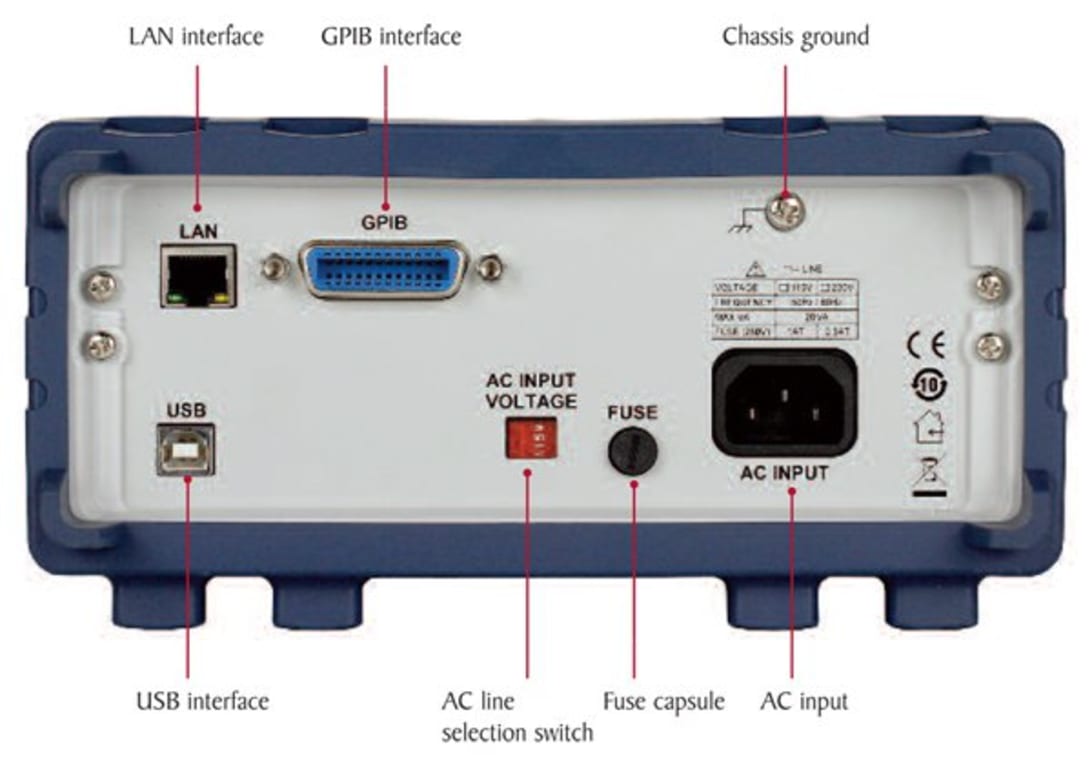

Standard USB, GPIB, and LAN interfaces enhance your productivity by providing remote control capabilities to perform daily operations in production, quality control, and laboratory environments.

USB host port

Connect your USB flash drive to conveniently store and recall configurations, measurements, and sweep test results.

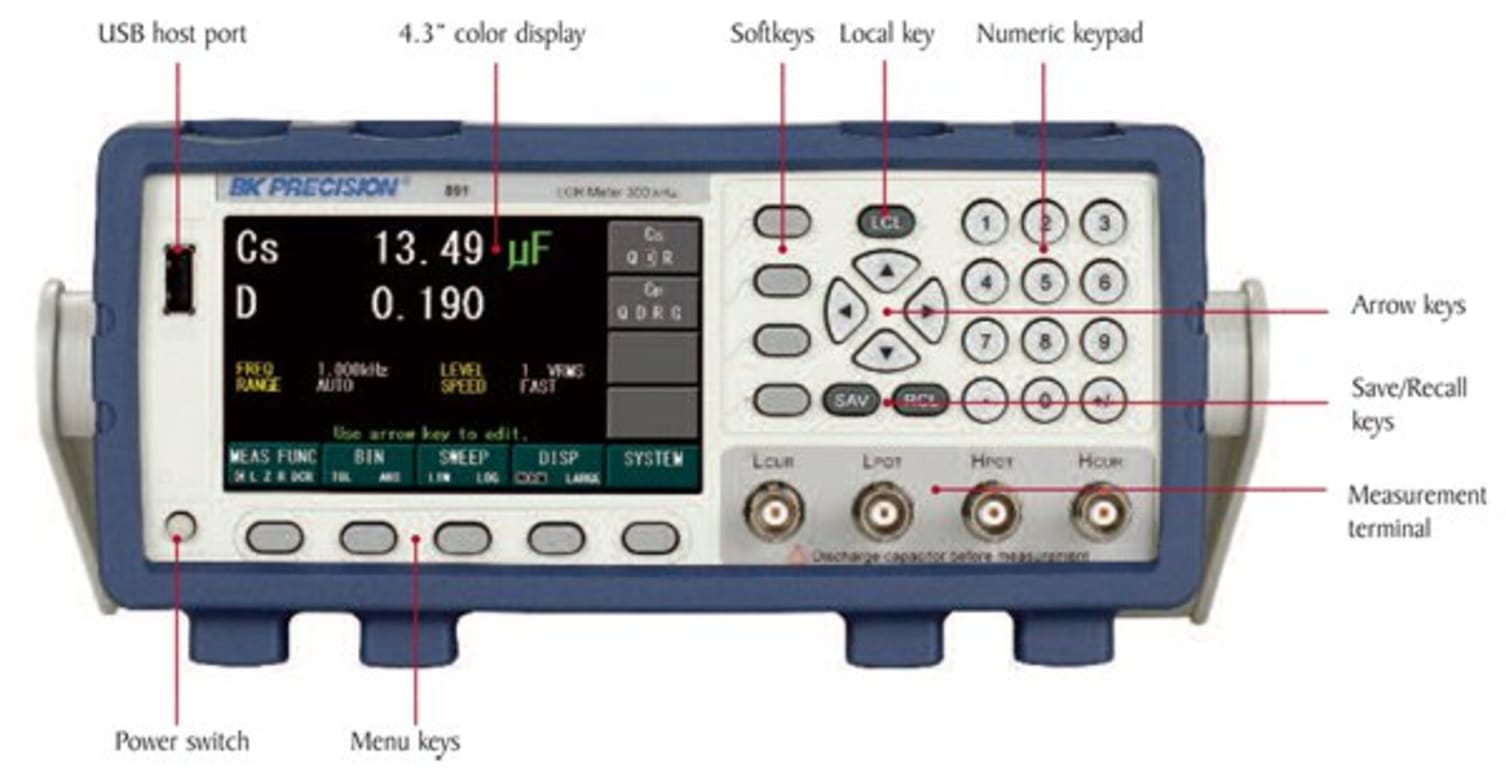

Intuitive user interface

Easily change test parameters using the menu-driven front panel keypad and easy-to-read color LCD. Convenient function keys let users quickly save/recall up to 100 measurement setups.

Flexible test accessories

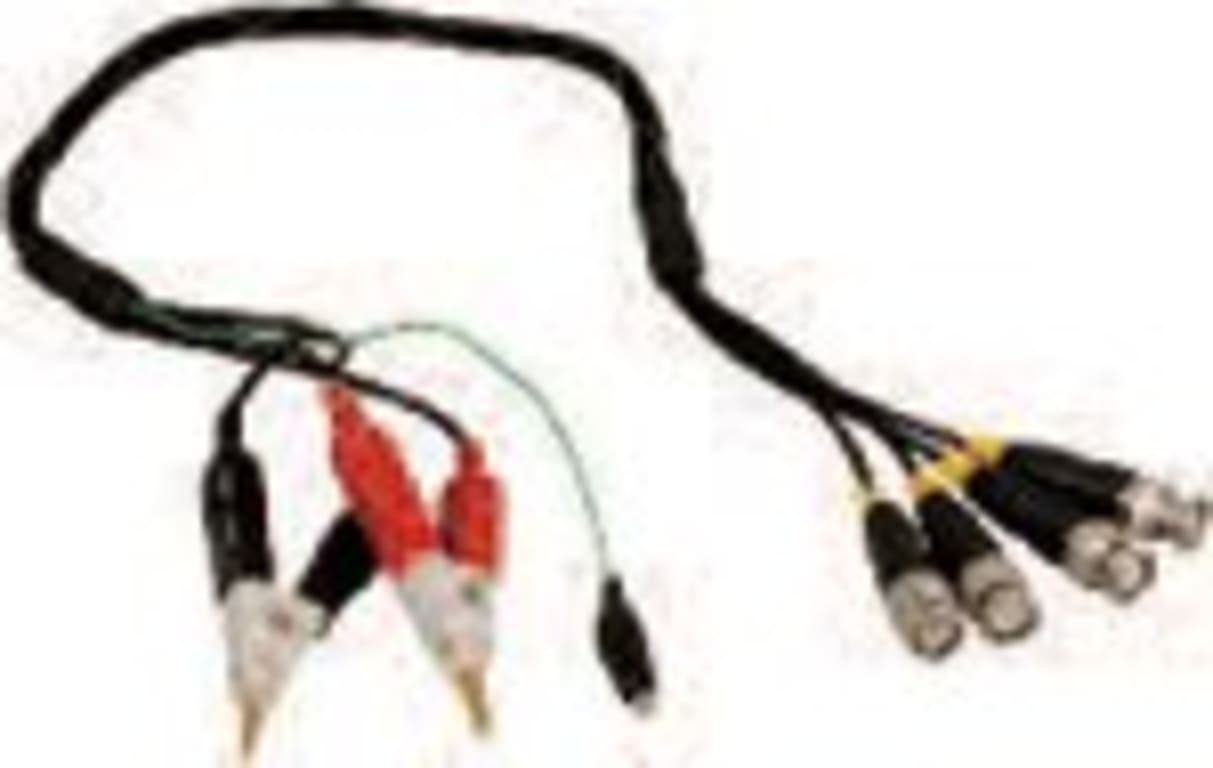

Each unit comes standard with Kelvin clip test leads for 4-wire measurements. The optional test fixture allows users to conveniently measure axial and radial lead type components.

The LCR meter can be programmed remotely via the USB (virtual COM), GPIB, and LAN interface using SCPI commands.

Bin comparator sorting function

Quickly sort components with the instrument’s 9 primary BINs, 1 secondary BIN, and 1 out-of-spec BIN. The results can be displayed on a table or histogram and saved to a USB flash drive. High and low limits for each bin can be set up in absolute or tolerance mode with Pass/Fail beep.

Characterize components up to 300 kHz using a 300-point linear or logarithmic sweep. Measured values for each frequency point can be read directly on the display. Sweep results can be displayed on a graph or table and then saved to a USB flash drive or read out through the remote interface.
