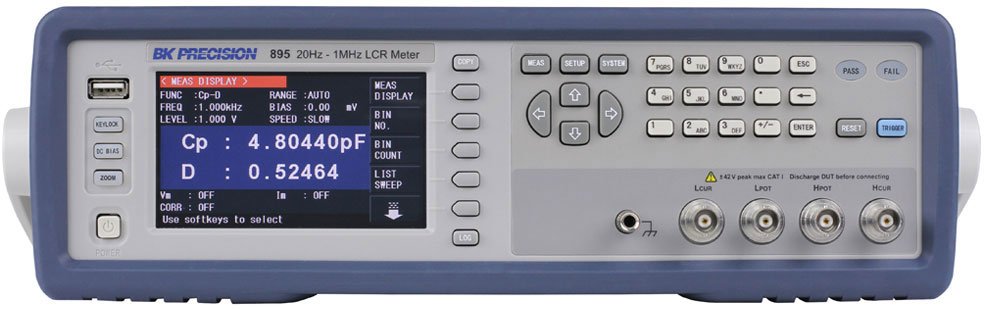

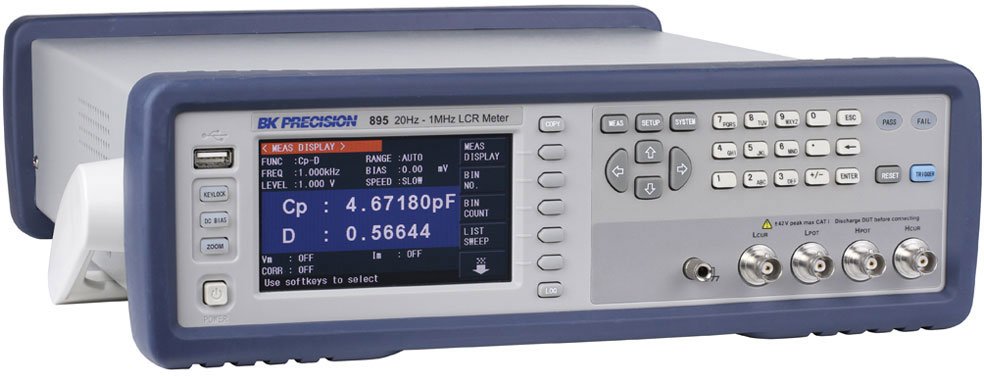

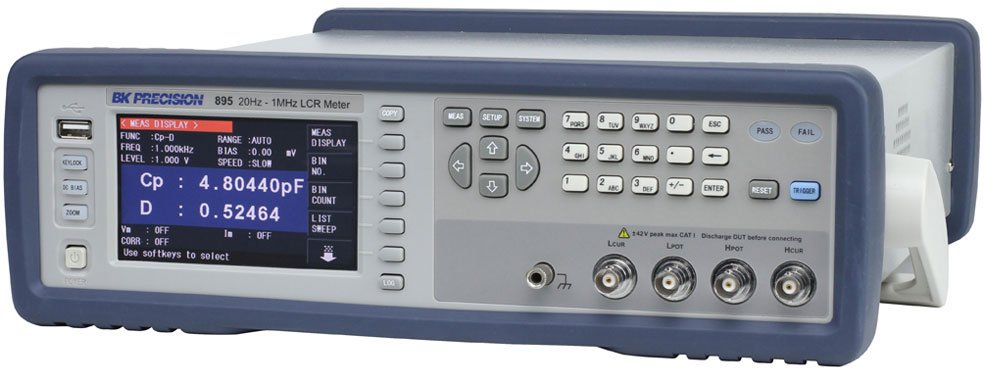

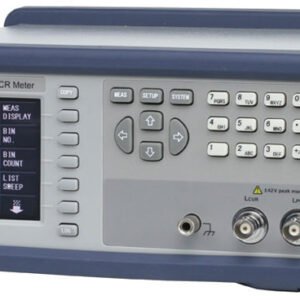

B&K Precision 895 – 1 MHz Bench LCR Meter

• Test Frequency: 1 MHz
• AC test signal voltage adjustable up to 2 Vrms
• Built-in DC bias source adjustable from -5V to +5V / -50 mA to +50 mA
• Auto-level control to maintain the measurement signal applied to the DUT at a constant level
• 4-terminal fixture and Kelvin clip test leads included

The 895 is a high accuracy LCR meter capable of measuring inductance, capacitance, and resistance of components and materials at DC or from 20 Hz to 1 MHz respectively. This LCR meter provides flexible AC and DC test signal configuration. AC test signal voltage is variable from 5 mVrms to 2 Vrms, the AC current is adjustable up to 66.7 mArms, depending on the AC impedance selected, and a DC bias signal can be added. The vivid 4.3-inch TFT LCD offers a clear view of all measured and setting values along with BIN sorting comparator results and a handy Zoom feature that enlarges the measured values to full screen. With a basic accuracy of 0.05%, auto level control (ALC), open / short / load correction and cable length compensation, this meter is perfect tools for R&D, manufacturing and quality control applications.
