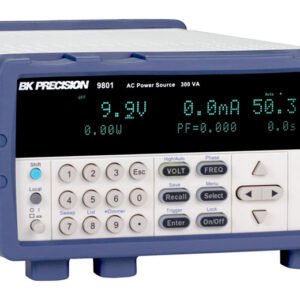

B&K Precision 9801 – 300 VA Programmable AC Power Source
20 people are viewing this product right now
$2,827.00
Shipping calculated at checkout.
Estimated delivery:3 days
AC Power Source 300 VA
- Max Voltage: 0 – 300 V
- Max Current: 0 – 3 A
- Max Power: 300 VA
- Standard USB (USBTMC-compliant), RS232, and LAN interfaces
- Output frequency adjustable from 45 Hz – 500 Hz
- Output frequency adjustable from 45 Hz – 500 Hz
- Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 – 300 V
- Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time
- Adjustable phase angle control
- Built-in PLD and dimmer simulation
Guarantee Safe and Secure Payment Checkout
Description
BK Precision 9801
- Max Voltage: 0 – 300 V
- Max Current: 0 – 3 A
- Max Power: 300 VA
- Standard USB (USBTMC-compliant), RS232, and LAN interfaces
Programmable AC Power Source
The BK Precision 9801 is both a programmable AC source and measurement tool. This fully programmable linear AC source delivers a maximum of 300 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angles from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak, frequency, power factor (PF), apparent power, true power, and elapsed output time.
The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.
Power Supplies/AC Power Supplies Template | |
|---|---|
| Output Capacity | 300 VA (300 Watts) |
| Meter Type | Digital |
| Variable Frequency | Yes |
| Programmable | Yes |
| Linear/Switching | Linear |
| Outputs | Single |
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 300 V |
| Current Output 1 | Variable |
| Max Current Output 1 | 12 A |
| Output Adaptor Plug | European, Multi, US |
| Max Display Resolution Current | 0.1 mA (0.0001 A) |
| Max Display Resolution Voltage | 0.1 V (100 mV) |
| Constant current/voltage | No |
| Remote Sensing | No |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | LAN / Ethernet, RS-232, USB |
| Product Weight | 20.94 LBS |
| Product Height | 3.47 IN |
| Product Length | 17.83 IN |
| Product Width | 8.45 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 8504.40.9580 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
| UPC | 817050980103 |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 20.94 lbs |
|---|---|
| Dimensions | 17.83 × 8.45 × 3.47 in |
