Description

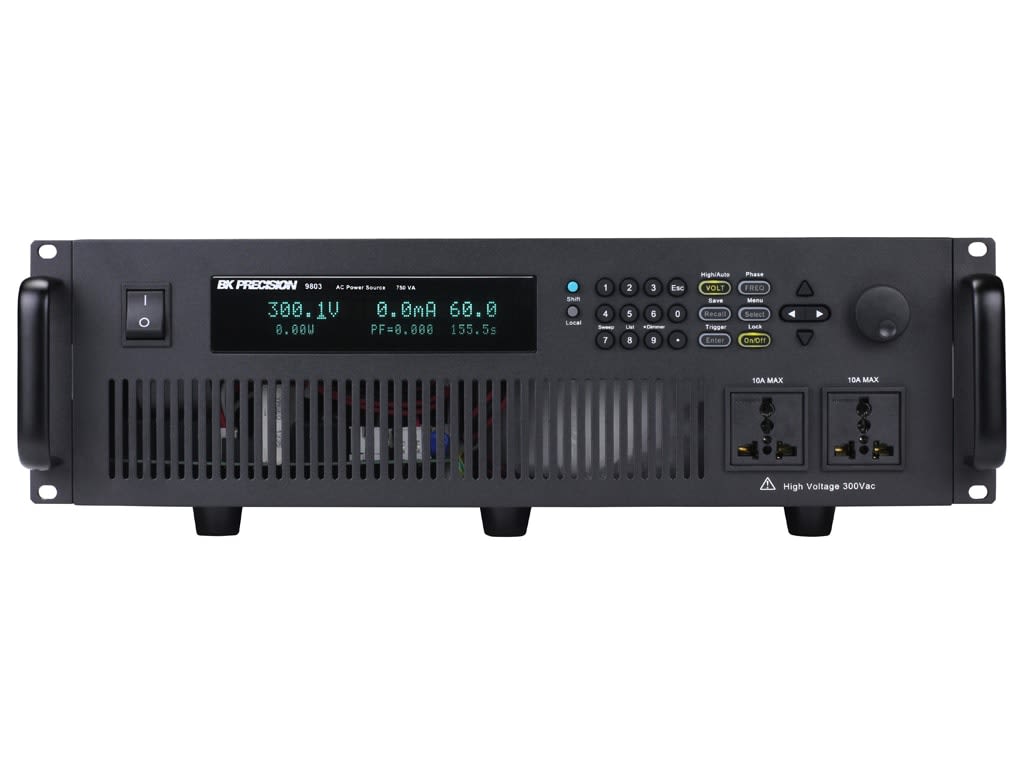

BK Precision 9803
- Max Voltage: 0 – 300 V
- Max Current: 0 – 6 A
- Max Power: 750 VA

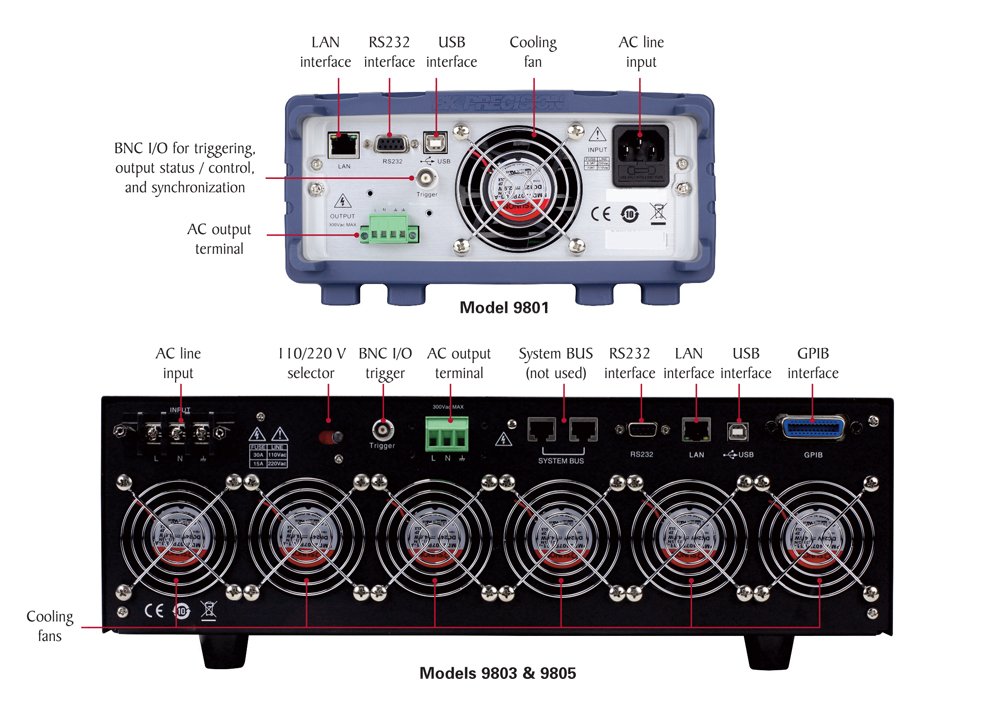

- Standard USB (USBTMC-compliant), RS232, LAN, and GPIB interfaces
- Downloadable LabVIEW driver and soft panel software for remote control

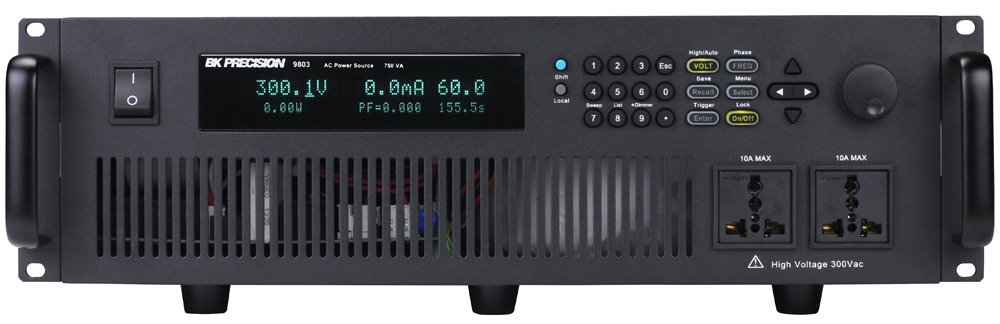

Programmable AC Power Source

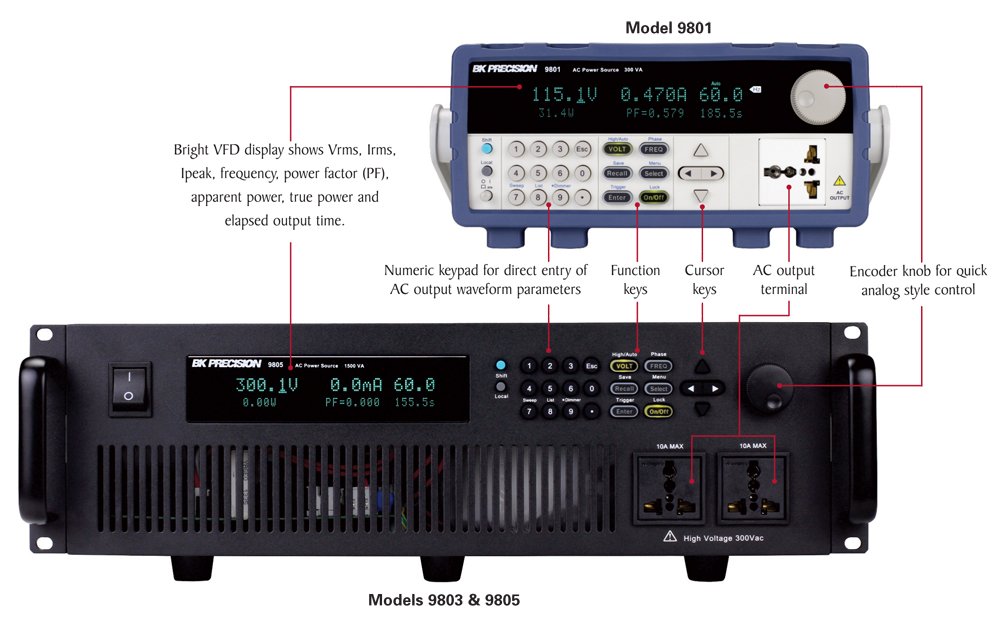

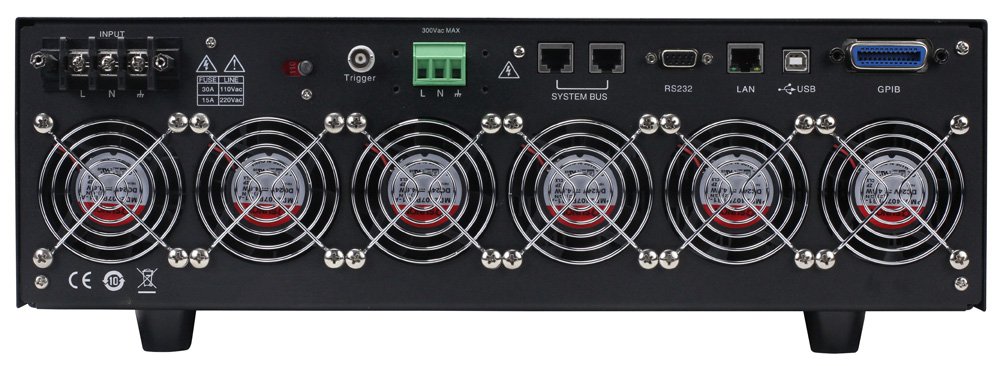

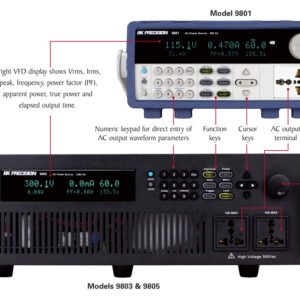

The BK Precision 9803 is both a programmable AC source and measurement tool. This fully programmable linear AC source delivers a maximum of 750 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angles from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak, frequency, power factor (PF), apparent power, true power, and elapsed output time.
The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.
Power Supplies/AC Power Supplies Template | |
|---|---|
| Output Capacity | 750 VA (750 Watts) |
| Meter Type | Digital |
| Variable Frequency | Yes |
| Programmable | Yes |
| Linear/Switching | Linear |
| Outputs | Single |
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 300 V |
| Current Output 1 | Variable |
| Max Current Output 1 | 24 A |
| Output Adaptor Plug | European, Multi, US |
| Max Display Resolution Current | 0.1 mA (0.0001 A) |
| Max Display Resolution Voltage | 0.1 V (100 mV) |
| Constant current/voltage | No |
| Remote Sensing | No |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | GPIB, LAN / Ethernet, Other, RS-232, USB |
| Product Weight | 88.2 LBS |
| Product Height | 5.2 IN |
| Product Length | 21.1 IN |
| Product Width | 17.3 IN |
| Shipping Weight | 100 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 8504.40.9580 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
| Shipping Height | 12.00 IN |
| UPC | 817050980103 |
| Shipping Length | 30.50 IN |
| Shipping Width | 24.75 IN |
