B&K Precision BA6011 – 300 V Battery Analyzer
38 people are viewing this product right now
$1,730.00
Shipping calculated at checkout.
Estimated delivery:5 days
300V Battery Analyzer
- Input Voltage Range: 30 V / 300 V
- Voltage Resolution: 1 mV
- 4.3 inch color LCD display
- Trace function for graphical display of voltage and resistance with on-screen cursor measurements
- 4-wire kelvin test leads with monitoring of Hi /Low / High and Low drive open faults
- Compare and sort using 9 bins with statistical evaluations
- Δ% mode for quickly determining the percent difference between batteries
- Pass/Fail indicator with audible tone
- Fast test speed up to 50 measurements per second to increase manufacturing throughput
- Trigger modes internal, manual, bus and external
- 100 internal and external storage locations for setup and screen save
- Handler interface for easy integration with a component handler or integration with PLC
- Standard RS232, USB (USBTMC and virtual COM) interfaces
Guarantee Safe and Secure Payment Checkout
Description

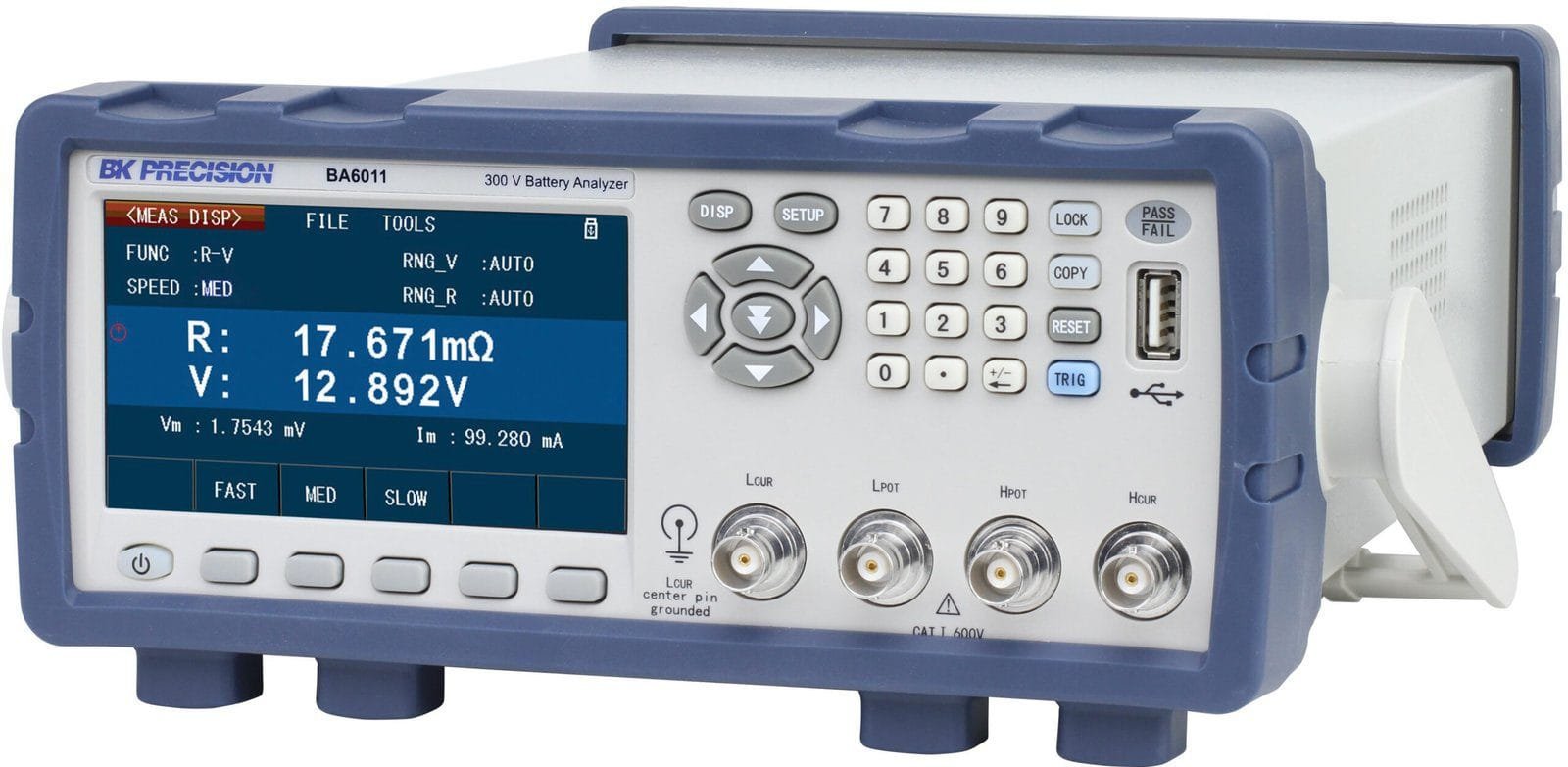

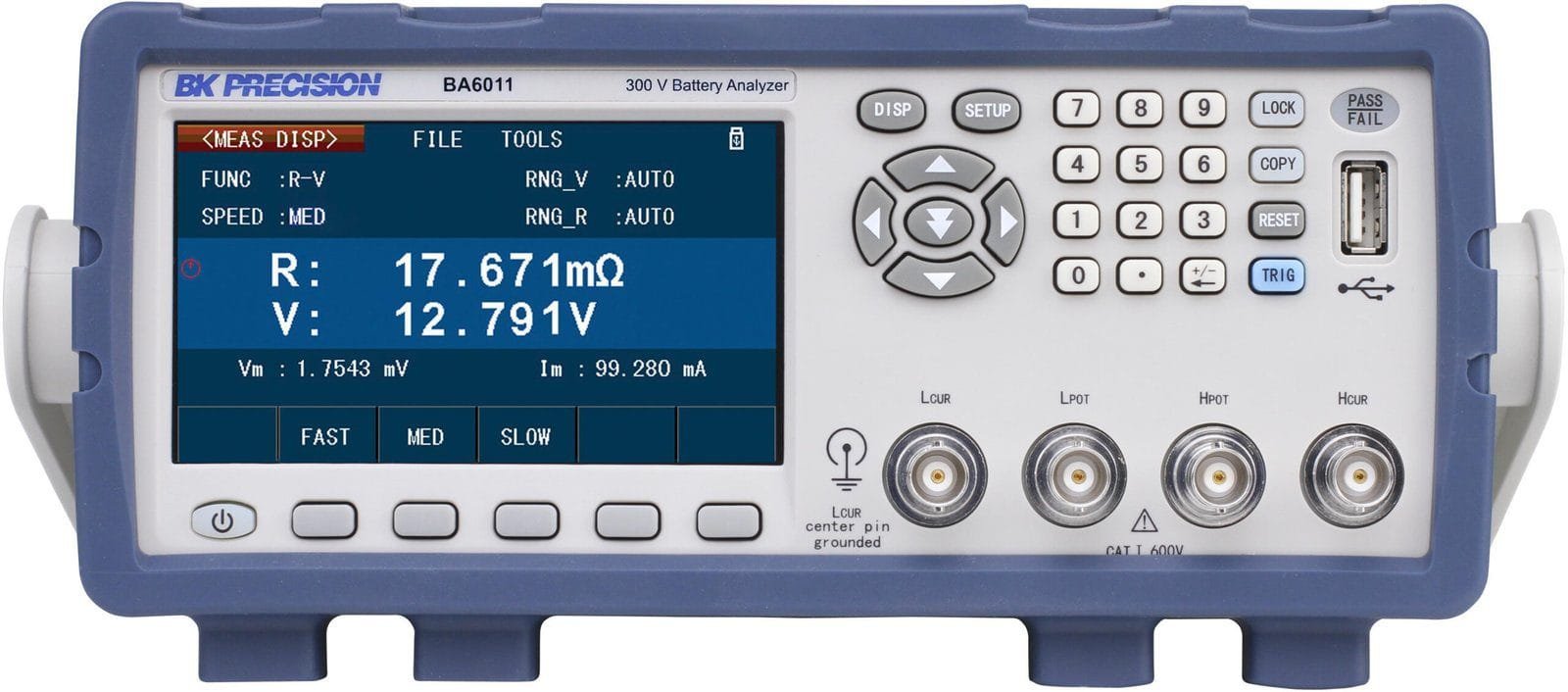

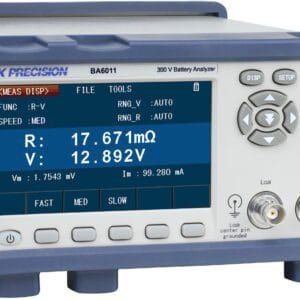

BK Precision BA6011 – 300 V Battery Analyzer
- Input Voltage Range: 30 V / 300 V
- Voltage Resolution: 1 mV
- 4.3 inch color LCD display
- Trace function for graphical display of voltage and resistance with on-screen cursor measurements
The BA6011 battery analyzer measures voltage and resistance of modern battery technologies with high accuracy, resolution, and speed. Additionally, this instrument provides auxiliary measurement parameters inductance, capacitance, dissipation factor, impedance, quality factor, reactance, and phase angle in degrees and radians.
The BA6011 is suitable for characterizing battery chemistries that are responsive to a 1 kHz AC stimulus signal including lead-acid, lithium and alkaline type batteries used in consumer products, electric vehicles, power backup, security, and fire alarm systems. The BA6011 supports voltage measurements of battery packs up to 300 V.
Wide Range of Measurement
Two user-selected measurements can be displayed simultaneously, along with stimulus signals Vm and Im. Unlike comparable battery testers that only support voltage and resistance measurements, users can also characterize additional parameters such as battery capacitance thus providing additional insight into a battery’s condition.
Battery Testing/Battery Capacity Tester Template | |
|---|---|
| Min Voltage | 30 V |
| Max Voltage | 300 V |
Product General Attributes | |
| Warranty | 3 YEARS |
| Product Weight | 7.9 LBS |
| Product Height | 4.1 IN |
| Product Length | 14.17 IN |
| Product Width | 9.25 IN |
| Shipping Weight | 11 LBS |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 11 lbs |
|---|---|
| Dimensions | 14.17 × 9.25 × 4.1 in |
