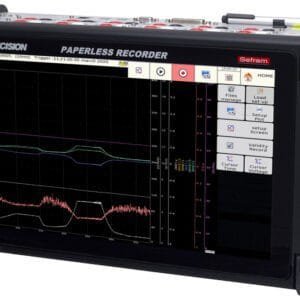

BK Precision DAS1700 – High Speed Data Acquisition System

• See below for information on how to order
• Measurement boards sold separately – required for operation
• 3 slots for any combination of measurement boards
• Up to six boards total with extension option (part # DAS917001000)
• Measurement boards available for voltage, current, temperature and strain

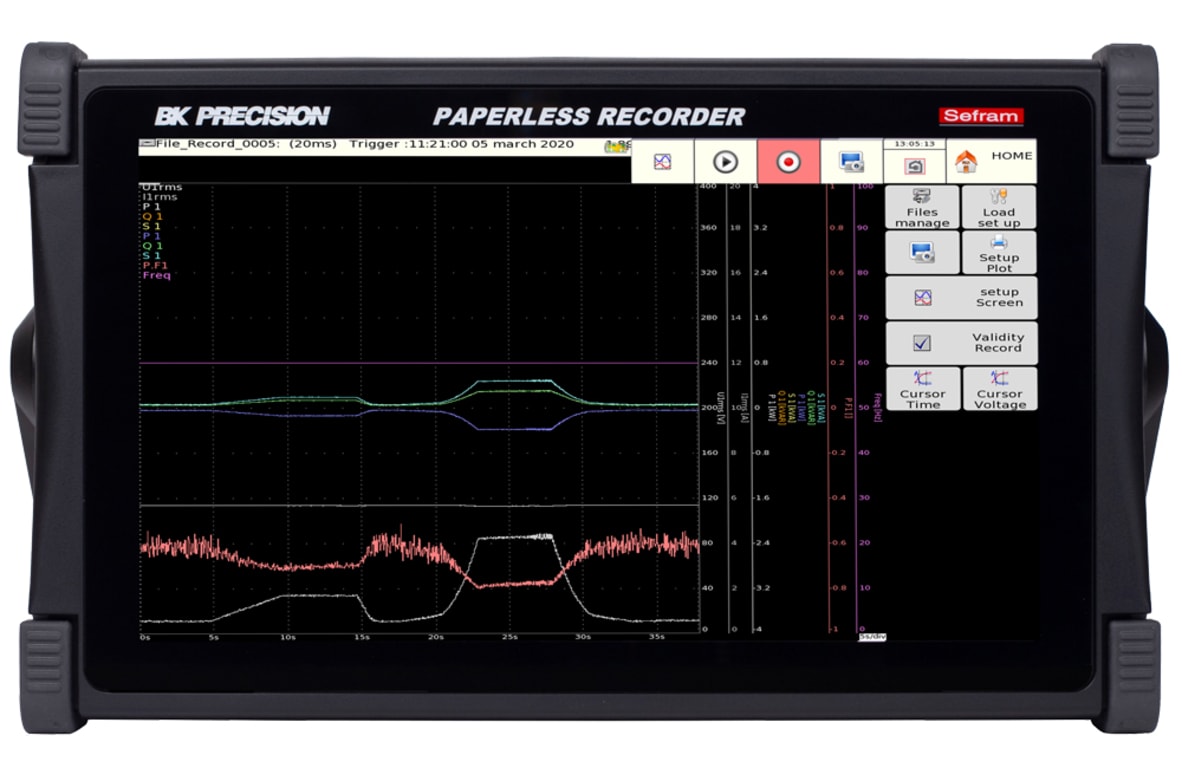

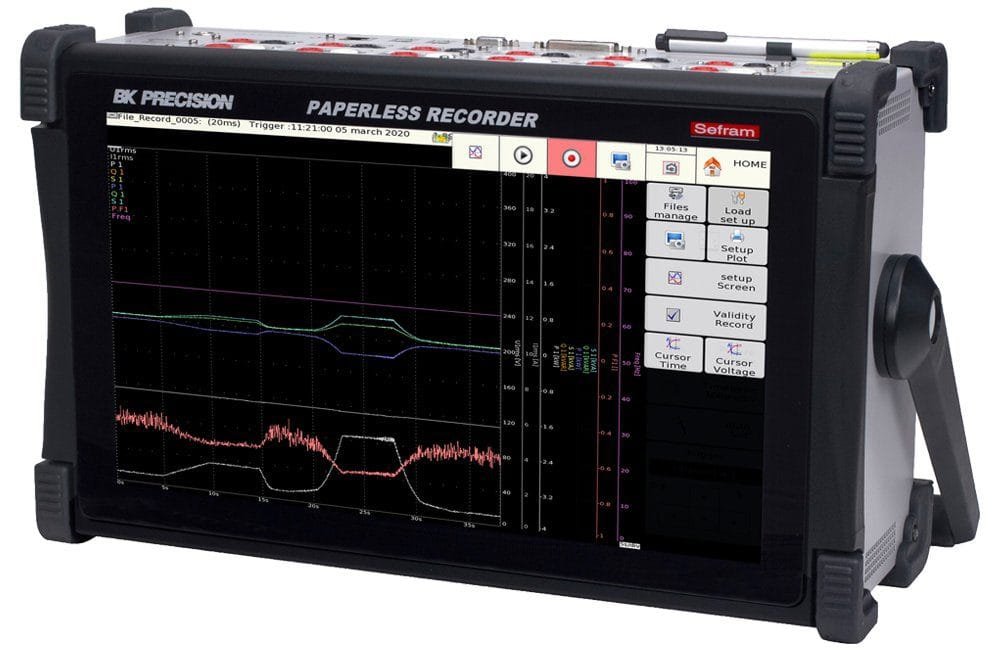

The DAS1700 combines fast-sampling rates, a large hard drive, and a 15.6” touch screen display. With 3 slots for measurement boards, the DAS1700 can be configured for your specific application. Choose any combination of 4 measurement boards for measuring voltage, current, temperature, and strain.

For capturing high speed or transient signals, the DAS1700 can simultaneously acquire and record 36 channels at 1 MSa/s, or 6 channels to the hard drive. It also comes with a 500 GB solid state hard drive for storing large amounts of data. The secondary file function allows you to record low and high-speed data in separate files to reduce file sizes.

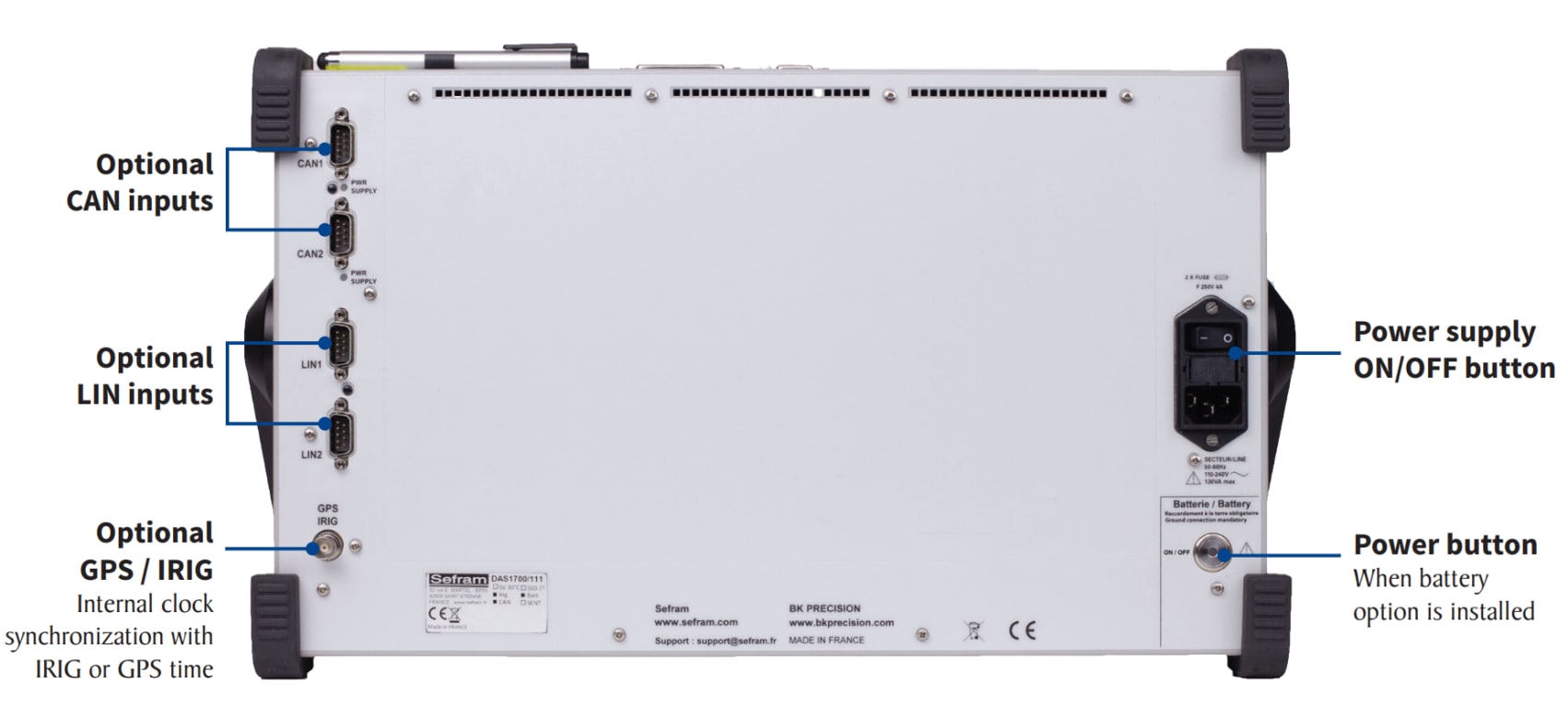

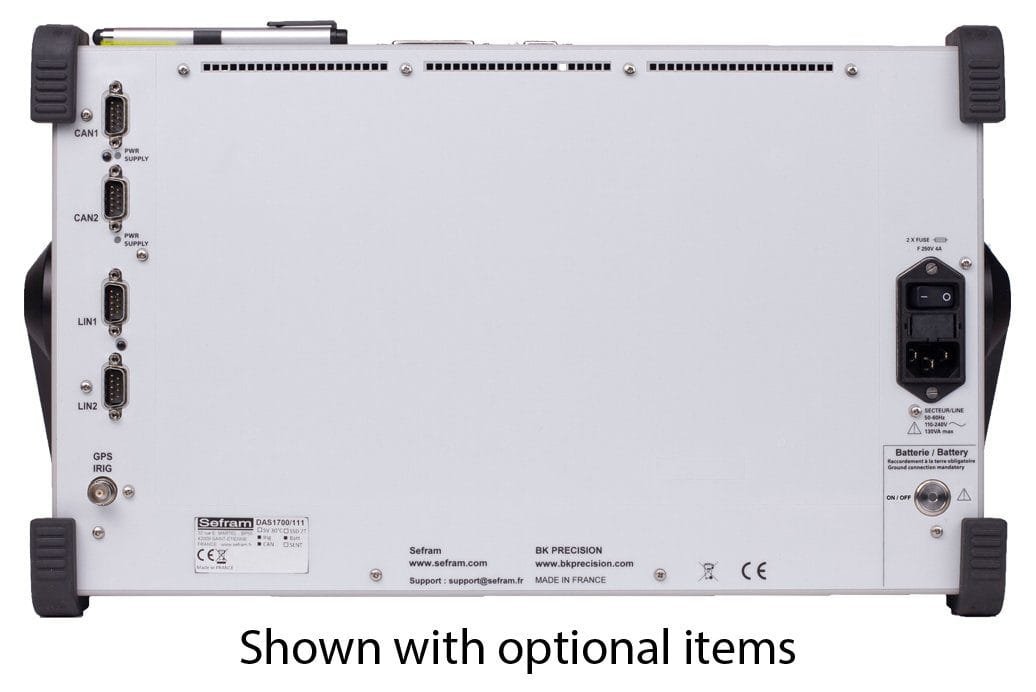

A variety of options are available to extend the functionality of the DAS1700 including battery operation, IRIG and GPS synchronization, CAN and LIN inputs, and an extension unit which provides 3 additional measurement board slots.

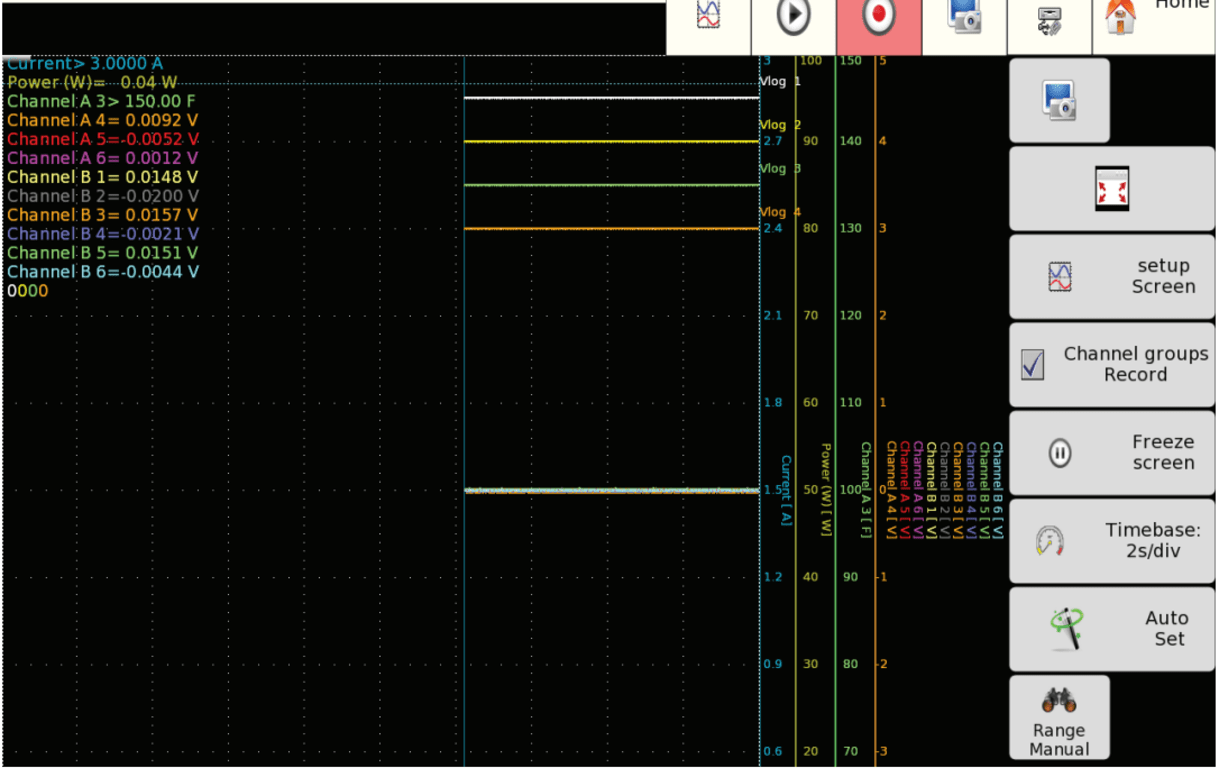

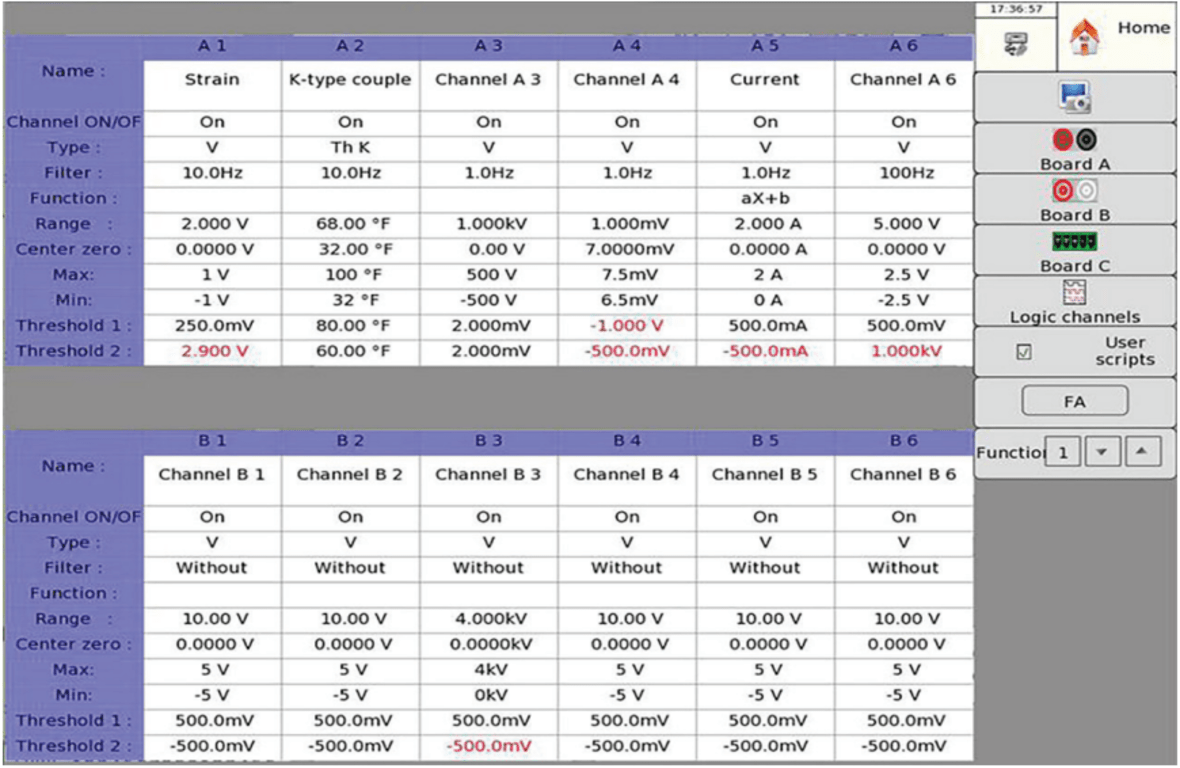

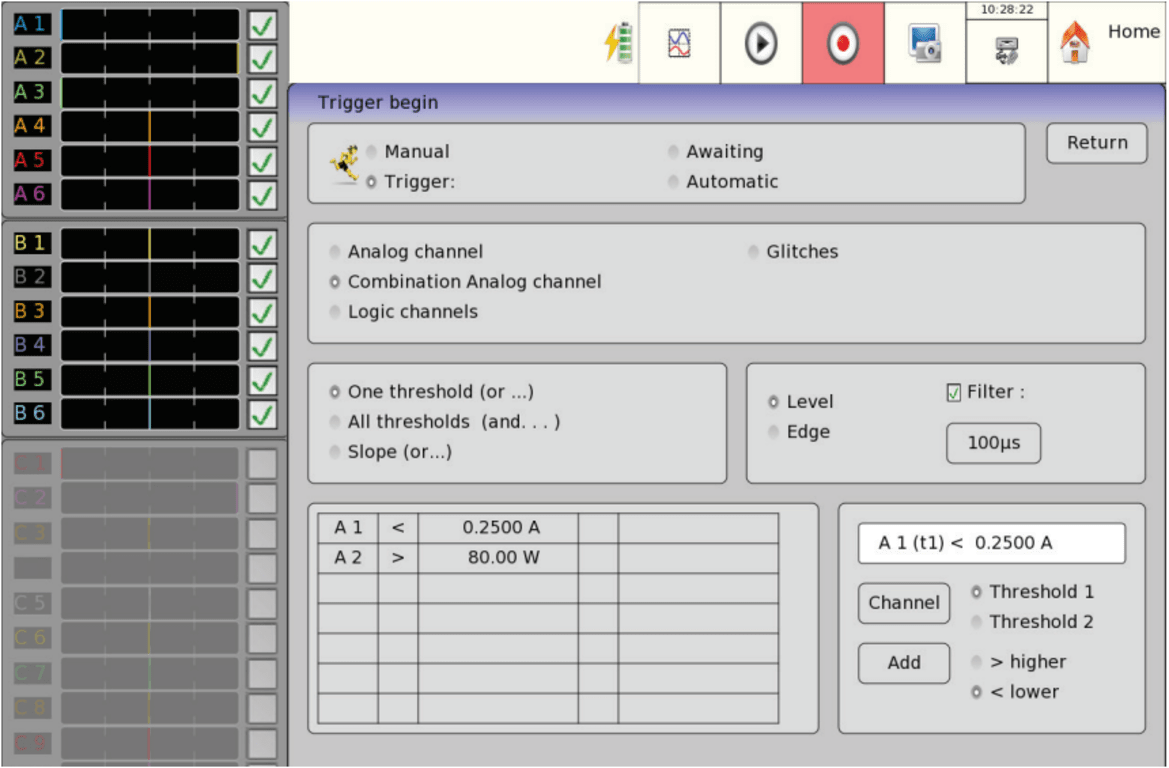

The intuitive user interface makes setup easy, and measurement results can be viewed graphically and numerically. Built-in analysis tools include a mathematical function editor and dedicated power analysis mode for analyzing single and 3-phase electrical networks.

Connect to the DAS1700 remotely via the built-in LAN interface or optional USB WiFi. Software utilities are provided for remote control, file transfer, and viewing live data on a PC.

The DAS1700 and 8460 are similar instruments, but not the same. While they do use the same measurement boards, there are differences in available options, as well as standard features.

The chart below highlights main differences in each.

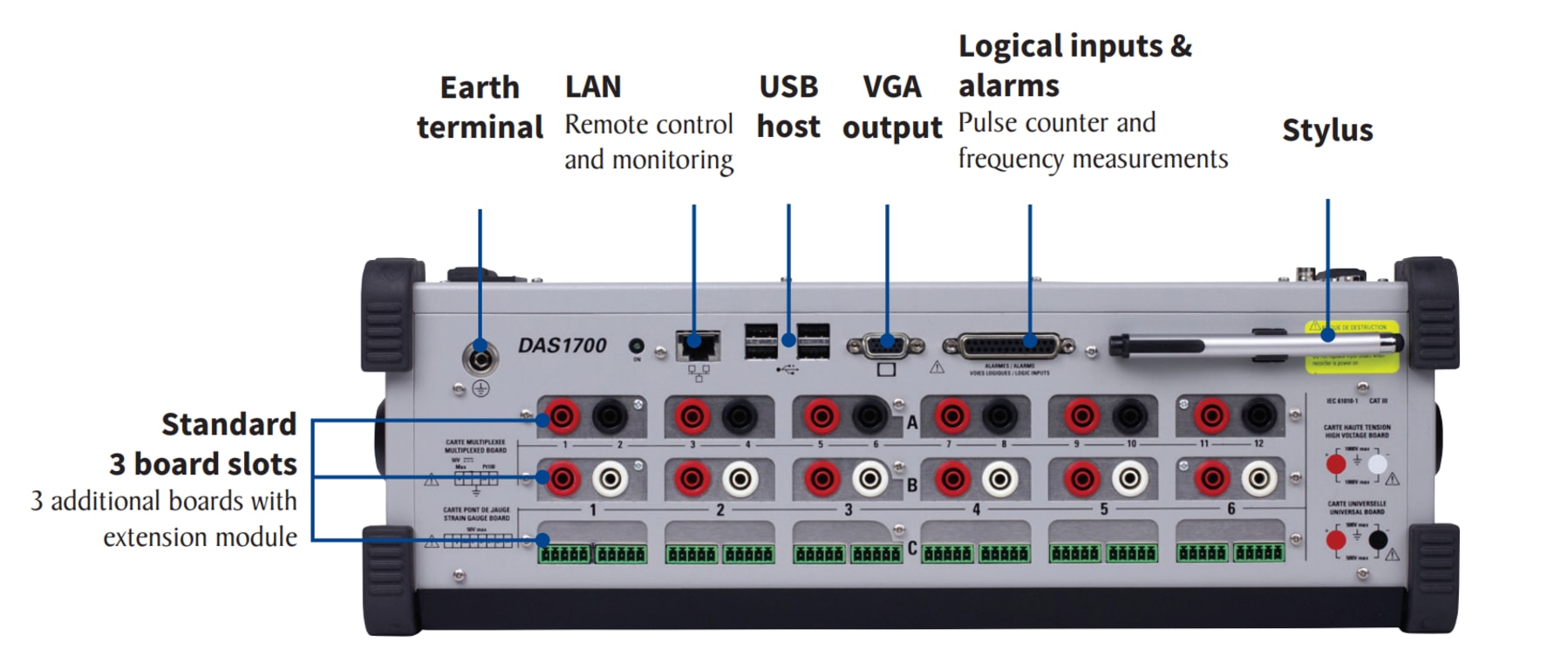

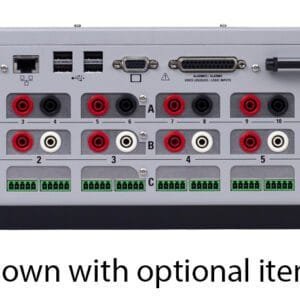

The DAS1700 can hold any combination of up to 3 measurement boards. With the extension option (part# DAS917001000), the instrument can hold up to 6. Please note, boards are sold separately.

• DAS916006000 – High Voltage Board
• DAS984401000 – Universal Input Board
• DAS984402000 – Multiplexed Board
• DAS984402500 – Strain Gauge Board

There are several factory installed options for the DAS1700. Notes 1 and 2 correspond to the following:

• Note 1 – Not compatible with the extension option
• Note 2 – The GPS and IRIG options cannot be installed at the same time

A variety of accessories are available for use with DAS1700. These include Wi-Fi dongles, rack mounts, shunts and more.

Please see the document linked here for more information with part numbers and descriptions.

Accessories can also be found in the accessories section of this page.
