Burndy PATRIOTKIT1 – PAT750 and PATCUT1500 Combo Kit

• Combo Kit – PAT750 C-Head Crimper, PATCUT1500, (2)3.0Ah Li-ion, Charger, Heavy Duty Case
• PAT750 – 12T crimper, 1.65in Jaw opening; 355° Head rotation; uses U-Dies for CU, AL, ACSR (not included)
• PATCUT1500 – CU/AL cutter to 1500 kcmil, non-skid bumper for stabilizing, large new blades, stainless steel tooth guards
• Heavy-duty hard case with cushion foam and secure latches

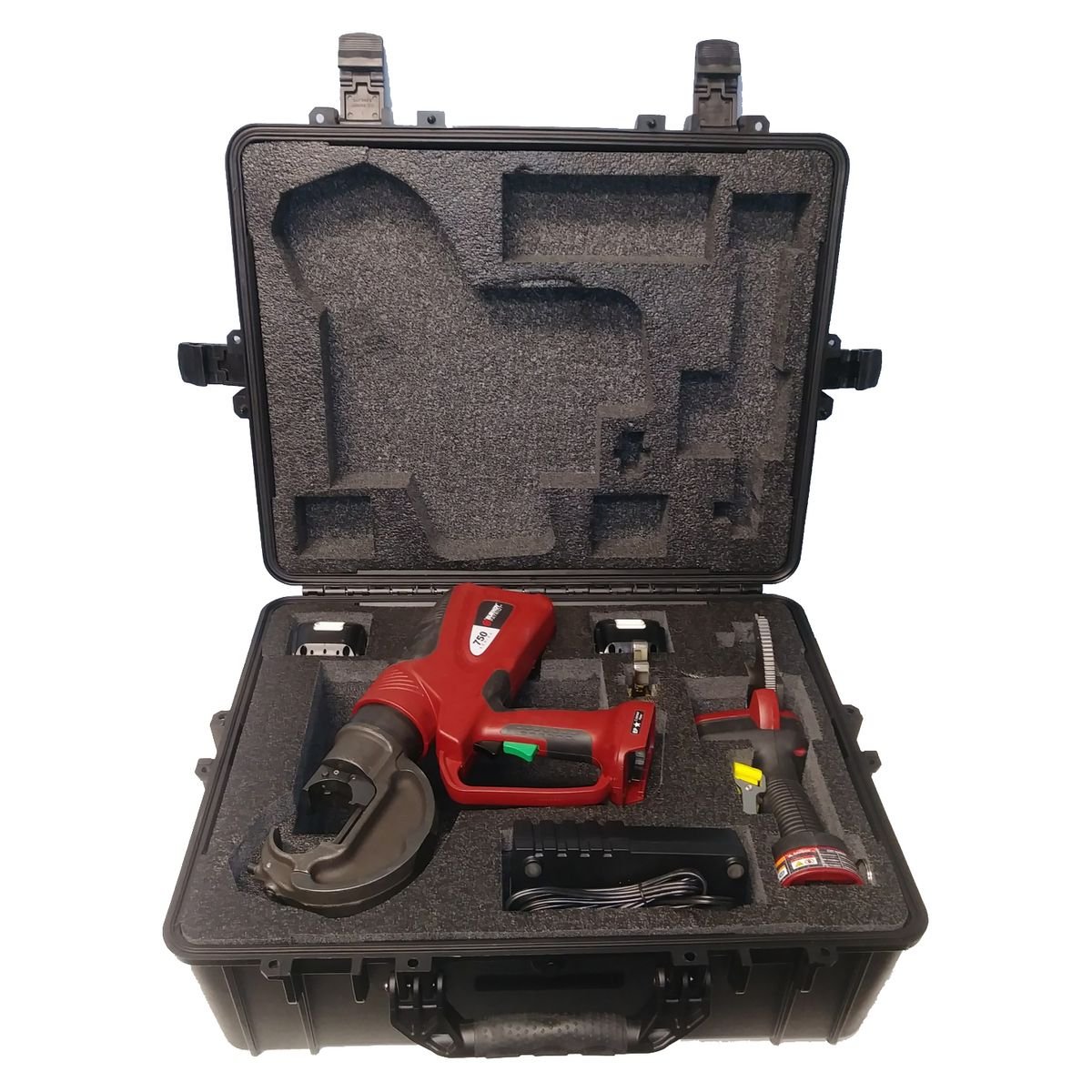

The Burndy Patriot KIT1 contains the PAT750 12T C-Head Crimper, PATCUT1500 CU/AL Ratchet Cutter, (2) 3.0Ah Li-ion, Charger, (2) Lanyards, and a heavy-duty hard case.

PAT750 12T C-Head Crimper

• 12-ton output force, one-handed advance/retract/hold, uses U-Dies for CU, AL, ACSR
• Patented T-Track alignment guide for HYGROUND, other asymmetrical connectors
• State of the art crimping head design, 355° head rotation
• Ergonomically balanced tool design

PATCUT1500 CU/AL Ratchet Cutter

• CU/AL cutter to 1500 kcmil, variable speed trigger
• Large new cutting blade design, stainless steel tooth guards for precision cuts
• Forward/reverse switch features a locking position
• Large, strategically placed, non-skid bumper

Both tools accept 18V Makita Lithium-Ion batteries, BL Series of size 2.0Ahr and greater if the plastic battery clip in the tool has a “star” molded into it. The “star” identifies acceptance of the BL series batteries.

Please see brochures in the documents section for tool specifications.
