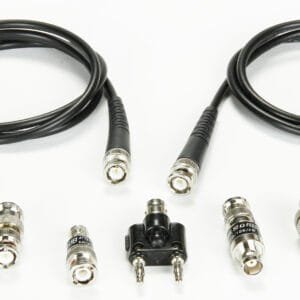

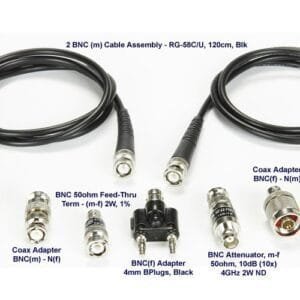

Cal Test CT4040 Spectrum Analyzer Accessory Kit

• Materials:
  • Body: Brass, Nickel Plated
  • Contact: Brass and BeCu, Gold Plated

Cal Test CT2762
General Purpose BNC Female to N Type Male, 50 Ω between-series Coaxial adapter.

• Materials:
  • Body: Brass, Nickel Plated
  • Contact: Brass , Gold Plated

Cal Test CT2763
General Purpose BNC Male to N Type Female between-series coax adapter. Turn your instrument’s BNC female output into an N Type female connector.

Cal Test CT2939
BNC male to 4mm banana plugs. Adapts a BNC female for connection by spade lugs, banana plugs and bare wire leads. Use on the front of your oscilloscope – a very versatile adapter.

• Materials:
  • Body: Polyamide (Nylon)
  • Contact: Brass, Nickel Plt.
• Banana Contact: BeCu, Nickel Plt.

Cal Test CT2942-120
High Quality BNC male to male cable assembly. Molded bend relief boot. Mil rated RG58C/U, 50 ohm impedance cable.

• Materials:
  • Body: Brass or Zinc, Nickel Plt.
  • Contact: Brass, Gold Plt.; Boot: PVC, Black

Cal Test CT2944
BNC male to female 50 Ω  Feed-through terminator. Matches higher impedance devices to 50 Ω input impedance test equipment with a frequency of DC to 1 GHz

• Materials:
  • Contact: Gold Plated Center Contacts

Cal Test CT3334-50
General Purpose coaxial terminator matches 50ohm input impedance of test instrument. The CT3334-50 is RoHS compliant with a temperature range of 0° to +125°C.

Cal Test CT3369A-10
Instrument grade BNC male to female 10 dB 50 Ω fixed coaxial attenuators. Useful in a wide variety of applications, including impedance matching and level control.

• Excellent VSWR
• 2W Power level
• Usable to 4Ghz
• Materials
  • Body: Brass, Nickel Plated
  • Contacts: BeCu, Gold Plated
