Description

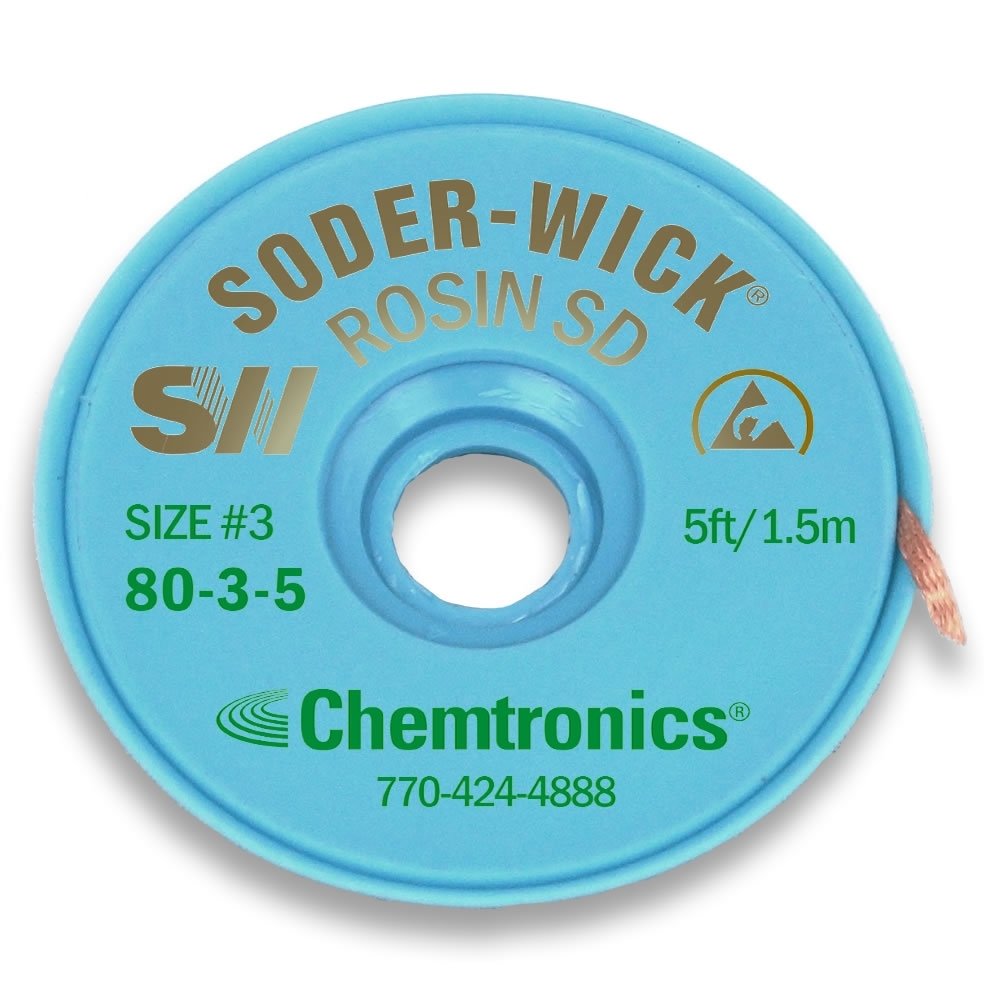

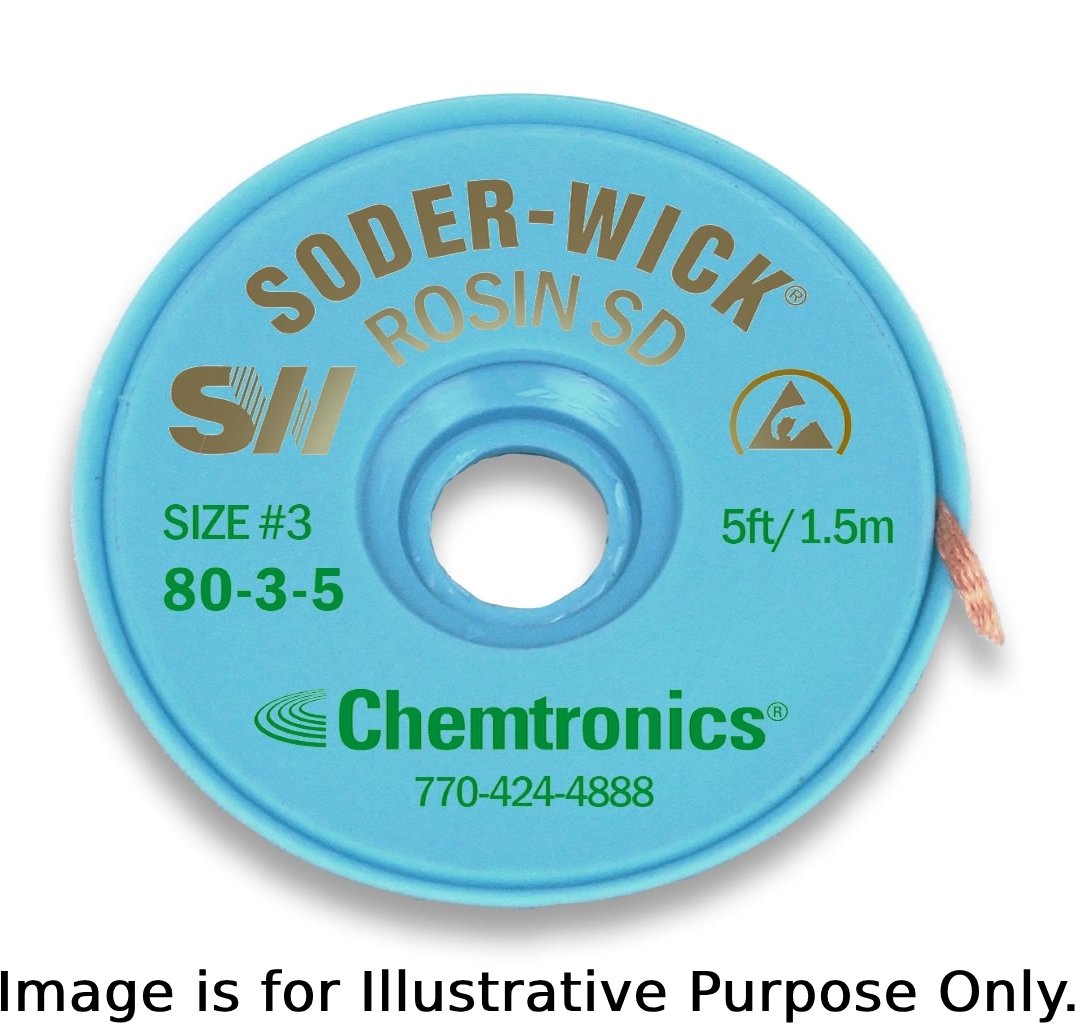

Chemtronics 80-3-10
- Wick Size: 0.08″ / 2.0mm – best for medium pads
- Length: 10′ / 3.0m L, ESD-safe bobbin
- Unit Per Case: 25 bobbins
- Color: Green
- Weight: 1lb
Soder-Wick Rosin Flux Desoldering Wick, 0.08″/2.0mm, 10’/3.0m L, ESD-safe bobbin, 1lb
Soder-Wick offers the state of the art in desoldering technology. Soder-Wick is designed for today’s heat sensitive electronic components using lighter mass, pure copper braid construction that allows for better thermal conductivity, even at low temperatures. Soder-Wick responds faster than conventional desoldering braids thereby minimizing overheating and preventing PCB damage. Soder-Wick Rosin has the fastest desoldering action in the industry. Flux residues must be cleaned after the rework process.
Typical Applications
Soder-Wick desoldering braid safely removes solder from:
- Thru-hole Components
- SMT Pads and BGA Pads
- Micro Circuits
- Terminals
- Lugs and Posts
- Identification Script
Static Dissipative Packaging
Soder-Wick is packaged on Static Dissipative bobbins in 5 and 10-foot lengths to minimize the risk of damage associated with static electricity. The static dissipative bobbins qualify as electrostatic discharge protective per MIL-STD-1686C and MIL-HDBK-263B, and meet the static delay rate provision of MIL-B-81705C
