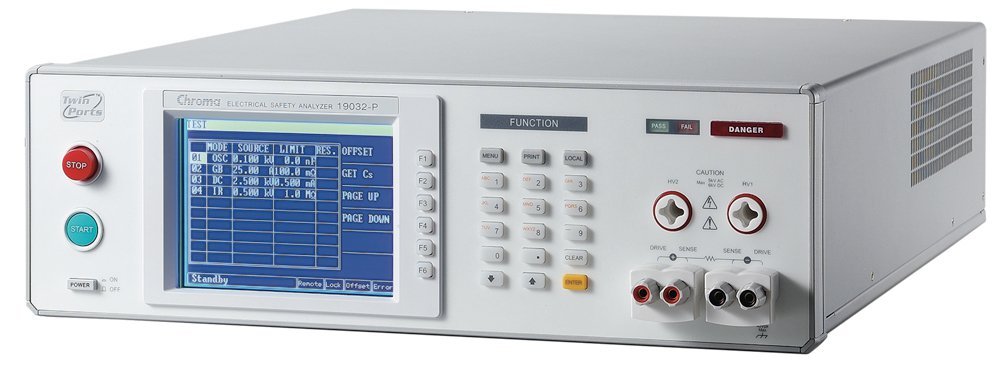

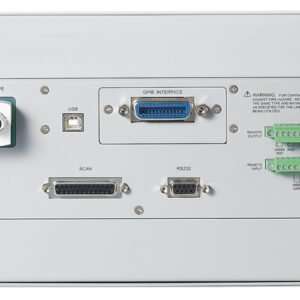

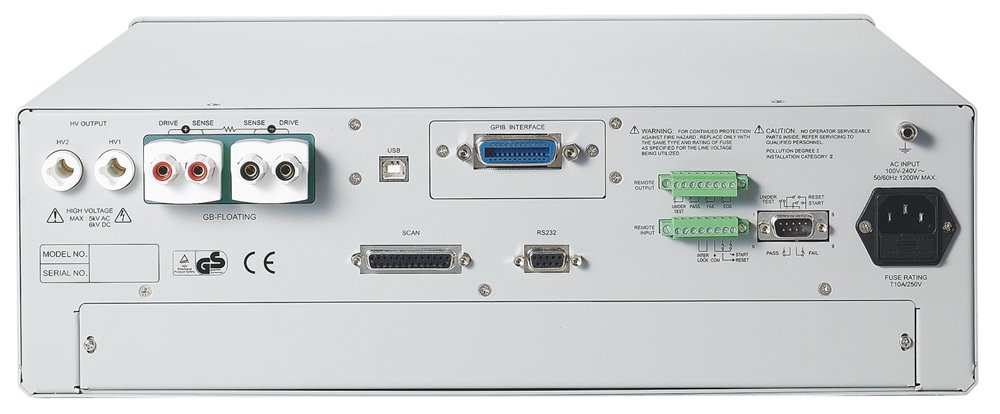

Chroma 19032 – Electrical Safety Analyzer

• Function test up to 20
• AC/DC/IR/GB/LC/Dynamic Function – six instruments in one
• OSC open/short check
• Programmable voltage output and limit value
• Human protection circuit
• Multi-scan device support dynamic leakage current test

Electrical safety testing is a major item in electrical product quality testing. All electrical products like adapters, SMPS, charges, house appliances, information technology products, and video products are required to undergo electrical safety testing.

The 19032 series combines Hipot, Insulation Resistance (IR), Ground Bond (GB), Leakage Current (LC)/AC LC/DC LC and Dynamic Function Tests. Space savings can be up to 50% of production line space, through not purchasing multiple safety test instruments. The 19032 is able to increase the efficiency of electrical safety testing during manufacturing and reduce associated labor costs.

Open/Short Check (OSC)

Patent No. 254135

All manufacturers have to solve the problems of error connections and unconnected test cables with their production line testers. Chroma’s 19032 is equipped with an open/short check function (OSC) for product testing. This eliminates the potential for false failures.

Flashover Detection

The Guardian 19032 has the same Flashover Detection as many other Chroma safety test instruments. Flashover is electricity transient or non-sequential discharge on the inner surface of the insulation component which cause the DUTs original insulation to lose effectiveness, create a carbonized electrically conductive path to be generated, and damage the product. Flashover can’t be detected by leakage current, test voltage or shift rate of leakage current is required. Thus, Flashover Detection is one of inevitable inspection item in HV test.

Twinport™ Function

USA Patent No. IS6504381

The key factor affecting the efficiency of manufacturing is the efficiency for electrical safety test. The Twinport function reduces the safety test time and can eliminate potential bottlenecks in the production line.

Product Applications

The 19032 can be used in a variety of scenarios, which include quality assurance sample inspection testing, manufacturing testing, and development validation. Some example products are:

• Power cords
• House appliances
• Information technology products
• Medical equipment
• Lab/testing equipment
• EMI FILTERS

EN50191 Floating Output Function

The leakage current of any ground terminal should be lower than 3.5mA when operating Floating output function. This allows the operator near the ground terminal to avoid an electrical hazard.

Safety Test of Information Technology Product (IEC 60950)

Information technology is a big part of our daily life. Desktops, notebooks, LCD monitors, UPS, printers, and projectors are products that we use in our everyday lives. To ensure proper safety, all products should have electrical safety tests performed. The 19032 offers all safety test functions and Normal/Reverse as well as Single Fault switch function (LC Test) to increase manufacturing efficiency.

The output floating of Telecommunication Network in IEC 60950 to perform dynamic leakage current test is required. The equivalent stray capacitance will also be generated on an isolation transformer, even if it is a floating circuit. The stray capacitance results in leakage current and electric shock to the users. The 19032, along with the 6000-05/07/08 leakage current scanner, have P1/P2 measurement functions which are able to measure dynamic leakage current on output terminals. It is the best solution for testing information technology products.

Main Test Item

• Open Short Check
• Ground Bond
• AC/DC Hipot Test
• Earth Leakage Current Test
• Output Leakage Current Test

Power Supplies, Adapter & Charger Safety Testing

Power supplies in electronic products, including SMPS, adapters, and chargers, need to tested for electrical safety. According to various power design methods and test conditions, the 19032 offers programmable edit and solution, allowing the operator to complete all test at one time.

A number of power product designs must have the insulation capability of the input terminal (Primary) to output terminal (Secondary) that is sufficient to protect against damage inside the component. Thus, the output terminal or Floating needs to be Hipot tested. The 19032 provides an isolation test point with high voltage which allow you not to change the fixture or cable manually, and perform the P-S Hipot test directly after the P-G Hipot test.

Safety Test of Video Product (IEC 60065)

Video products include DVD recorders, LCD’s, TV’s, audio amplifiers, stereos and etc. These products have mass power output with separate safety standards. The main circuit design of mass power is a signal output terminal, not to mention an increase in temperature and heat dissipation of electronic component. Open voltage of some video products are over 35Vac peak or 60Vdc peak; this allows for U1 dynamic leakage current test as required. A U1 measurement circuit is added to the 19032 and P1/P2 measurement point is provided to comply with the requirement of safety standard test.

Main Test Item

• Open Short Check
• Ground Bond
• AC/DC Hipot Test
• Earth Leakage Current Test
• Output LC Test

Safety Test of Home Appliance (IEC 60335)

Household appliances consist of ovens, refrigerators, televisions, juicers and coffee machines that may come in contact with a person. To ensure the safety of users, all products should preform electrical safety test. Except for the basic hipot test, dynamic leakage current has various test regulations by different ground modes and operation methods. The regulations are as listed in the table below.

Main Test Item

• Open Short Check
• Ground Bond
• AC/DC Hipot Test
• Earth Leakage Current Test

Safety Testing of Medical Equipment (IEC 60601)

Safety Analyzer Medical Equipment Test19032 + 6000-07 is a solution for electrical safety and function test of medical equipment. The safety standard of medical equipment is very strict. Since the medical equipment comes in contact with the patient and hospital personnel, the instrument preforms various electrical safety test. The leakage current test has become one of the most important test in preforming electrical safety test.

The safety standard of medical equipment has various types of leakage current test. Also, normal/reverse/single fault normal/single fault reverse four powers and earth switch, make the safety test difficult and complex. The basic measuring circuit for the enclosure leakage current is as in the figure. It shows here measurement Type BF and CF is a special requirement for medical equipment. DC leakage current should be isolated separately and limited within 50uA limited, which is mentioned in the medical safety standard. This function has already been added to the 6000-08 LC scanner. The Chroma 19032 + 6000-07/08 offer programmable editing and software support. This allows you to test medical products without missing a procedure, as it saves the test data directly, providing the best test solution.

Main Test Item

• Open Short Check
• Ground Bond
• AC/DC Hipot Test
• Earth Leakage Current Test
• Enclosure LC
• Patient LC
• Patient Auxiliary LC

Electric Vehicle Safety Test

The Automotive industry has switched focus from internal combustion engine power to electric power. Because the voltage of electric vehicles will be a maximum of up to 600V when in operation, it can be a safety issue. To avoid electrical injury, the Chroma 19032 is the best solution for electrical safety tests of wires and connectors for electrical vehicles, adapters, batteries and the charging system.

Main Test Item

Withstand voltage test: Various insulation terminals, primary and uncharged metal, withstand voltage between primary and secondary.

Leakage current: All metallic parts can be touched on the system required to test earth leakage current during dynamic operation.

Ground test: Ground protection connection should use 25A/60Hz current to test resistance; it cannot be higher than 100mΩ

Measurement Technology

Open/Short Check (OSC) (Patent 254135)

OSC function is used to check the connection is open (bad contact) or short (DUT short) during the test procedure. When open occurred during test procedure, no good product will be judged as good product. When short occurred during test procedure, screening earlier to reduce the damage on equipment for saving test cost.

Generally speaking, the DUT has capacitive load (Cx) from tens to thousands pF under normal status. To form a micro capacitance on open circuit interface once connection is interrupted (as Cc in figure 2). Generally speaking, the capacitance is lower than 10pF thus total capacitance is far lower than the status of normal product. The capacitance is far higher than normal status when DUT short or close to short. Therefore, users judge the short problem by using high/low limit value of capacitance change.
