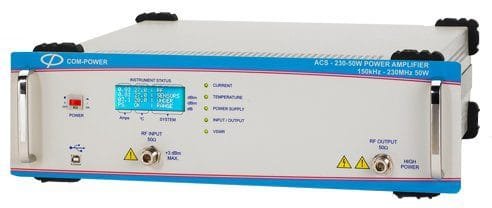

Com-Power ACS-230-50W – 150 kHz to 230 MHz, 50W Power Amplifier

• Suitable for IEC-61000-4-6 testing
• Automatic Safety Shutoff
• Three year warranty

The ACS-230-50W is part of Com-Power’s series of broadband RF amplifiers; diverse in application, yet specifically geared for use in EMC immunity testing applications.

The ACS-230-50W model was engineered to provide high gain, with excellent efficiency and reliability, at an unbeatable price. It has 47 dB gain, 50 Watt nominal power output., The ACS-230-50W amplifier complies with all required technical specifications for IEC 61000-4-6 compliance testing, yet its low cost makes it affordable even as part of a pre-compliance testing solution.

These amplifiers are individually tested to make sure that they meet the technical requirements given in IEC 61000-4-6 before shipment. The amplifiers can be also supplied with a matched CDN and test accessories for a complete solution. Optional software to automate the conducted immunity testing is also available. All Com-Power products come with a 3 year warranty.

Application

The required test levels per IEC 61000-4-6 (given in the table below) that can be achieved using the ASC series power when properly configured with a compliant coupling decoupling network from Com-Power or another manufacturer. Please refer to IEC 61000-4-6 for information on test setup, procedures and test accessories needed.
