Com-Power AL-RE101 – Loop Antenna 30 Hz- 100 Hz for RE-101
27 people are viewing this product right now
$1,380.50
Shipping calculated at checkout.
Estimated delivery:5 days
Passive Loop Antenna, 30 Hz- 100 Hz for RE-101
- Receiving Loop Antenna Designed Specifically for MIL-STD-461, RE101 Testing
- Frequency Range: 30 Hz to 100 kHz
- Antenna Base Plate Ensures Required 7 cm Separation Between Antenna and EUT
- Individual Calibration per SAE ARP958 Included
- Three-year Standard Warranty
Guarantee Safe and Secure Payment Checkout
Description
Com-Power AL-RE101
- Receiving Loop Antenna Designed Specifically for MIL-STD-461, RE101 Testing
- Frequency Range: 10 Hz to 1 MHz
- Antenna Base Plate Ensures Required 7 cm Separation Between Antenna and EUT
- Individual Calibration per SAE ARP958
- Three-year Standard Warranty
Loop Antenna 30 Hz- 100 Hz for RE-101

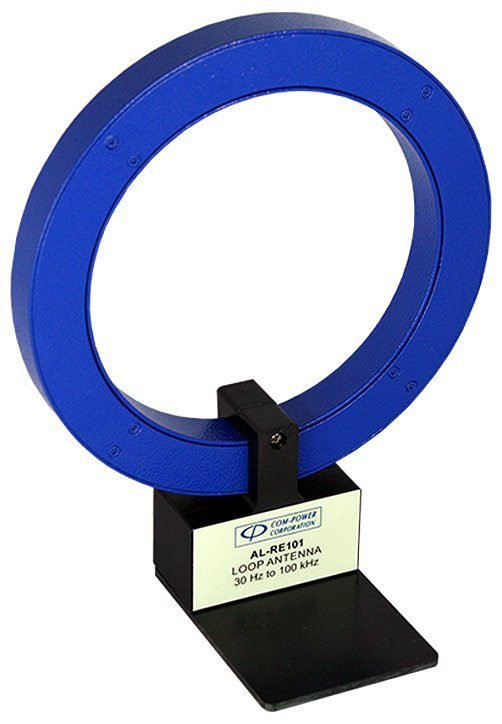

The AL-RE101 is a receiving loop antenna used for Mil-Std 461, RE101 testing to measure the magnetic field intensity generated by the Equipment Under Test (EUT).
Its construction consists of a 13.3 cm diameter, 36-turn, electrostatically shielded coil of 7-strand, 41 gauge Litz wire. The base of the antenna is constructed from durable nylon, which is mounted over a plexi-glass plate. For convenience, the plate protrudes outward from the front of the antenna to provide the required 7 cm spacing between the center of the loop and the EUT, as shown in the diagram to the left. The antenna output port is fitted with a high quality, female BNC connector for connection to the measuring instrument. The electrostatic shield of the antenna is powder coated for additional durability.
Accessories/Antennas Template | |
|---|---|
| Maximum Frequency Range | 1 MHz |
Product General Attributes | |
| Warranty | 3 YEARS |
| Product Weight | 0.84 LBS |
| Product Height | 7.00 IN |
| Product Length | 4.00 IN |
| Product Width | 9.00 IN |
| Shipping Weight | 2.00 LBS |
| HTS/Schedule B Number | 9031.80.8085 |
| ECCN Number | EAR99 |
| Country of Origin | India |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 2 lbs |
|---|---|
| Dimensions | 4 × 9 × 7 in |
