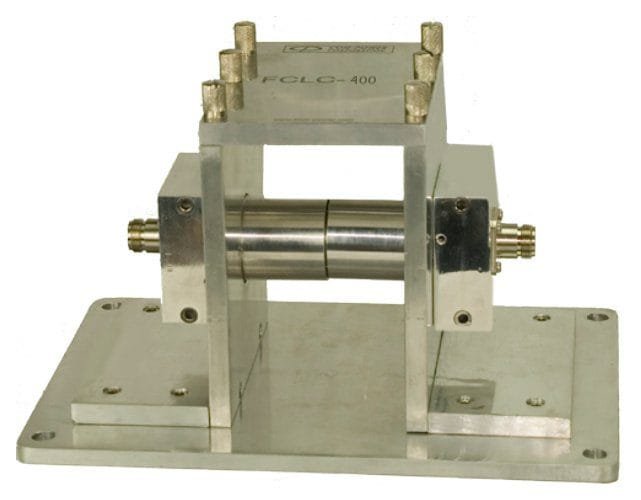

Com-Power FCLC-400 – Current Clamp Calibration Fixture for CLCI-400

• Current Clamp Calibration Fixture
• For CLCI-400
• Maintains 50 ohm Nominal Impedance Transmission Line with Probe Installed

• Coupling Loss/Transfer Impedance Calibration

• Test Level Calibration of Bulk Current Injection Probes

Current probes are calibrated through the use of a calibration fixture with a coaxial-type arrangement. The fixture allows the probe to be clamped around the center conductor, while the outer conductor encapsulates the probe on four sides, so that the transmission line characteristics are not compromised.
