Comet H4531R – Rack Mount Thermometer w/Ethernet Interface and Relays

• Dew point and computed quantities
• Relay outputs
• Binary inputs
• Dual-line LCD
• Ethernet interface

Programmable monitoring systems for 19″ rack mounting with Ethernet connection a re-designed to measure temperature, relative humidity, and barometric pressure of air in a non-aggressive environment, to alarm indication and to control of external devices. Three galvanic no isolated binary inputs are intended for detection of binary signals.

Two output relays functions can be set from regulator keyboard or from the computer. Each relay can be assigned to one of measured, detected, or computed value (dewpoint temperature, absolute humidity, specific humidity mixing ratio, and specific enthalpy). Setting of delay, hysteresis, audible alarm are enabled for each relay. It is possible to control output relay status via Ethernet too. The instrument may send a warning message if the measured value goes out of adjusted limits. Devices are equipped with a four-button keyboard and LCD display.

Applications

• Server Rooms Monitoring
• Building HVAC Management
• Warehouses
• Museums, archives, galleries
• Factories and Manufacturing
• Air-Conditioned Room

Software

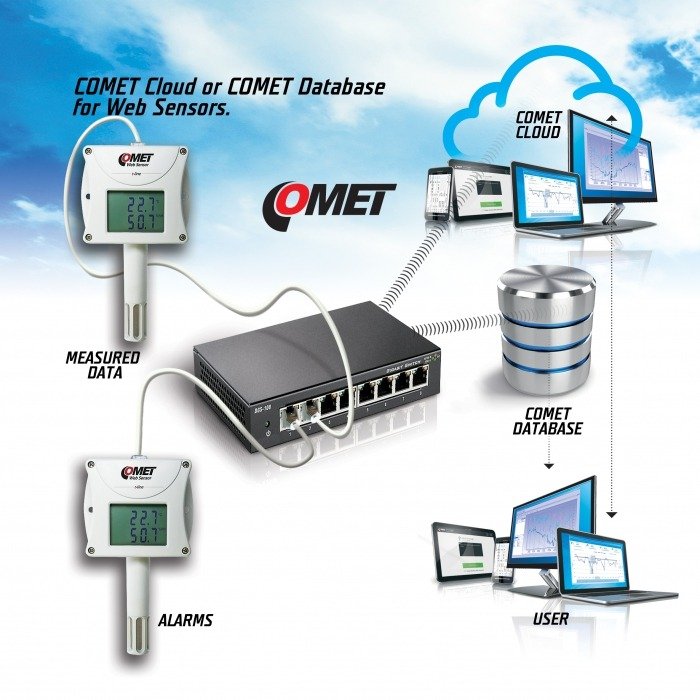

• Comet Database
• Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Sensors.
• T-Sensor Software
• Free configuration utility for COMET sensor.
• SensorReader software
• Basic data acquisition utility for COMET Sensors. Software is free for download.
