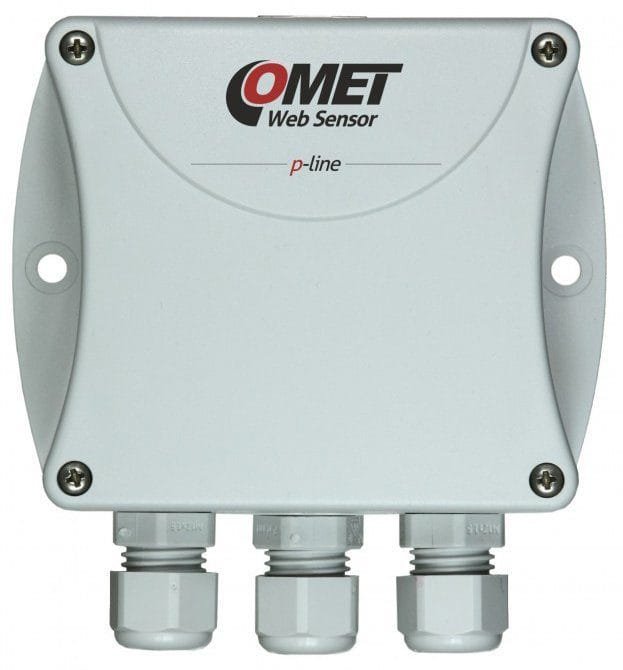

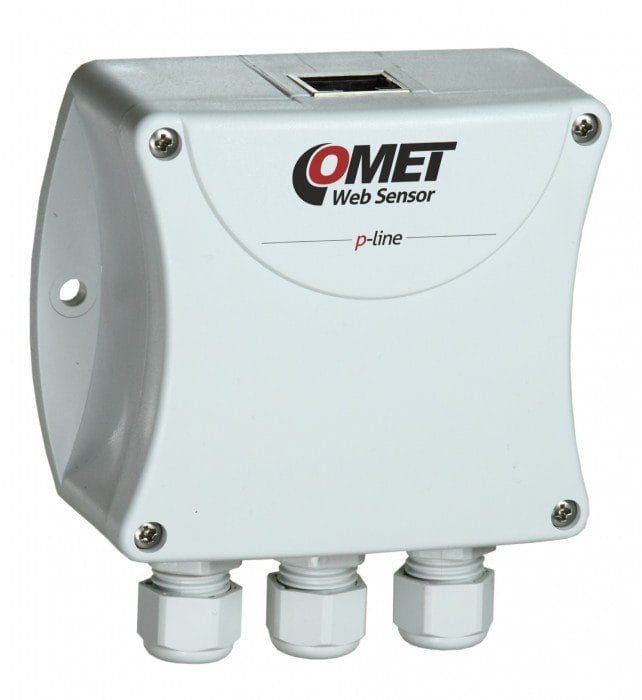

Comet P2520 – Web Sensor, Two Channel Remote 0-20mA Inputs

• Two-channel 0-20mA
• Ethernet interface
• The measured current (0-20mA or 4-20mA) can be converted to the physical quantity that is measured by the connected sensor
• The converter is galvanically isolated from the Ethernet communication lines, current inputs and power supply are not galvanically isolated.
• The instrument may send also a warning message if the measured value exceeds the adjusted limit

Converter Web Sensor P2520 is designed for the connection of two sensors with current output into Ethernet network. The measured current (0-20mA or 4-20mA) can be converted to the physical quantity that is measured by the connected sensor. The converter is galvanically isolated from the Ethernet communication lines, current inputs and power supply are not galvanically isolated.

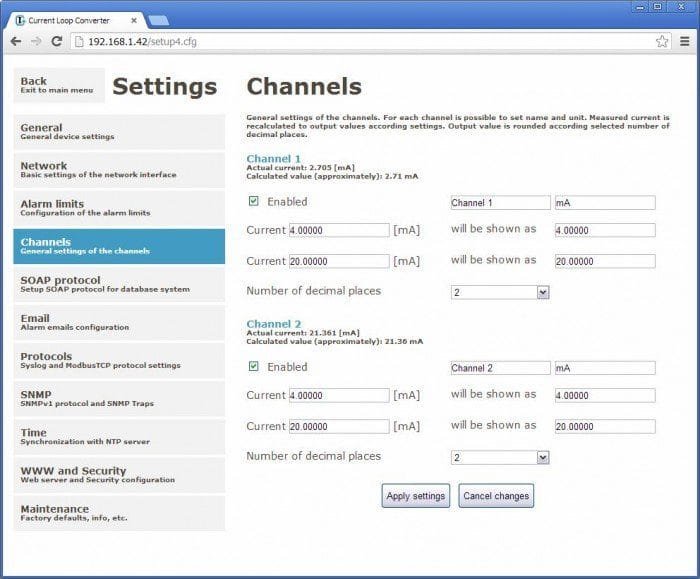

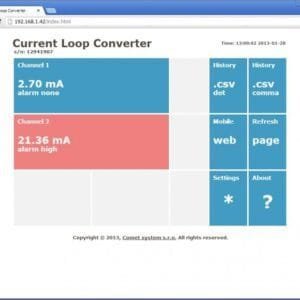

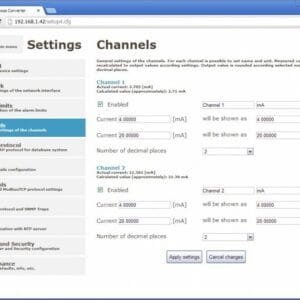

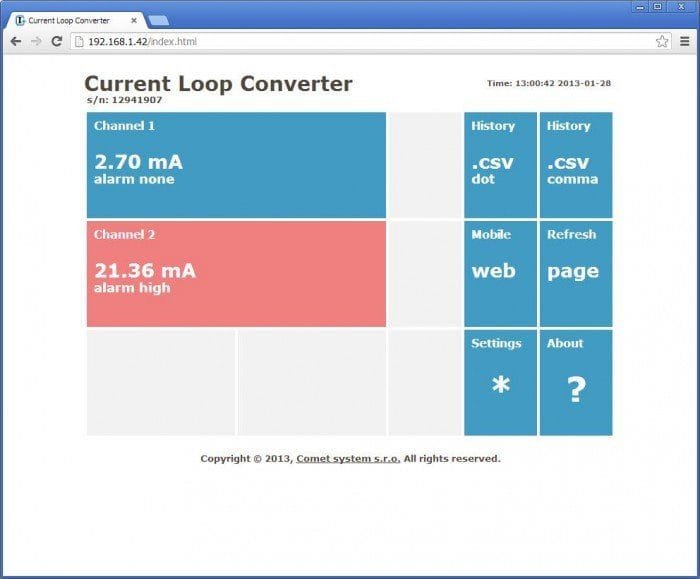

Measured values can be read using an Ethernet connection. The following formats of Ethernet communication are supported: www pages with user-design possibility, Modbus TCP protocol, SNMPv1 protocol, SOAP protocol, and XML. The instrument may send also a warning message if the measured value exceeds adjusted limit. The messages can be sent up to 3 e-mail addresses or to Syslog server and can be sent by SNMP Trap too. The alarm states are also displayed on the websites. The device setup can be made by the TSensor software.

Applications

• Server Rooms Monitoring
• Museums, archives, galleries
• Building HVAC Management
• Factories and Manufacturing
• Warehouses
• Air-Conditioned Room
• Home Automation

• Comet Database
• Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Sensors.
• T-Sensor Software
• Free configuration utility for COMET sensor.
• SensorReader software
• Basic data acquisition utility for COMET Sensors. Software is free for download.
