Comet T0118 – Interior Temperature Transmitter with 4-20mA Output

• T0118 Interior Temperature Transmitter with 4-20mA Output
• It is designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets
• Large dual line LCD is possible to switch off
• For use in exacting interiors in building energy management and HVAC systems
• Temperature transmitter is specially designed
• Computerized design ensures long term stability and fails indication

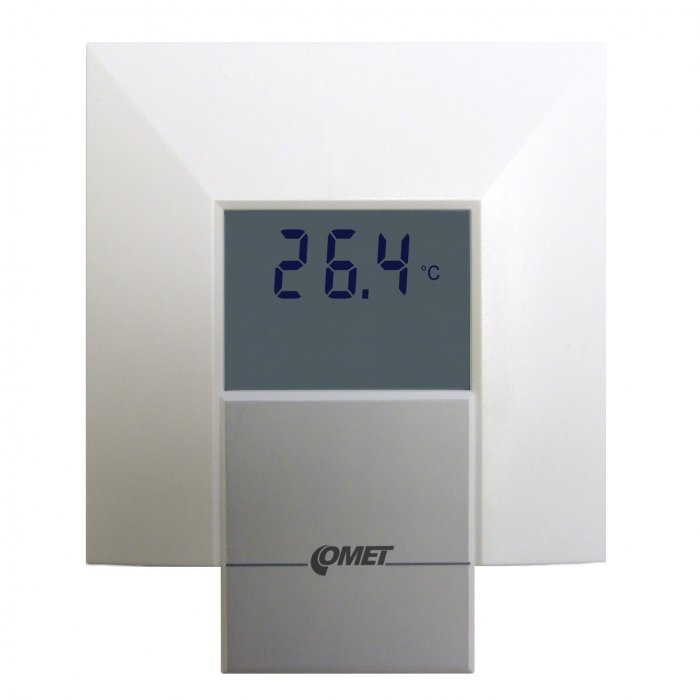

Ambient temperature transmitter for Indoor use. Temperature transmitter is specially designed for use in exacting interiors in building energy management and HVAC systems. It is designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets. Large dual line LCD is possible to switch off. Computerized design ensures long-term stability and fails indication. Transmitter is designed for use in a non-aggressive environment.

Programmable transmitters with 4-20 mA or 0-10 V output are designed to measure temperature, relative humidity, and barometric pressure in exacting interiors in building energy management and HVAC systems.

Digital conception with microprocessor allows determining the other computed humidity values, like dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy. Measured and calculated values are displayed on a two-line LCD display. Using TSensor software can be for each output assigned any measured or computed value or selected the measurement range. To connect to the PC is using USB adapter SP003 (optional accessories).

Transmitters are designed for easy installation on ordinary KU68 wiring boxes using two enclosed mounting screws.

APPLICATIONS – measuring and control of air temperature at:

• Building HVAC management
• Building HVAC automation
• Warehouses
• Manufacturers
• Museums, archives, galleries
• Air-conditioned rooms

Output is adjusted to the maximum temperature range from the manufacturer. Free configuration program TSensor for transmitter adjustment is ready to download anytime. If a different adjustment of output temperature range is required, please specify a required range in the order. Adjustment is free of charge.

Ordering Example: Thermometer T0118, output 0 to +30°C
