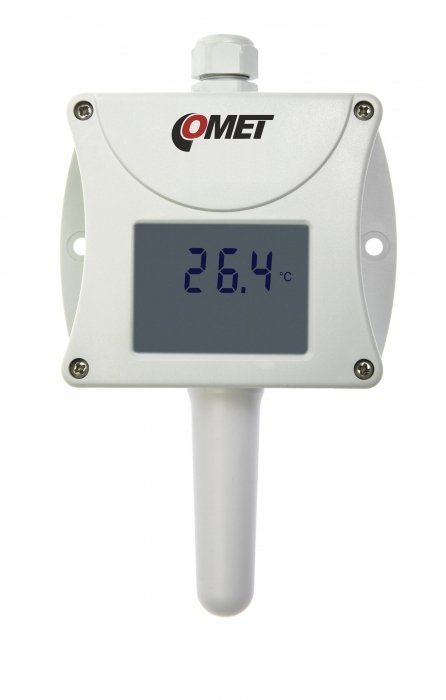

Comet T0310 – Temperature Transmitter with RS232 Output

• T0310 Ambient Temperature Transmitter Probe with RS232 Output
• Computerized design ensures maximum long term stability and fails indication
• Degrees Celsius and Fahrenheit are user selectable
• Display is possible to switch off
• Measured temperature values are converted to RS232 serial output
• Large dual line LCD is an advantage

Measured temperature values are converted to RS232 serial output.

Serial output RS232 – transmitter works with ModBus RTU communication protocol or with Advantech ADAM compatible protocol. Protocol is user selectable in special configuration mode by means of the PC. Serial link enables to read actual readings and modify transmitter configuration. Instrument works always in slave mode, i.e. responds only to master device query. Transmitters have the address space available from 1 to 255. Communication speed is 110 to 115200Bd.

Ambient temperature transmitter. Outdoor, indoor use.

Temperature transmitter is built in a durable watertight case. Degrees Celsius and Fahrenheit are user selectable. Large dual line LCD is an advantage. Display is possible to switch off. Computerized design ensures maximum long-term stability and fails indication.

Applications

• Building HVAC management
• Building HVAC automation
• Warehouses
• Glasshouses
• Manufacturers
• Museums, archives, galleries
• Air-conditioned rooms
• Weather stations

• Comet Database
• Complex solution for data acquisition and analyzing. Easy to use and high flexible database software for Comet Transmitters and Regulators.
• Sensor RS485/232 Utility
• allows communication of sensors with RS485/RS232 output and sending data to Comet Database.
• T-Sensor Software
• Free configuration utility for Comet Transmitters and Regulators.
• Sensor Reader Software
• Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.
