Comet T6641 – WebSensor with PoE, Remote Temperature, Humidity, CO2 Concentration with Ethernet Interface
18 people are viewing this product right now
$2,101.00
Shipping calculated at checkout.
Estimated delivery:5 days
Temperature + relative humidity + CO2 WebSensor with PoE; external sensor with cable 1 meter, range 0 to 2.000ppm
- Measured values: carbon dioxide, temperature, humidity
- CO2 measurement range: 0 to 10,000 ppm
- Temperature measurement range: -30 to +105 °C
- Humidity measurement range: 5 to 95 % RH
- Output: Ethernet

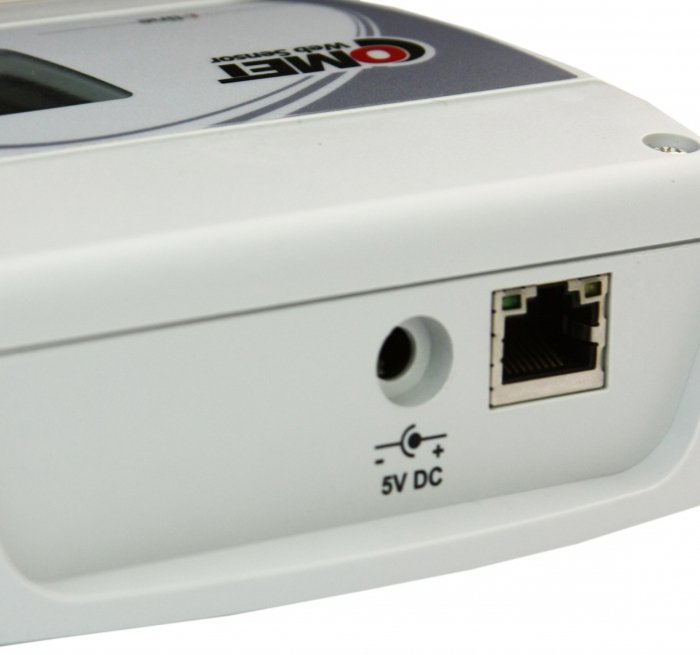

- Power: Power over Ethernet according to IEEE 802.3af or 5Vdc
- Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML
- Alarm protocols: E-mail, SNMP Trap, Syslog
- Applications include lab storage, production facilities, server rooms, and much more
- Traceable calibration certificate
Guarantee Safe and Secure Payment Checkout
Description
Comet T6641
- Measured values: carbon dioxide, temperature, humidity
- CO2 measurement range: 0 to 10,000 ppm
- Temperature measurement range: -30 to +105 °C
- Humidity measurement range: 5 to 95 % RH
- Output: Ethernet
WebSensor with PoE, Remote Temperature, Humidity, CO2 Concentration with Ethernet Interface
Premium Web Sensors with Ethernet connection are designed for the accurate measurement of temperature, relative humidity, CO2, and barometric pressure of air in non-aggressive environments.

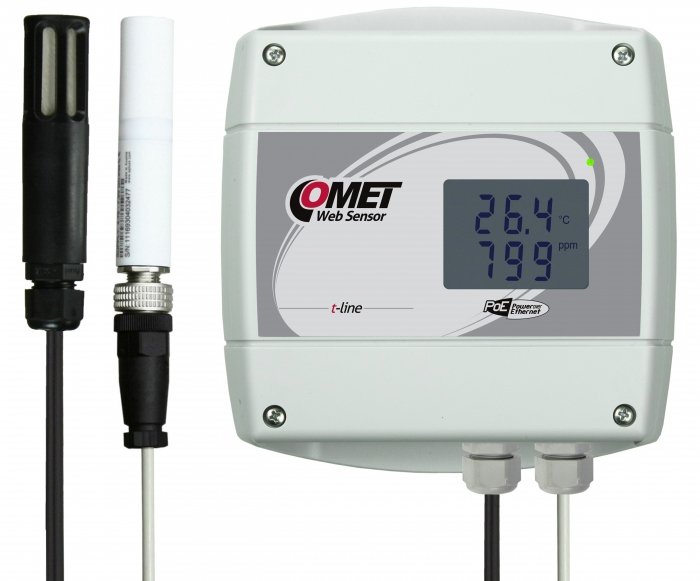

The T6641 is a t-line Web sensor for measuring temperature, humidity, and CO2 with a remote alarm. The T6641 uses temperature, humidity, and CO2 cable probes. The Web Sensor is equipped with an LCD display for showing current measured values. The Web Sensor can be integrated into the control systems of different manufacturers by connecting directly to a computer network using SNMP, MODBUS TCP, SOAP, syslog. The device setup can be made by the TSensor software which can be downloaded for free from the manufacturer’s website. One advantage of Web Sensors is the configuration of settings via web interface.
Upper and lower limits can be set for the alarm, which can be indicated via email or by color LED.
The visual indication of CO2 concentration is provided by three-color LED:
- LED shines green – CO2 concentration 0 to 1,000 ppm
- LED shines yellow – CO2 concentration 1,001 to 1,200 ppm
- LED shines red – CO2 concentration 1,201 ppm and more
A multiple point CO2 and temperature adjustment procedures lead to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The measurement principle is based on the NDIR principle with dual-wavelength, which automatically compensates for the aging of the sensor. The sensor is resistant against the pollution and provides maintenance-free operation and excellent long-term stability.
Processing and analysis of measured data:
- Online in COMET Cloud
- COMET Database software
- Integration into 3-party systems
Temperature Transmitters template | |
|---|---|
| Enclosure Type (Temp Xmitter) | Process |
| Display (Xmitters) | Yes |
| Temperature Probe Types | Other |
Product General Attributes | |
| Unique Features | Temperature measurement range: -30 to +105 °C Temperature measurement accuracy: ±0.4 °C Humidity measurement range: 5 to 95% RH Humidity measurement accuracy: ±2.5% RH Dew point measurement range: -60 to +80 °C Dew point measurement accuracy: ±1.6°C at ambient temperature T<25°C and RH>30% CO2 measurement range: 0 to 10,000 ppm CO2 measurement accuracy: ±(110ppm +5% from reading) at 25°C and 1013hPa |
| Warranty | 3 YEARS |
| Interfaces I/O | LAN / Ethernet |
| IP Rating | IP30, IP40, IP65 |
| Product Weight | 0.33 LBS |
| Product Height | 117 MM (4.61 IN) |
| Product Length | 45 MM (1.77 IN) |
| Product Width | 136 MM (5.35 IN) |
| Shipping Weight | 0.38 LBS |
| Country of Origin | Czech Republic |
You must be logged in to post a review.
Manuals/Guides
| Weight | 0.33 lbs |
|---|---|
| Dimensions | 45 × 136 × 117 in |
